36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine

36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine

Brand Name:	Masing Motor
Model Number:	MS-PG36-555
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

16949,RohS,CE,ISO

Product Name:

DC Reduction Planetary Motor 36MM

Shaft Diameter:

φ8mm Or Customized

Motor Size:

φ36mm*L50mm,φ36mm*L57mm

Gearbox Efficiency:

65%-90%

Shaft Type:

Round ,D-cut ,Flat Or Customized

Direction Of Motor:

CW&CCW Available

Rated Power:

1w-100w

Rated Torque:

0.1Nm-10Nm

Gearbox Diameter:

φ 36mm Planetary Gearbox

Rated Voltage:

DC 6V-30V

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Product Description

DC Reduction Planetary Motor 36MM Title:

36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine

DC Reduction Planetary Motor 36MM Description:

Rated Voltage:6v-30v DC Brushed Motor
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
Rated Speed :2rpm -1000rpm
Rated Torque:0.1NM-10NM
Motor Type:Brushless motor or Brushed motor
Motor Model:Rs-545/rs-540/rs-550/rs-555
Motor size :Diameter 35.7mm ,Lenght :40mm ,Diameter 35.7mm ,Lenght :50mm,Diameter 35.7mm ,Lenght :57mm
Direction of motor :CW/CCW available
Motor Power:1W-100W High Power
Gearbox diameter :φ36mm
Gearbox type :Metal Planetary gear box and Plastic gearbox
Gears Material:Plastic ,Copper ,steel,Powder metallurgy or customized
Working temperature:-40~+60°c
Life time:500H-3000H
Certification:16949,CE,Rohs,ISO
High Efficiency: The motor boasts an efficiency of 90% to 65%,
Applications :Robotics Automation, Smart Home, Electric Curtain,office supplies, power tools, medical equipment,

precision instruments, automotive electronics etc
We can provide samples for your test.
Every product must pass quality inspection before shipment

Key Attributes:

Speed(RPM)

2rpm-1000rpm or customized

Voltage

DC6.0-30V

Efficiency

90%-65%

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MS-PG36-550

Use

office supplies, power tools, medical equipment,

precision instruments, automotive electronics,

Robotics Automation, Smart Home, Electric Curtain, Medical Imaging Equipment,Manufacturing Plant

Shaft diameter

φ8mm or φ10mm or customized

Torque

0.1NM-10NM

Construction

Permanent Magnet

Commutation

Brushed

Shaft Type

Round,Flat,D-cut ,with a hole,Threaded shaft,Threaded holeor or customized

Direction of motor

CW/CCW available

Feature

High Efficiency 90%-65%

Keywords

12v dc planetary gear motor

Diameter Size

Brush Motor φ36mm*L40mm,φ36mm*L50mm,φ36mm*L57mm,

Weight

400g/450g

Noise

Low Noise Level ,≤55DB

MOQ

1000Pcs

Customized support

OEM, ODM, OBM

Dimension box

φ36mm

Life Expectancy

500H-3000H

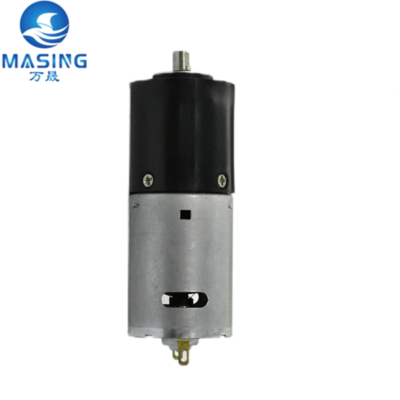

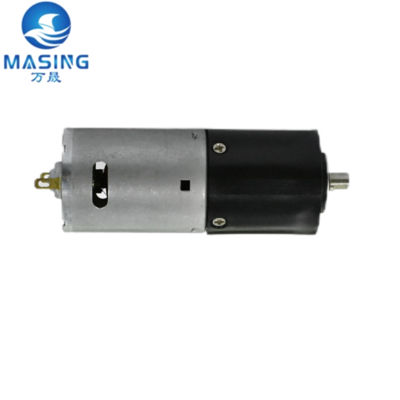

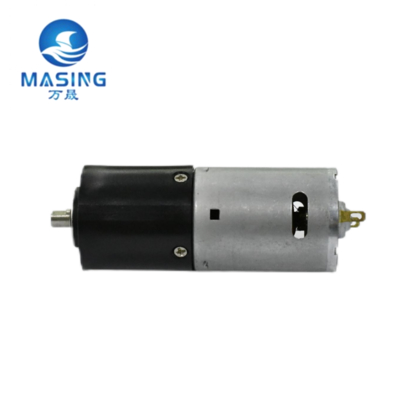

DC Reduction Planetary Motor 36MM Product Photo:

36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine 0

DC Reduction Planetary Motor 36MM Product Spec:

RS-550/555 Brushed Motor DC Planetary DC GEAR MOTOR Typical Applications

Robotics Automation, Smart Home, Electric Curtain,Robot Vacuum Cleaner,Cosmetic instrument, Smart Home, Medical Imaging Equipment,Manufacturing Plant Robots,,Car flip screen,Intelligent Trash Can ,Power Tools, Home Application, Personal Care,

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

NOTE:The left side of redline area can continous work

36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine 2

36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine 3

Gear grade	1	2	3	4
Gear ratio of the reducer(K)	3.7,5.2	14,19,27	54,71,100,139	189,264,369,515,721
Gearbox Length(mm)	27.5	35.5	43.5	51.5
Rated Torque(kg.cm)	3	6	9	17
Stall Torque(kg.cm)	6	10	20	35
Efficiency(%)	90%	81%	73%	65%

Model number	Rated volt.	No load		Load				Stall
		Speed	Current	Speed	Current	Torque	Powerr	Current	Torque
		rpm	mA(max)	rpm	mA(max)	Kgf.cm	w	mA(min)	Kgf.cm
MS-36PGM5550126000- 5.2K	12V	1153	650	960	3000	1.2	11.8	10620	6.3
MS-36PGM5550128000- 4K	12V	571	900	465	3500	4	19.1	11550	19
MS-36PGM5550126000- 27K	12V	223	400	175	1600	4.2	7.5	5350	20
MS-36PGM5550126000- 51K	12V	117	680	85	2680	13	11.3	8350	60
MS-36PGM5550126000- 71K	12V	84	500	70	2400	14	10.1	8380	71
MS-36PGM5550126000- 99.5K	12V	60	450	48	2000	16	7.9	6300	78
MS-36PGM5550124500- 264K	12V	17	400	12	1500	28	3.4	2800	104
MS-36PGM5550126000- 721K	12V	8	400	6	3200	160	9.9	9000	630
MS-36PGM5550246000- 3.7K	24V	1621	500	1216	2000	1.5	18.7	8000	7.5
MS-36PGM5550246000- 5.2K	24V	1153	400	1016	1600	1.25	13	5380	8

Packaging and delivery:

Packaging Details

Strong Carton 100pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

400g/450g

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$20/piece or Negotiable

Certifications:

Factory Show:

Product Classification:

Applications:

Medical equipment	sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines	Intelligent robot,Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment	Electric toothbrush,Electric tool,Electric toy car,Electric curtain.
Smart Home	Intelligent window opener ,vacuum cleaner, Smart coffee machine,hair drier,Fascia gun,fan,air cleaner,Hair removal device,door lock,Intelligent door lock.
Food and Beverage	Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics	Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot.

36 Planetary Gearbox Motor DC Reduction Planetary Motor 36MM Metal Gearbox DC Gear Motor for Coffee Machine 9

FAQ

Q1:What's the price?

A1:We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.

Q2:What's the MOQ?

A2: We try to meet every client's requests and don't want to disappoint our clients.So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.

Q3: What's the delivery time?

A3:At the first we have an schedule,the earlier you place order,the fater we finish the production.

In the slack season,we can make sure the delivery time is by one month.

In the busy season,we need more than one month if your quantity is large.

The most important,we can provide free overtime prodution if your order is really urgent.

Q4: Can you send some samples before the order?
A4:Yes of course,we must send the sample to confirm the quality with you first.UPS,TNT,FEDEX or DHL are all available.

Q5:Can you make our logo on the products?

A5:Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.
