36mm 12V 24V Brushless DC Planetary Gear Motor With Planetary Gear Box

Name: 36mm 12V 24V Brushless DC Planetary Gear Motor With Planetary Gear Box
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MSGM36P545
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MSGM36P545
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

16949,ISO CE ROHS

Product Name:

Brushless Dc Planetary Gear Motor

Shaft Type:

With A Hole ,Flat ,D-Cut Or Round ,Threaded Hole, Threaded Shaft

Efficiency:

High Efficiency

Speed:

5rpm -1000rpm Or Customized

Gear Box Diameter:

φ36mm Metal Gearbox

Shaft Diameter:

φ8mm

Voltage:

6v-30v

Motor Type:

BL545 ,BL540,BL550,BL555

Gearbox Material:

Rohs Metal

Supported:

OEM Or ODM

Direction:

Cw &ccw

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Highlight:

12V Brushless Planetary Gear Motor

24V Brushless DC Planetary Gear Motor

12V DC Planetary Gear Motor

Product Description

36mm 12V 24V Brushless DC Planetary Gear Motor With Planetary Gear Box

Product Overview

Model: PGM36-545 | Product Name: Brushless DC Planetary Reduction DC Gear Motor

This high-performance brushless DC planetary gear motor features a compact φ36mm diameter design, delivering reliable operation with low noise and high torque for demanding industrial applications.

Key Specifications

Speed Range: 5rpm - 1000rpm (Customizable)
Voltage: DC 6V - 30V
Power: 1W - 100W
Torque: 1KGf.cm - 50KGf.cm
Gearbox Size: φ36mm diameter
Compatible Motors: BLDC540, BLDC545, BLDC550, BLDC555
Motor Direction: CW & CCW available
Working Temperature: -40°C to +60°C
Noise Level: ≤60DB

Technical Features

Signal Output: FG Signal
Speed Control: PWM Control
Motor Life: 3000H (Oi Bearing) / ~5000H (Ball Bearing)
Protection: Locked Rotor Protection & Overcurrent Protection
Construction: Permanent Magnet
Enclosure: Totally Enclosed
Efficiency: 90%-58%

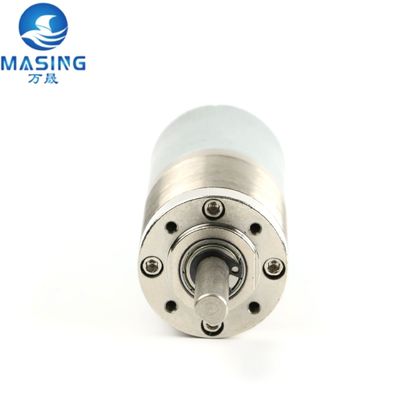

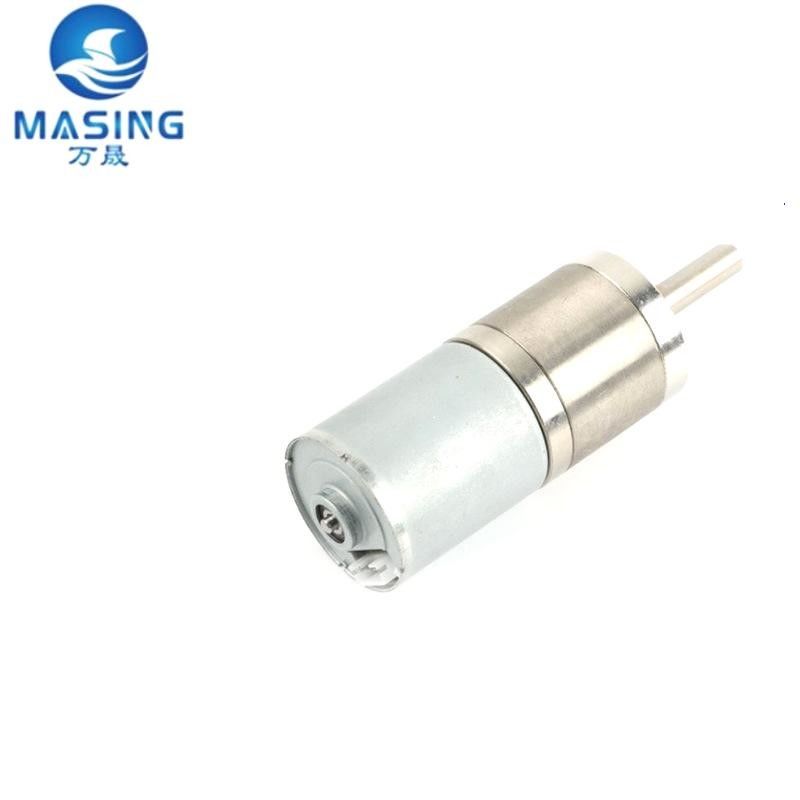

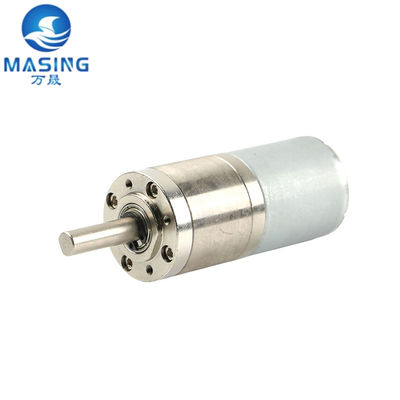

Product Images

Performance Specifications

DC 12.0V Specifications

RATIO	1:5.2	1:19	1:27	1:51	1:100	1:139	1:264
No-load current(mA)	≤220	≤220	≤220	≤220	≤220	≤220	≤220
No-load speed(rpm)	480	130	92	49	25	18	9.5
Rated torque(Kg.cm)	1.0	1.5	2.5	5.0	10.0	15.0	30.0
Rated speed(rpm)	240	70.00	75.00	40.00	20.0	14.0	7.5
Rated current(A)	≤1	≤1	≤1	≤1	≤1	≤1	≤1
Stall torque(kg.cm)	≥2	≥13	7	11	22	35	50
Stall current(A)	≤3	≤3	≤3	≤3	≤3	≤3	≤3

DC 24.0V Specifications

RATIO	1:5.2	1:19	1:27	1:51	1:100	1:139	1:264
No-load current(mA)	≤230	≤230	≤230	≤230	≤230	≤230	≤230
No-load speed(rpm)	960	260	185	98	50	36	19
Rated torque(Kg.cm)	2.00	5.0	5.0	10.0	20.0	30.0	50.0
Rated speed (rpm)	480	165	150	80	40	28	15
Rated current(A)	≤2.8	≤2.0	≤1.5	≤1.5	≤1.5	≤1.5	≤1.3
Stall torque(kg.cm)	≥4.5	≥13	≥15	≥22	≥45*	≥45*	≥45*
Stall current(A)	≤6.5	≤6.5	≤6.5	≤6.5	≤6.5	≤6.5	≤6.5

* Cannot exceed 6 seconds

Product Attributes

Brand Name

Masing Motor

Model Number

MSGM36P545

Place of Origin

Guangdong, China

MOQ

1000 Pcs

Gearbox Material

Rohs Metal Gearbox

Supply Ability

100,000 Pieces per Month

Applications

Robotics, Intelligent Devices, Home Appliances, Vacuum Cleaners, Medical Equipment, SMART HOME, Electric Bicycle Locks, Cosmetic Instruments, Automotive Electronics, Security Devices, Production Automation, and more.

Packaging & Delivery

Packaging: Strong Carton (400pcs/box) or customized
Port: Shenzhen/Guangzhou/Shanghai
Package Size: 37×27×24cm
Gross Weight: 500g per unit

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples & Certifications

Maximum sample quantity: 1 piece | Sample price: $25/piece

Frequently Asked Questions

Q1: Are you a factory?

A1: Yes, we are a factory specializing in micro geared motors, brushless DC motors, DC motors, and DC planetary gear boxes.

Q2: Is it possible for you to develop new motors if we provide tooling cost?

A2: Yes. Please share detailed requirements regarding performance, size, annual quantity, and target price for evaluation.

Q3: Could you send me free samples?

A3: Yes, and we can refund your sample fee when you place an order.

Q4: What is the quality of the planetary reducer?

A4: Our gear motors are exported worldwide and receive positive feedback for reliable operation, low noise, and high torque performance.

Q5: Can you send me a price list?

A5: All motors are customized based on requirements like lifetime, noise, voltage, and shaft specifications. Please share your detailed requirements and annual quantity for pricing.

Q6: How can you guarantee the quality?

A6: We perform 100% finished product inspection before delivery with no defective products returned.

Q7: How long is the delivery time?

A7: Delivery time depends on order quantity, typically 15-25 working days.
