Plastic DC Planetary Gear Motor N20 Worm Gear Motor OEM ODM Available

Name: Plastic DC Planetary Gear Motor N20 Worm Gear Motor OEM ODM Available
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MS12PN20
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MS12PN20
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

16949,RohS,CE,ISO

Product Name:

N20 Worm Plastic Dc Gear Motor

Shaft Material:

Plastic Or Customized

Motor Diameter:

φ12mm

Voltage:

DC1.2V-12V

Direction Of Motor:

CW & CCW Available

Gearbox Material:

φ12mm Planetary Gearbox

Gears Material:

Plastic Gears Or Customized

Motor Type:

FF-N20 Dc Motor

Brush Type:

Metal Brush Or Carbon Brush

Life Time:

500H-1000H

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Highlight:

Plastic DC Planetary Gear Motor

DC Planetary Gear Motor OEM

N20 Worm Gear Motor

Product Description

Plastic DC Planetary Gear Motor N20 Worm Gear Motor

OEM ODM Available

Product Overview

N20 Worm Gear Motor Micro Planetary Gear Motor for Auto Sensing Vehicle Wireless Charging Bracket S5 Magic Clip

High Efficiency and Performance: 1.2v-12v DC Spur Geared Motor offers efficiency of IE 1
No-load Speed: 10-500RPM or Customized
Rotating speed is constant and can be made as required
Motor type: FF-N20, FF-N10, FF-N30
Suitable for small diameter, low noise and big torque applications
Brush Type: Metal brush or Carbon brush
Gearbox material: Plastic
Gear material: High precision plastic gear
Motor default direction: CW & CCW available
Gearbox diameter: φ12mm Gearbox
Can be matched with wheel, one shaft one wheel or one motor, one wheel
Certificate: 16949, CE, ROHS, ISO
Working temperature: -40~+60°C
Low Noise and High Torque: With torque of 0.01-1kg.cm, operates at low noise level
Usage: door-lock, robots, SMART HOME, Electric Bicycle Lock, Cosmetic Instrument
We can provide samples for testing
Product quality guaranteed, 100% of all goods pass quality inspection before shipment
Support service: OEM & ODM available

Technical Specifications

Speed (RPM): 10-500rpm

Continuous Current (A): 10mA-200mA

Gearbox Efficiency: 55%-85%

Warranty: Others

Place of Origin: Guangdong, China

Brand Name: Masing Motor

Model Number: MS12PN20

Use: Auto Sensing Vehicle Wireless Charging Bracket S5 Magic Clip, door-lock, robots, SMART HOME, Electric Bicycle Lock, Cosmetic Instrument, toys

Motor Type: FF-N20/FF-N20/FF-N30

Rated Torque: 0.01kgf.cm-1kgf.cm

Gearbox Diameter: φ12mm

Commutation: Brush Motor

Direction of motor: CW & CCW available

Gears Material: High precision plastic gear

Shaft material: Plastic

Keywords: 3V Mini Worm gear dc motor

Brush type: Metal brush or Carbon brush

Certificates: 16949, CE, Rohs, ISO

Noise: low noise level ≤55DB

MOQ: 1000Pcs

Voltage range: 1.2v-12v

Color: Customer's Request

Gearbox type: Plastic planetary gearbox

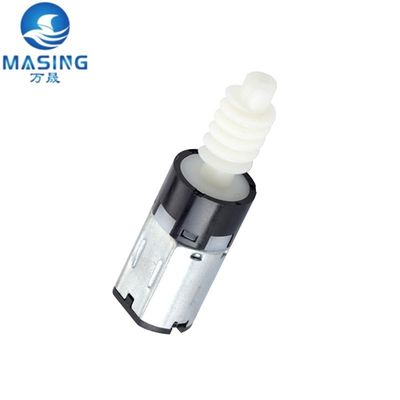

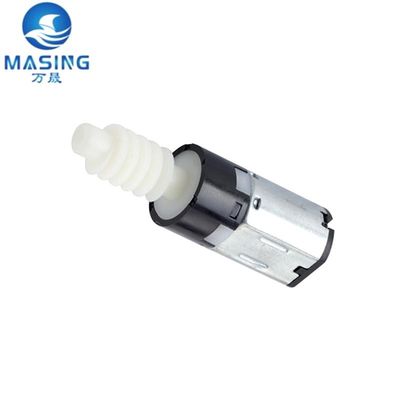

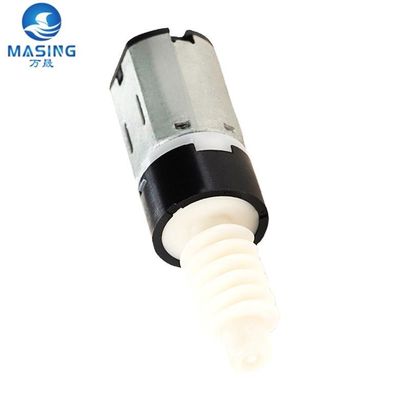

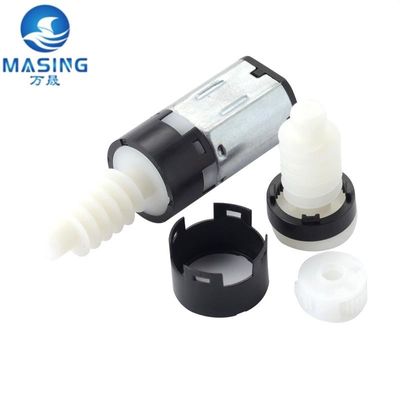

Product Images

Technical Specifications Table

12mm DC Plastic Planetary Gear Motor Typical Applications: Auto Sensing Vehicle Wireless Charging Bracket S5 Magic Clip, door-lock, robots, SMART HOME, Electric Bicycle Lock, Cosmetic Instrument, toys

Voltage, rated torque, speed, current, power and shaft size can be customized as requirement.

Model	Rated Voltage (VDC)	No-Load Current (mA MAX)	Load Current (mA MAX)	Output Speed (rpm)	Use Torque (g-cm)	Gear Ratio	Gear Box Length (mm)	Total Length (mm)
MS12PN20-4-MD18003-1-M	3.0	50	150	2800	8.0	4	6.8	22.0
MS12PN20-6-MD18003-1-M	3.0	50	150	1866	12.0	6
MS12PN20-16-MD18003-1-M	3.0	50	150	700	30.3	16	10.6	25.8
MS12PN20-24-MD18003-1-M	3.0	50	150	466	45.5	24
MS12PN20-36-MD18003-1-M	3.0	50	150	311	68.2	36
MS12PN20-64-MD18003-1-M	3.0	55	160	175	115.2	64	14.4	29.6
MS12PN20-96-MD18003-1-M	3.0	55	160	116	172.8	96
MS12PN20-144-MD18003-1-M	3.0	55	160	77	259.2	144
MS12PN20-216-MD18003-1-M	3.0	55	160	51.8	388.9	216
MS12PN20-256-MD18003-1-M	3.0	60	200	43.7	437.8	256	18.2	33.4
MS12PN20-384-MD18003-1M	3.0	60	200	29.1	656.8	384
MS12PN20-576-MD18003-1-M	3.0	60	200	19.4	985.2	576
MS12PN20-864-MD18003-1-M	3.0	60	200	12.9	1477.8	864
MS12PN20-1296-MD18003-1-M	3.0	60	200	8.6	2216.7	1296

Packaging & Delivery

Packaging Details: Strong Carton 1000pcs/box, or as you wish

Port: Shenzhen/Guangzhou/Shanghai

Selling Units: Single item

Single package size: 37X27X24cm

Single gross weight: 22g

Supply Capacity

Supply Ability: 100,000 Piece/Pieces per Month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples

Maximum order quantity: 1 piece

Sample price: $3/piece or Negotiable

Certifications

Factory Show

Product Classification

Applications

Driverless, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Smart home, door-lock, robots, Electric Bicycle Lock, Cosmetic Instrument.

Medical equipment	sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer
Business Machines	intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen
Electric powered equipment	Electric toothbrush, Electric tool, adult erotica products, Electric toy car, Electric curtain
Smart Home	Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock
Food and Beverage	Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers
Robotics	Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot

Frequently Asked Questions

Q1: Can you send me your price list?

A1: Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquiries to make sure you can get the price in time.

Q2: About customized gearbox?

A2: As a gearbox manufacturer with R & D capability, we support customers to provide us with gearbox shape, required reduction ratio and output speed. We will develop customized products for you. Or you can provide your own R & D products, and we will optimize the structure, production and assembly for you.

Q3: How can we get samples?

A3: Normally ship samples by express (DHL/UPS/FEDEX/TNT) after we get your address in 1 day.

Q4: How can you guarantee the quality?

A4: We have 100% finished product inspection before delivery and no defective products returned.

Q5: Do you have certificates for the motors?

A5: Yes, we have RoHS, ISO, REACH, CE, 16949 etc. If you have the other certificates requirement, we can apply it.

Q6: What is the advantage about your company?

A6: a. Advanced manufacturing equipment b. More than 15 years motor design, manufacturing experience c. Flexible customization of OEM/ODM orders d. Advanced automated production equipment e. ISO9001, ISO14001, TS16949 system certification
