Low Noise DC Planetary Gear Motor High Speed 6mm Coreless Micro Motor

Low Noise DC Planetary Gear Motor High Speed 6mm Coreless Micro Motor

Brand Name:	Masing Motor
Model Number:	MS06PM10
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

16949,ROHS,CE,ISO

Product Name:

Dc Motor Planetary Gearbox 6mm

Shaft Type:

Flat ,D-Cut Or Round Or Customized

Efficiency:

56%-90%

Speed:

Customized

Gearbox Diameter:

φ6mm

Gearbox Type:

Micro Planetary Gearbox

Gear Material:

Precision Plastic Gear

Motor Type:

6mm Coreless DC Motor

Keywords:

6mm Mini Plastic Planetary Dc Gearbox Motor

Direction Of Motor:

CW&CCW

Noise:

Low Noise

Gearbox Material:

Plastic Gearbox

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Highlight:

High Speed 6mm Coreless Motor

Low Noise DC Planetary Gear Motor

6mm Coreless Micro Motor

Product Description

Low Noise DC Planetary Gear Motor High Speed 6mm Coreless Micro Motor

Product Overview

6mm Micro Coreless Planetary Gear Motor designed for eye massager medical vision correction products and various precision applications. This high-performance motor combines efficiency with quiet operation.

High Efficiency: 70% efficiency rating
Rated Speed: 100-3000 RPM (customizable)
Voltage Range: DC 1.2V-12V
Gearbox Diameter: φ6mm (Plastic material)
Shaft Diameter: φ2mm (Plastic material)
Motor Size: φ6×18.6mm coreless planetary gear DC motor
Working Temperature: -40°C to +60°C
Low Noise: ≤55DB operation
High Torque: 0.5-2.0 kg.cm

Technical Specifications

Model	Voltage (VDC)	Current (mA MAX)	Speed (rpm)	Output Torque (g-cm)	Gear Ratio	Gear Box Length (mm)	Total Length (mm)
MS06PM10-5.14-MD16001	3	230	6420	5	5.14	4.70	17.60
MS06PM10-26.45-MD16002	3	230	1200	27	26.45	7.05	19.90
MS06PM10-136.2-MD16003	3	230	242	120	136.02	9.40	22.25
MS06PM10-699.55-MD16004	3	230	46	180	699.55	11.75	24.70

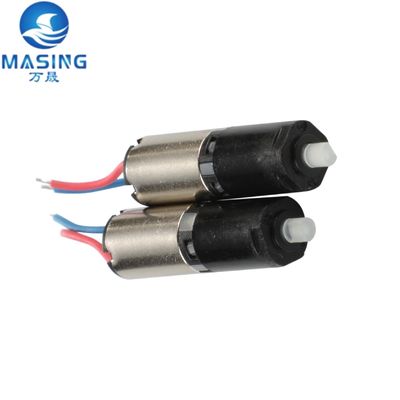

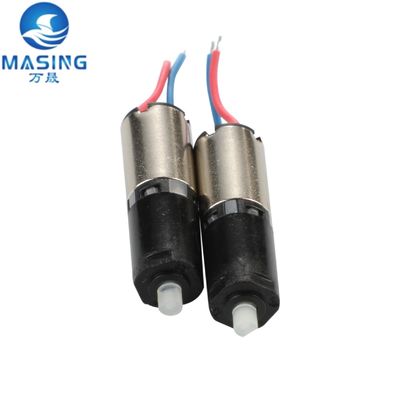

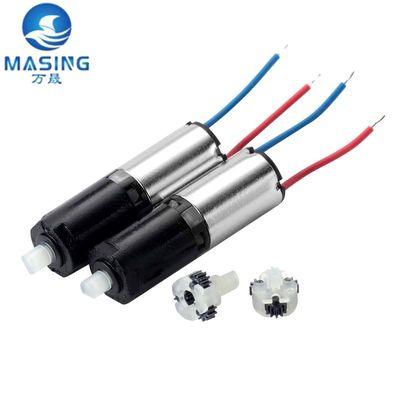

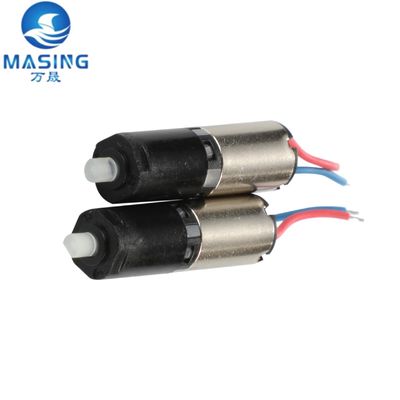

Product Images

Applications

Eye Massager Medical Vision Correction Products, door-lock systems, robots, SMART HOME devices, Electric Bicycle Locks, Cosmetic Instruments, Driverless technology, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication.

Packaging & Delivery

Packaging: Strong Carton 400pcs/box, or customized
Port: Shenzhen/Guangzhou/Shanghai
Selling Units: Single item
Package Size: 37×27×24cm
Gross Weight: 10.0kg
Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples & Certifications

Maximum sample quantity: 1 piece | Sample price: $5/piece or Negotiable

Frequently Asked Questions

Q1: Are you factory or trading company?

A1: Yes, we are factory. Main products include micro geared motors, brushless DC motors, DC motors and DC planetary gear boxes.

Q2: What's the price?

A2: We're a professional manufacturer. The exact price is based on clients' specifications, such as speed and voltage requirements.

Q3: What is the quality of the planetary reducer?

A3: Our gear motors are exported to Japan, Germany, USA, UK, Indonesia, Singapore and other countries. Customers report excellent operation, low noise and large torque.

Q4: How can you guarantee the quality?

A4: We conduct 100% finished product inspection before delivery with no defective products returned.

Q5: What's the MOQ?

A5: MOQ is flexible depending on product complexity and production season. Please contact our sales team for confirmation.

Q6: Can you make our logo on the products?

A6: Certainly. Logo customization is available as most of our products are customizable.
