2238 22mm Small DC Planetary Gear Motor 12V For Robots / 5G Product

2238 22mm Small DC Planetary Gear Motor 12V For Robots / 5G Product

Brand Name:	Masing Motor
Model Number:	MSGM22P2238
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ISO CE ROHS 16949

Product Name:

2238 Dc Planetary Gear Motor

Shaft Type:

Flat ,D-Cut Or Round Or Double D-cut

Efficiency:

High Efficiency

Speed:

60rpm

Gearbox Diameter:

φ22mm Metal Gearbox

Gearbox Type:

Planetary Gearbox φ22mm

Voltage:

6v-24v

Micro Motor:

2238 Dc Brushed Motor

Materail:

Metal Rohs

Reduction Ratio:

Customized

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Highlight:

DC Planetary Gear Motor 12V

2238 DC Planetary Gear Motor

Planetary Gear Motor 12VDC

Product Description

2238 22mm Small DC Planetary Gear Motor 12V For Robots / 5G Product

DC Planetary Gear Motor 2238 12V DC Motor 22mm Small Planetary Metal Gear Motor/Gear Reducer/Planetary Gearbox for Robots and 5G Product

Product Specifications

Model: PGM22-2238
Product Name: 2238 Brushed Planetary Reduction DC Motor
Rated Speed: 5rpm - 500RPM or customized
Rotating speed is constant and can be customized
Gearbox Size: 22mm diameter planetary gear
Certification: CE, RoHS, IOS9001, REACH, 16949
Suitable for small diameter, low noise and high torque applications
Motor default direction: CW & CCW available
Working temperature: -40°C to +60°C
Power: 4.5W Maximum torque: 19KG.cm
Motor type: carbon brush/Metal Brush

Technical Attributes

Speed (RPM): 2rpm-1000rpm
Continuous Current (A): Customized
Efficiency: IE 4
Brand Name: Masing Motor
Model Number: MSGM22P2238
Type: 2238 Gear DC Motor
Torque: 0.01-10kg.cm
Construction: Permanent Magnet
Commutation: 2238 Brush Motor
Protect Feature: Totally Enclosed
Gearbox Diameter: 22mm
Direction: CW & CCW
Noise: ≤55DB
Rated Power: Customized: 1W, 3W, 4.5W, 6W, etc.
Material: Metal RoHS
Motor type: 12v 24v dc planetary geared motor

Applications

Electric Sanitary Ware, Intelligent Electric, Aviation Model Field Machinery, Consumer Electronics, Automotive Electronics, Intelligent Machine Home Automation, Production Automation, Medical Equipment, Security Devices, door-lock, robots, SMART HOME, Electric Bicycle Lock, Cosmetic Instrument.

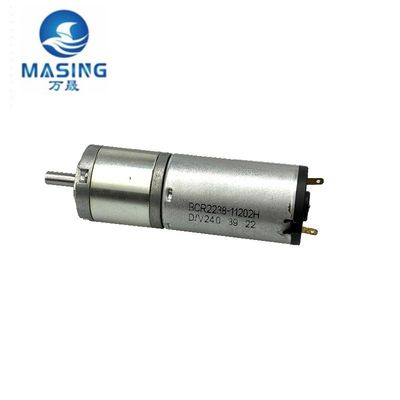

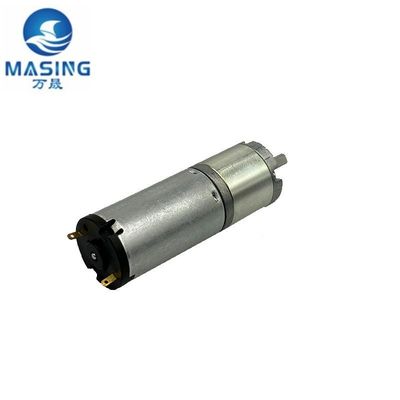

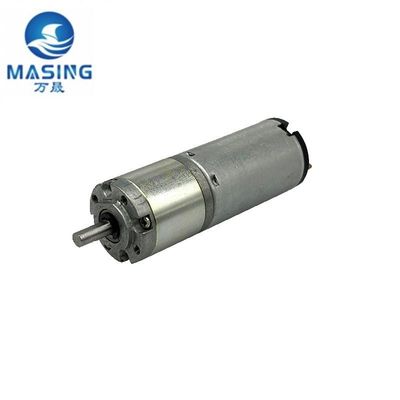

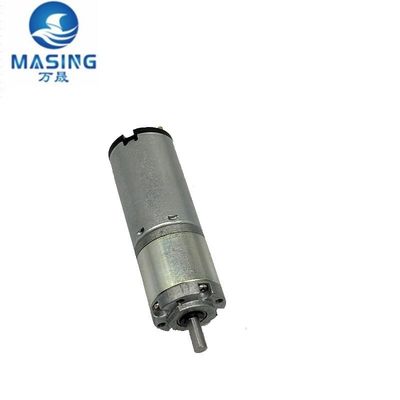

Product Photos

Product Specifications

Micro 22mm DC Planetary Gear Motor Typical Applications: door-lock, robots, SMART HOME, Electric Bicycle Lock, Cosmetic Instrument.

Voltage, rated torque, speed, current, power and shaft size can be customized as required.

Packaging and Delivery

Packaging Details: Strong Carton 400pcs/box, or as requested
Port: Shenzhen/Guangzhou/Shanghai
Selling Units: Single item
Single package size: 37X27X24cm
Single gross weight: 20.0kg

Supply Capacity

Supply Ability: 100,000 Piece/Pieces per Month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples

Maximum order quantity: 1 piece
Sample price: $15/piece

Certifications

Factory Show

Product Classification

Applications

Smart home, smart door locks, personal care, artificial intelligence, automobiles, model airplanes, adult products, security, small home appliances, models, power tools, communication equipment, medical devices, health care equipment, toys and fitness equipment and other products.

Frequently Asked Questions

Q1: Are you factory?

A1: Yes, we are factory. Main products include micro geared motor, brushless DC motor, DC motor and DC planetary gear box etc.

Q2: Can we test samples?

A2: Yes, we have R&D and Testing Center. Customized samples and freight are charged.

Q3: How to confirm the payment?

A3: We accept payment by T/T, PayPal. Other payment methods can also be accepted. Please contact us before using other payment methods. 30-50% deposit is available, with balance paid before shipping.

Q4: What is the quality of the planetary reducer?

A4: Our gear motors are sold to Japan, Germany, the United States, the United Kingdom, Indonesia, Singapore and other countries. Customers report they operate well, have low noise and large torque, which is exactly the product they are looking for.

Q5: About customized gearbox?

A5: As a gearbox manufacturer with R&D capability, we support customers to provide gearbox shape, required reduction ratio and output speed. We will develop customized products for you. We can also optimize structure, production and assembly for your R&D products.

Q6: How can you guarantee the quality?

A6: We have 100% finished product inspection before delivery and no defective products returned.

Q7: How long is the delivery?

A7: Delivery time depends on the quantity you order. Usually it takes 15-25 working days.
