12mm Planetary Dc Gear Motor N20 Micro 12v Dc Geared Brush Motor For Medical Equipment

12mm Planetary Dc Gear Motor N20 Micro 12v Dc Geared Brush Motor For Medical Equipment

Brand Name:	Masing Motor
Model Number:	MS-12PN20
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS,CE,ISO,16949

Keywords:

Micro 12v Dc Geared Brush Motor

Shaft Diameter:

φ3mm Or D-cut

Motor Type:

N10 N20 N30 DC Motor

Rated Toque:

0.05kgf.cm-2kgf.cm

Brush Type:

Metal Brush/Carton Brush

Gearbox Diameter:

φ12mm Gearbox

Gears:

Metal ,Powder Metallurgy,Plastic Gears

Rated Voltage:

DC1.2V-12V

Product Name:

N20 Dc Planetary Gear Motor

Direction Of Motor:

CW&CCW

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Highlight:

N20 Dc Geared Brush Motor

Micro DC Geared Brush Motor

Product Description

12mm Planetary DC Gear Motor N20 Micro 12V DC Geared Brush Motor

Product Overview

This 12mm planetary DC gear motor is a compact, high-performance solution designed for medical equipment and various precision applications. Featuring a miniature design with robust planetary gearbox, it delivers reliable torque and speed control in space-constrained environments.

Key Features

High efficiency (70%) for optimal performance
Compact size: φ12mm × 15mm
Wide voltage range: DC 1.5V-24V
Customizable speed: 10-300 RPM
Rated torque: 0.05-2.0 kgf.cm
Low noise operation: ≤55 dB
Totally enclosed construction for protection
Bidirectional operation (CW & CCW)
Multiple shaft types available

Technical Specifications

Parameter	Specification
Rated Voltage	DC 1.2V-24V
Rated Speed	10-300 RPM
Rated Torque	0.05-2.0 kgf.cm
Continuous Current	20-300 mA
Efficiency	70%
Motor Diameter	φ12mm
Weight	20g
Noise Level	≤55 dB
Working Temperature	-40°C to +60°C

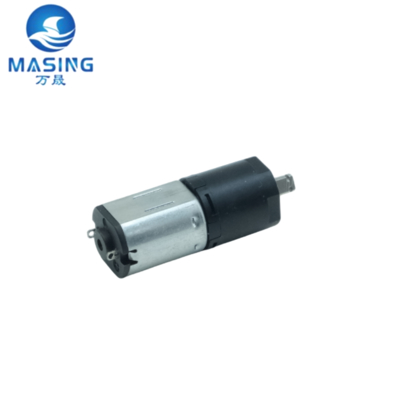

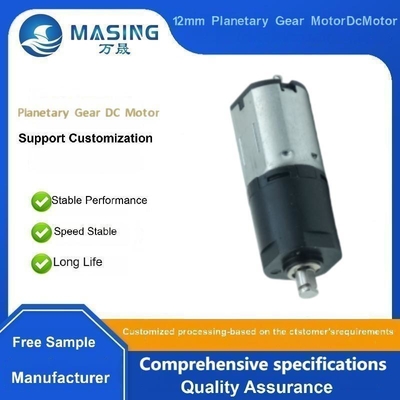

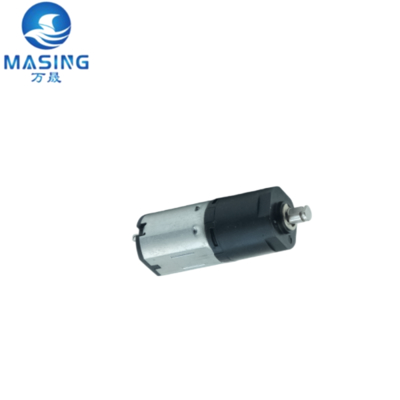

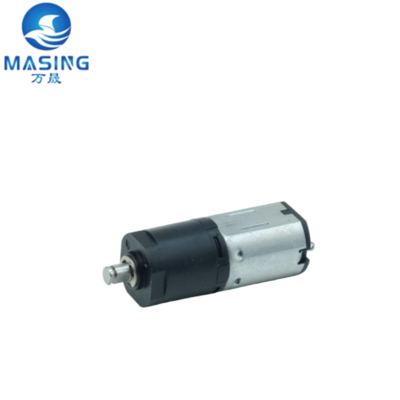

Product Images

Applications

Door locks, robots, smart home systems, electric bicycle locks, cosmetic instruments, medical equipment, driverless systems, artificial intelligence, intelligent transportation, health care, smart city, automotive supplies, security monitoring, 5G communication.

Packaging & Delivery

Packaging: Strong carton (400pcs/box) or customized packaging available

Port: Shenzhen/Guangzhou/Shanghai

Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples & Certifications

Sample Price: $15/piece (maximum order quantity: 1 piece)

Factory & Product Classification

Frequently Asked Questions

Q1. How to select a suitable motor?

If you have motor pictures, drawings, or detailed specifications like voltage, speed, torque, motor size, working mode, required lifetime, and noise level, please contact us. We will recommend suitable motors based on your requirements.

Q2. Do you have a customized service for your standard motors?

Yes, we can customize voltage, speed, torque, and shaft size/shape. We can also add wires/cables, connectors, capacitors, or EMC components as needed.

Q3. Do you have an individual design service for motors?

Yes, we provide individual motor design services. This may require mold charges and design fees.

Q4. Can I have samples for testing first?

Yes, after confirming the required motor specifications, we will provide a proforma invoice for samples. Once payment is received, we will proceed with sample production.

Q5. How do you ensure motor quality?

We have comprehensive inspection procedures: incoming materials are checked against signed samples and drawings; production includes tour inspections and final inspection before shipping to ensure product quality.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

W*m

Netherlands Jan 16.2026

Helpful (100)

Highly recommended!BLDC planetary geared motor is exactly what I needed. It runs smoothly under 12V, has strong torque, and the gearbox is well‑built. Very quiet and stable performance.

Prince

United States Dec 5.2025

Helpful (106)

Great motor! Works perfectly at 6V, 12V, and 24V. The planetary gear design provides excellent reduction and reliable power. Solid construction and long‑lasting so far.

J*n

United States Nov 18.2025

Helpful (128)
