Factory Low RPM Small Electric Brush Gear Motor 3.7V 6V 12V N20 Planetary Gearbox

Name: Factory Low RPM Small Electric Brush Gear Motor 3.7V 6V 12V N20 Planetary Gearbox
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MS-12PN20
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MS-12PN20
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

16949,RohS,CE,ISO

Product Name:

N20 Planetary Gearbox DC 3.7v

Shaft Material:

Plastic Or Customized

Efficiency:

50%

Rated Voltage:

DC1.5v-12v

Direction Of Motor:

CW & CCW Available

Gearbox Diameter:

φ12mm Planetary Gearbox

Gears Material:

Plastic Gears Or Customized

Motor Type:

N20 N10 Brushed Dc Motor

Key Words:

N20 Plastic Planetary Gearbox Motor

Noise:

Low Noise

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Product Description

N20 Planetary Gearbox DC 3.7v Motor Title:

Factory Low RPM Small Electric Brush Gear Motor 3.7V 6V 12V N20 Planetary Gearbox

N20 Planetary Gearbox DC 3.7v Motor Description:

Rated voltage:DC1.2V-12V
High Efficiency and Performance: 1.2v-12v DC Spur Geared Motor offers an efficiency of IE 1,
Usage: door-lock ,robots ,SMART HOME,Electric Bicycle Lock,Cosmetic Instrument.
No-load Speed:100-500RPM or Customized
Rotating speed is constant and can be made as you required.
Match motor type :FF-N20,FF-N10
Motor type:Metal brush /Carton brush
Suitable to small diameter, low noise and big torque application
Motor default direction:CW&CCW available
Gearbox diameter :φ12mm Gear box,Gearbox material :rohs plastic gearbox
Gears material :Plastic gears
Can be match with wheel, One shaft one wheel or one motor, one wheel
Working temperature:-40~+60°c
Low Noise and High Torque: With a torque of 0.01-1kg.cm, this motor operates at a low noise level
Durable and Long-Lasting: The motor's totally enclosed design provides protection from external factors, while the permanent magnet construction ensures a long lifespan and reliable operation.
We can provide samples for your test.
Product quality is guaranteed, 100% of all goods must pass quality inspection before shipment
Support service:OEM &ODM

Key attributes:

Rated Speed(RPM)

5rpm-500rpm

Continuous Current(A)

10mA-200mA

Gearbox Efficiency

80%-55%

Warranty

Others

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MS-12PN20

Use

door-lock ,robots ,SMART HOME,Electric Bicycle Lock, Cosmetic Instrument

Type

3V micro n20 planetary gearbox

Torque

0.1kgf.cm-1kgf.cm

Gearbox Diameter

φ12mm Gearbox

Commutation

Brush Motor

Direction of motor

CW&CCW available

Gears Material

Plastic gears

Application

toys,robots ,door-lock,smart home

Keywords

N20 Mini Planetary Gear Motor

Motor type

FF-N20,FF-N10

Gearbox Material

Rohs Plastic gearbox

Noise

low noise level ≤55DB

MOQ

1000Pcs

Rated Voltage

1.2v-12v DC

Color

Customer's Request

Gearbox type

Plastic planetary motor

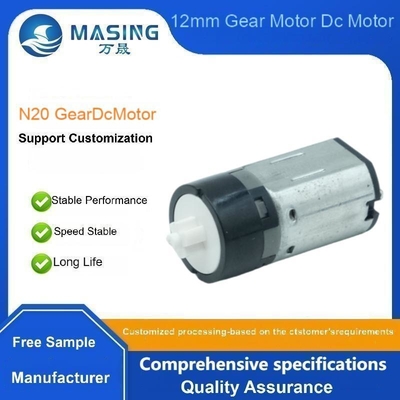

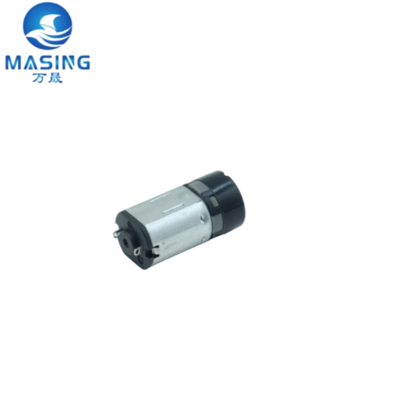

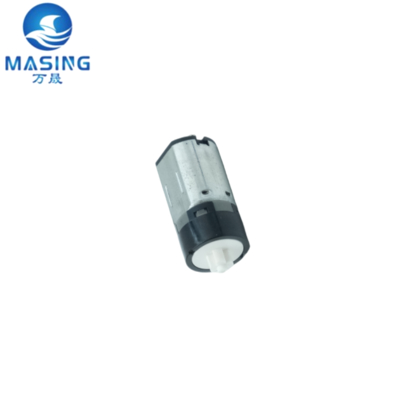

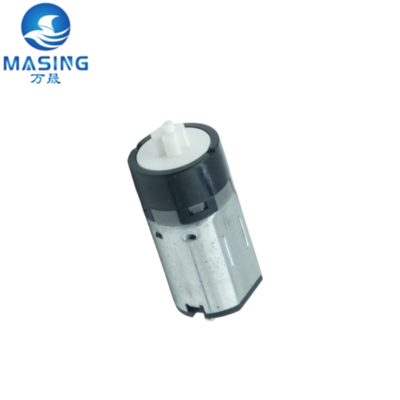

N20 Planetary Gearbox DC 3.7v Motor Product Photo:

Factory Low RPM Small Electric Brush Gear Motor 3.7V 6V 12V N20 Planetary Gearbox 0

N20 Planetary Gearbox DC 3.7v Motor Product Spec:

12mm DC Plastic Planetary Gear Motor Typical Applications:

door-lock ,robots ,SMART HOME,Electric Bicycle Lock,Cosmetic Instrument.

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

Factory Low RPM Small Electric Brush Gear Motor 3.7V 6V 12V N20 Planetary Gearbox 3

Motor Technical Data
Motormodel No.	Rated voltage		No-load speed	No-load current	Rated speed	Rated torque	Rated current	Output power	Stall torque	Stall current
	VDC		r/min	mA	r/min	g.cm	mA	W	g.cm	A
TFF-N20VA-13110	2.4		14800	60	12000	2.5	200	0.31	13	1.20
TFF-N20VA-09220	5.0		14800	30	12000	2.5	120	0.31	13	0.52
TFF-N20VA-05430	12.0		16000	15	12500	3.0	60	0.35	13	0.25

Gear motor Technical Data
Reduction ratio		120
Length mm		8
No-load speed rpm		123
Rated speed rpm		100
Rated torque kg.cm		0.18
Max.momentary tolerance torque kg.cm		0.9

Packaging and delivery:

Packaging Details

Strong Carton 1000pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight

22g

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$3/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home,door-lock ,robots ,Electric Bicycle Lock,Cosmetic Instrument.

Medical equipment	sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines	intelligent robot,Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment	Electric toothbrush,Electric tool,adult erotica products,Electric toy car,Electric curtain.
Smart Home	Intelligent window opener ,vacuum cleaner, Smart coffee machine,hair drier,Fascia gun,fan,air cleaner,Hair removal device,door lock,Intelligent door lock.
Food and Beverage	Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics	Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot.

Factory Low RPM Small Electric Brush Gear Motor 3.7V 6V 12V N20 Planetary Gearbox 9

FAQ

Q1:How to select a suitable motor?

A1:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q2:Do you have a customized service for your standard motors?

A2:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q3: Do you have an individual design service for motors?

A3:Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q4: Can I have samples for testing first?
A4: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

Q5: How do you make sure motor quality?

A5:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
