RS-550/555 With 36mm Plastic Gearbox 12v Dc Planetary Gear Motor For Vacuum Cleaner Robot

RS-550/555 With 36mm Plastic Gearbox 12v Dc Planetary Gear Motor For Vacuum Cleaner Robot

Brand Name:	Masing Motor
Model Number:	MS-PG36-555
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

16949,RohS,CE,ISO

Product Name:

36mm Brushed DC Planetary Gear Motor

Shaft Diameter:

φ8mm Or Customized

Motor Size:

φ36mm*L50mm,φ36mm*L57mm

Gearbox Efficiency:

65%-90%

Shaft Type:

Round ,D-cut ,Flat Or Customized

Direction Of Motor:

CW&CCW Available

Rated Power:

1w-100w

Rated Torque:

0.1Nm-10Nm

Gearbox Diameter:

φ 36mm Planetary Gearbox

Rated Voltage:

DC 6V-30V

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Product Description

Title:

RS-550/555 With 28mm Plastic Gearbox 12v Dc Planetary Gear Motor For Vacuum Cleaner Robot

Description:

Rated Voltage:6v-30v DC Brushed Motor
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
Output Speed :2rpm -1000rpm
Rated Torque:0.1NM-10NM
Motor Type:Brushless motor or Brushed motor
Motor Model:Rs-545/rs-540/rs-550/rs-555
Motor size :Diameter 35.7mm ,Lenght :40mm ,Diameter 35.7mm ,Lenght :50mm,Diameter 35.7mm ,Lenght :57mm
Direction of motor :CW/CCW available
Motor Power:1W-100W High Power
Gearbox diameter :φ36mm
Gearbox type :Planetary gear box
Gears Material:Plastic ,Copper ,steel,Powder metallurgy or customized
Working temperature:-40~+60°c
Life time:500H-3000H
Certification:16949,CE,Rohs,ISO
High Efficiency: The motor boasts an efficiency of 90% to 65%,
Applications :Robotics Automation, Smart Home, Electric Curtain,office supplies, power tools, medical equipment,

precision instruments, automotive electronics etc
We can provide samples for your test.
Every product must pass quality inspection before shipment

Key Attributes:

Speed(RPM)

2rpm-1000rpm or customized

Voltage

DC6.0-30V

Efficiency

90%-65%

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MS-PG36-550

Use

office supplies, power tools, medical equipment,

precision instruments, automotive electronics,

Robotics Automation, Smart Home, Electric Curtain, Medical Imaging Equipment,Manufacturing Plant

Shaft diameter

φ8mm or φ10mm or customized

Torque

0.1NM-10NM

Construction

Permanent Magnet

Commutation

Brushed

Shaft Type

Round,Flat,D-cut ,with a hole,Threaded shaft,Threaded holeor or customized

Direction of motor

CW/CCW available

Feature

High Efficiency 90%-65%

Keywords

brushed 36mm dc planetary gear motor

Diameter Size

Brush Motor φ36mm*L40mm,φ36mm*L50mm,φ36mm*L57mm,

Weight

400g/450g

Noise

Low Noise Level ,≤55DB

MOQ

1000Pcs

Customized support

OEM, ODM, OBM

Dimension box

φ36mm plastic dc planetary gearbox

Life Expectancy

500H-3000H

Product Photo:

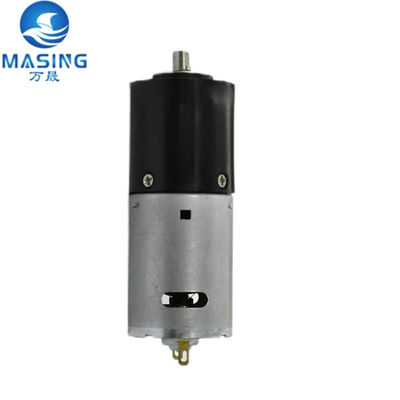

RS-550/555 With 36mm Plastic Gearbox 12v Dc Planetary Gear Motor For Vacuum Cleaner Robot 0

Product Spec:

RS-550/555 Brushed Motor DC Planetary DC GEAR MOTOR Typical Applications

Robotics Automation, Smart Home, Electric Curtain,Robot Vacuum Cleaner,Cosmetic instrument, Smart Home, Medical Imaging Equipment,Manufacturing Plant Robots,,Car flip screen,Intelligent Trash Can ,Power Tools, Home Application, Personal Care,

Voltage,rated torque,speed,curent,power and shaft size can be customizedasrequrement.

NOTE:The left side of redline area can continous work

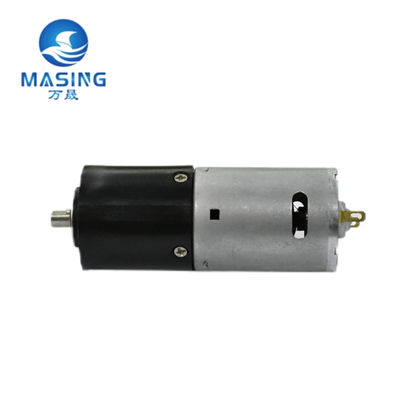

RS-550/555 With 36mm Plastic Gearbox 12v Dc Planetary Gear Motor For Vacuum Cleaner Robot 2

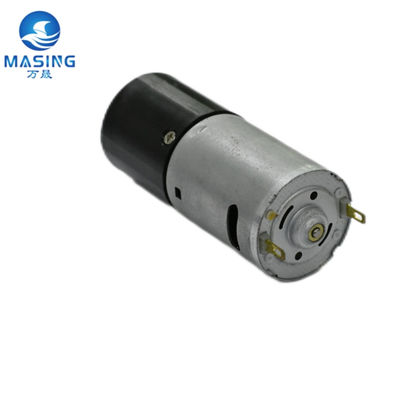

RS-550/555 With 36mm Plastic Gearbox 12v Dc Planetary Gear Motor For Vacuum Cleaner Robot 3

Gear grade	1	2	3	4
Gear ratio of the reducer(K)	3.7,5.2	14,19,27	54,71,100,139	189,264,369,515,721
Gearbox Length(mm)	27.5	35.5	43.5	51.5
Rated Torque(kg.cm)	3	6	9	17
Stall Torque(kg.cm)	6	10	20	35
Efficiency(%)	90%	81%	73%	65%

Model number	Rated volt.	No load		Load				Stall
		Speed	Current	Speed	Current	Torque	Powerr	Current	Torque
		rpm	mA(max)	rpm	mA(max)	Kgf.cm	w	mA(min)	Kgf.cm
MS-36PGM5550126000- 5.2K	12V	1153	650	960	3000	1.2	11.8	10620	6.3
MS-36PGM5550128000- 4K	12V	571	900	465	3500	4	19.1	11550	19
MS-36PGM5550126000- 27K	12V	223	400	175	1600	4.2	7.5	5350	20
MS-36PGM5550126000- 51K	12V	117	680	85	2680	13	11.3	8350	60
MS-36PGM5550126000- 71K	12V	84	500	70	2400	14	10.1	8380	71
MS-36PGM5550126000- 99.5K	12V	60	450	48	2000	16	7.9	6300	78
MS-36PGM5550124500- 264K	12V	17	400	12	1500	28	3.4	2800	104
MS-36PGM5550126000- 721K	12V	8	400	6	3200	160	9.9	9000	630
MS-36PGM5550246000- 3.7K	24V	1621	500	1216	2000	1.5	18.7	8000	7.5
MS-36PGM5550246000- 5.2K	24V	1153	400	1016	1600	1.25	13	5380	8

Packaging and delivery:

Packaging Details

Strong Carton 100pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

400g/450g

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 5000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$20/piece or Negotiable

Certifications:

Factory Show:

Product Classification:

Applications:

Medical equipment	sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines	Intelligent robot,Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment	Electric toothbrush,Electric tool,Electric toy car,Electric curtain.
Smart Home	Intelligent window opener ,vacuum cleaner, Smart coffee machine,hair drier,Fascia gun,fan,air cleaner,Hair removal device,door lock,Intelligent door lock.
Food and Beverage	Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics	Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot.
