16mm Micro DC Motor PG16-050SH 6v 12v With Gear Reducer Planetary Gearbox

Name: 16mm Micro DC Motor PG16-050SH 6v 12v With Gear Reducer Planetary Gearbox
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MS-PG16F050
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MS-PG16F050
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO,CE,ROHS ,16949

Product Name:

16mm Dc Planetary Gear Motor

Shaft Type:

Round,Flat ,D-Cut,with Hole ,with Gear

Shaft Diameter:

φ3mm

Rated Speed:

5rpm-4000rpm

Gearbox Diameter:

φ16mm Gearbox

Gearbox Type:

Planetary Gearbox

Rated Voltage:

3v-24v

Micro Motor:

FF-050 Dc Brushed Motor

Direction Of Motor:

CW &CCW Available

Reduction Ratio:

1:4 To 1:1296

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Highlight:

12v Dc Planetary Gear Motor

16mm Micro DC Motor

6v Dc Planetary Gear Motor

Product Description

Title:

Good Price Micro Dc 16mm Motor PG16-050SH 6v 12v Motor With Gear Reducer Dc Motor Planetary Gearbox

Description:

High Efficiency and Performance: 1.2v-24v DC Planetary Geared Motor offers an efficiency of 90%-65%,
Motor Model: FF-030 or FF-050 Product Name:16mm Brushed Planetary Geared DC Motor
Rated Speed:5rpm -4000RPM or customized
Rotating speed is constant and can be made as you required.
Gearbox Size: 16mm diameter planetary gear dc motor
Certification:CE,RoHS,IOS9001,REACH,16949
Suitable to small diameter, low noise and big torque application
Motor type :Brush Motor
Brush type :Metal brush or Carton brush
Motor default direction:CW&CCW available
Working temperature:-40~+60°c
Rated Power :1W-5W Maximum torque: 5KG. cm
Motor type: carbon brush/Metal Brush
Applications:Intelligent household appliances, office automation, automotive, medical, personal care, robot, electronic lock, industrial automation
We can provide samples for your test.
With stable quality,every product will pass 100% quality inspection before shipping

Key attributes:

Speed(RPM)

5rpm-4000rpm

Continuous Current(A)

0.01-0.09A

Efficiency

90%-65%

Warranty

Others

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MS-PG16F050

Use

door-lock ,robots ,SMART HOME,Electric Bicycle Lock, Cosmetic Instrument

Motor Type

Brushed Motor

Rated Torque

0.01-5kg.cm

Construction

Permanent Magnet

Commutation

Brush

Protect Feature

Totally Enclosed

Product Name

16mm micro planetary gear reduction motor

Rated Power

0.5W-5W

Shaft diameter

φ3mm ,D-cut

Gearbox Diameter

φ16mm

Direction of motor

CW&CCW

Noise

≤55DB

MOQ

1000Pcs

Shaft type

Round ,Flat ,D-cut or Customized

Gearbox Material

Metal Gearbox Rohs

Motor type

FF-050,FF-030 DC MOTOR

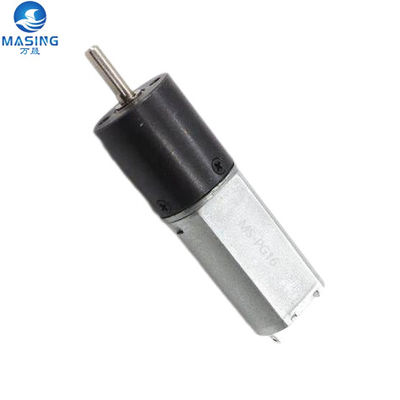

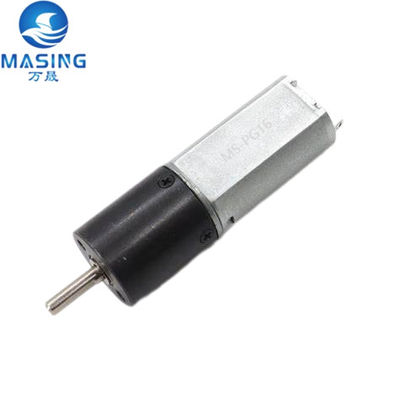

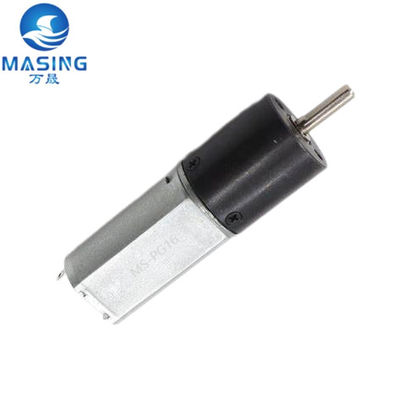

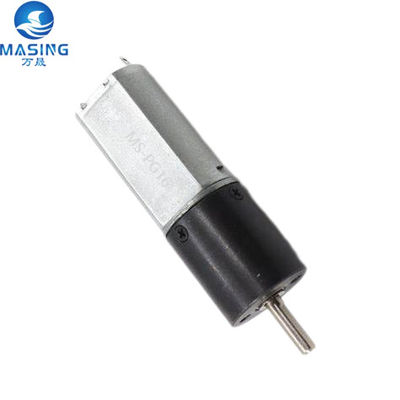

Product Photo:

16mm Micro DC Motor PG16-050SH 6v 12v With Gear Reducer Planetary Gearbox 0

Product Spec:

Micro 16mm DC Planetary Gear Motor Typical Applications:

Intelligent household appliances, office automation, automotive, medical, personal care, robot, electronic lock, industrial automation ,door-lock ,robots ,SMART HOME,Electric Bicycle Lock,Cosmetic Instrument.

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

16mm Micro DC Motor PG16-050SH 6v 12v With Gear Reducer Planetary Gearbox 2

Performance parameters of the motor
Model	Voltage	No-load		On-load					Stall			Gear Ratio	Gearbox Length(L)	Motor	Motor Length(L1)
	Voltage	Speed	Current	Speed	Current	Torque		Power	Torque		Current	Gear Ratio	Gearbox Length(L)	Motor	Motor Length(L1)
	V	r/min	A	r/min	A	mN.m	kg.cm	W	mN.m	kg.cm	A		mm		mm
MS-16P050-4	6V	1400	0.09	1130	0,13	1.6	0.02	0.45	5.6	0.07	0.65	4	38.4	JFF/K-050	26.9
MS-16P050-16	6V	350	0.09	285	0,13	5.1	0.05	0.45	17.9	0.18	0.65	16	41.7	JFF/K-050	26.9
MS-16P050-24	6V	235	0.09	190	0.13	7.5	0.2	0.45	26.3	0.7	0.65	24	41.7	JFF/K-050	26.9
MS-16P050-64	6V	90	0.1	75	0.14	13.2	0.14	0.45	46.2	0.49	0.65	64	45	JFF/K-050	26.9
MS-16P050-96	6V	55	0.1	50	0.14	19.9	0.2	0.45	69.7	0.7	0.65	96	45	JFF/K-050	26.9
MS-16P050-256	6V	22	0.1	18	0.14	39.7	0.41	0.45	139	1.44	0.65	256	48.3	JFF/K-050	26.9
MS-16P050-384	6V	15	0.1	12	0.14	60	0.61	0.45	210	2.14	0.65	384	48.3	JFF/K-050	26.9
MS-16P050-576	6V	9	0.1	8	0.14	89	0.91	0.45	311.5	0.46	0.65	576	48.3	JFF/K-050	26.9
MS-16P050-864	6V	6	0.12	5	0.15	134	1.37	0.45	469	4.8	0.65	864	48.3	JFF/K-050	26.9
MS-16P050-1296	6V	4	0.12	3	0.15	196	2	0.45	686	7	0.65	1296	48.3	JFF/K-050	26.9

Packaging and delivery:

Packaging Details

Strong Carton 200pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

85G

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$15/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Smart home, smart door locks, personal care, artificial intelligence, automobiles, model airplanes, adult products, security, small home appliances, models, power tools, communication equipment, medical devices, health care equipment, toys and fitness equipment and other products.

FAQ

Q1:How can i get the price?

A1:We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.

Q2: Can I buy samples placing orders?

A2:Yes.Please feel free to contact us.

Q3:What is your lead time?
A3: It depends on the order quantity and the season you place the order. Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.

Q4: Do you accept customize?

A4:Sure,as we have a strong design team,any problems will get our technical answer.

Q5:What kind of data do i neet to provide if i want to order?

A5:Please kindly tell us your voltage,speed,torque and overall dimension.

Q6: What if i don't know the above data?

A6:Please contact our saleman to handle,we'll answer your questions patiently.
