22mm 6 Volt Planetary Gearbox Gear Motor For Smart Car Door Lock Gear Reduction Boxes

22mm 6 Volt Planetary Gearbox Gear Motor For Smart Car Door Lock Gear Reduction Boxes

Brand Name:	Masing Motor
Model Number:	MSPG22F180
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ISO,CE,ROHS ,16949

Product Name:

Planetary Gearbox Gear Motor

Shaft Type:

Round,Flat ,D-Cut

Efficiency:

90%-65%

Rated Speed:

3rpm-5000rpm

Gearbox Diameter:

φ22mm Gearbox

Gearbox Type:

Planetary Gear Box φ22mm

Rated Voltage:

3v-24v

Micro Motor:

FF-180 Dc Motor

Gear Material:

Copper ,steel ,Powder Metallurgy

Reduction Ratio:

1:3.5 To 1:1026

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Highlight:

22mm Planetary Gearbox Gear Motor

6 Volt Planetary Gearbox Gear Motor

22mm Planetary Gear Motor

Product Description

22mm 6 Volt Planetary Gearbox Gear Motor For Smart Car Door Lock Gear Reduction Boxes

Product Overview

Model PG22-F180 180 Micro Brushed Planetary Reduction DC Motor designed for applications requiring small diameter, low noise, and high torque performance.

Motor Model: PG22-F180
Rated Speed: 3rpm - 5000RPM (customizable)
Gearbox Size: 22mm diameter planetary gear
Certifications: CE, RoHS, IOS9001, REACH, 16949
Shaft diameter: φ4mm D-cut (customizable shaft types available)
Motor direction: CW & CCW available
Working temperature: -40°C to +60°C
Power: 0.2W - 10W | Maximum torque: 8KG.cm
Motor type: carbon brush/Metal Brush
Customization: Accepted

Technical Specifications

Parameter	Specification
Speed (RPM)	3rpm - 5000rpm
Efficiency	90% - 65%
Warranty	3 Months - 1 Year
Place of Origin	Guangdong, China
Brand Name	Masing Motor
Model Number	MSPG22F180
Rated Torque	0.01 - 10kg.cm
Noise Level	≤55DB
MOQ	1000Pcs

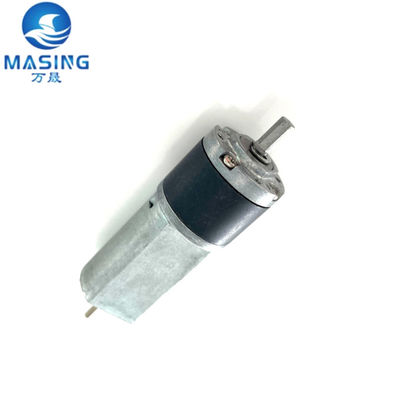

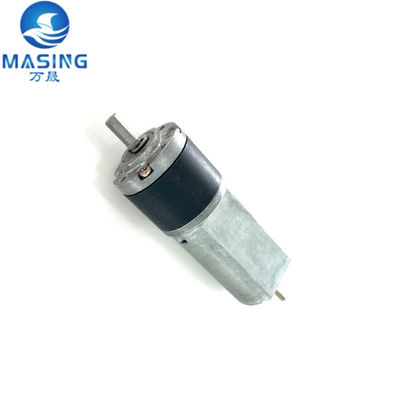

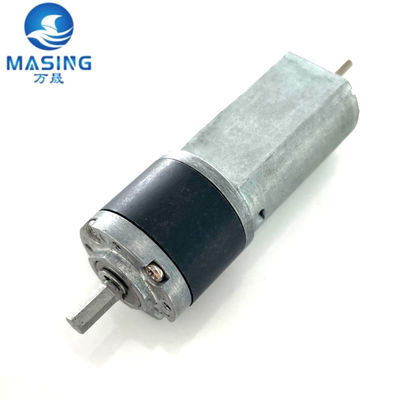

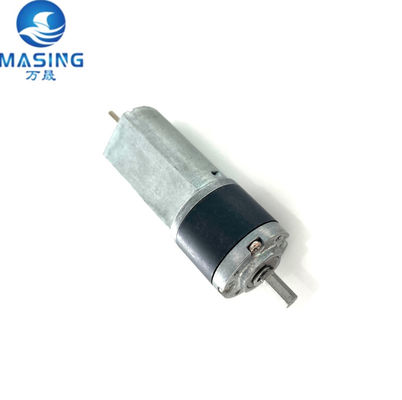

Product Images

Gearbox Technical Data

Number of Stages	1	2	3	4
Reduction Ratio (K)	3.5/4/4.75	14/16/19/22.5/24/28.5/36	49/56/64/76/84/96/107/114/135/144/171	196/224/233/256/266/276/294/304/316/336/349/361/384/399/428/456/474/509/541/576/643/684/812/864/1026
Length of Gear box L(mm)	13.4	16.9	20.4	23.9
Rated Torque (kg-cm)	2	3	4	5
Transient Torque (kg-cm)	4	6	8	10
Efficiency (%)	90%	81%	73%	65%

Calculation Formulas:
Output torque = motor torque × reduction ratio × gear box efficiency
Output speed = motor speed ÷ reduction ratio

Motor Performance Data

Motor Model	Voltage	No Load		At Maximum Efficiency					Stall
	Operating Range	Current (A)	Speed (rpm)	Current (A)	Speed (rpm)	Torque (g-cm)	Power (W)	Efficiency (%)	Current (A)	Torque (g-cm)
FF180***	5~7V	0.08	8500	0.38	7030	19	1.37	59.4	1.84	109
RF2230***	5~7V	0.16	9000	1.00	7765	43.5	3.45	57.5	6.25	310

Packaging & Delivery

Packaging: Strong Carton 400pcs/box, or customized
Port: Shenzhen/Guangzhou/Shanghai
Selling Units: Single item
Package size: 37×27×24cm
Gross weight: 20.0kg
Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples

Maximum order quantity: 1 piece
Sample price: $15/piece

Certifications & Factory

Quality Certifications

Factory Overview

Product Classification

Applications

Smart home, smart door locks, personal care, artificial intelligence, automobiles, model airplanes, adult products, security, small home appliances, models, power tools, communication equipment, medical devices, health care equipment, toys and fitness equipment and other products.

Frequently Asked Questions

Q1: What kind of gear reducer motor can you make?

A1: We can make DC motors below 3v-36v, with power less than 100W and diameter less than 100mm.

Q2: Can the gearbox be matched with other motors?

A2: Our standard gearbox can be matched with other motors. The matched brush, brushless, hollow cup and stepping motor need to match the shape of our gearbox, or change the shape of our gearbox. Matching with other motors also requires custom proofing, otherwise it will involve low efficiency, large loss and short life.

Q3: How to confirm the payment?

A3: We accept payment by T/T, PayPal, the other payment ways also could be accepted. Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.

Q4: About customized gearbox?

A4: As a gearbox manufacturer with R & D capability, we support customers to provide us with gearbox shape, required reduction ratio and output speed. We will develop customized products for you. Or you can provide your own R & D products, and we will optimize the structure, production and assembly for you.

Q5: What kind of express will be used to transport samples or bulk goods?

A5: We have established long-term service relationships with DHL, FedEx, UPS and other global express companies. In addition, we accept the transportation mode required by customers.

Q6: How can you guarantee the quality?

A6: We have 100% finished product inspection before delivery and no defective products returned.
