12v Low Rpm DC Gear Motor , High Torque Gearbox Motor With 20mm Planetary Gearbox

12v Low Rpm DC Gear Motor , High Torque Gearbox Motor With 20mm Planetary Gearbox

Brand Name:	Masing Motor
Model Number:	MSPG20F130
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ISO,CE,ROHS ,16949

Product Name:

FF-130 20mm Dc Planetary Gear Motor

Shaft Type:

Round,Flat ,D-Cut

Efficiency:

High Efficiency

Rated Speed:

5rpm-4000rpm

Gearbox Diameter:

φ20mm Gearbox

Gearbox Type:

Planetary Gearbox φ20mm

Rated Voltage:

3v-24v

Micro Motor:

FF-130 Dc Brushed Motor

Direction Of Motor:

CW &CCW Available

Reduction Ratio:

1:4.3 To 1:850

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Highlight:

12v Low Rpm DC Gear Motor

12v High Torque Gearbox Motor

Low Rpm High Torque Gearbox Motor

Product Description

12V Low RPM DC Gear Motor with 20mm Planetary Gearbox

Product Overview

Mini FF-130 Motor with 20mm Planetary Gearbox - a 12V DC gear motor offering low RPM and high torque performance for precision applications.

Key Features

High Efficiency: 90%-65% efficiency range
Motor Model: FF-130 or FF-180 with 20mm Brushed Planetary Geared DC Motor
Rated Speed: 5RPM - 4000RPM (customizable)
Constant rotating speed with custom specifications available
Compact Size: 20mm diameter planetary gear DC motor
Certifications: CE, RoHS, IOS9001, REACH, 16949
Ideal for small diameter, low noise, and high torque applications
Brush Motor with Metal or Carton brush options
Default Direction: CW & CCW available
Working Temperature: -40°C to +60°C
Rated Power: 1W-5W with Maximum torque: 5KG.cm

Technical Specifications

Speed (RPM): 5rpm-4000rpm
Continuous Current: Customized
Efficiency: 90%-65%
Warranty: 3 Months - 1 Year
Place of Origin: Guangdong, China
Brand Name: Masing Motor
Model Number: MSPG20F130
Motor Type: Brushed Motor
Rated Torque: 0.01-5kg.cm
Construction: Permanent Magnet
Commutation: Brush
Protect Feature: Totally Enclosed
Shaft diameter: φ4mm, D-cut
Gearbox Diameter: φ20mm
Direction: CW & CCW
Noise: ≤55DB
MOQ: 1000Pcs
Shaft type: Round, Flat, D-cut or Customized
Gearbox Material: Metal Gearbox Rohs

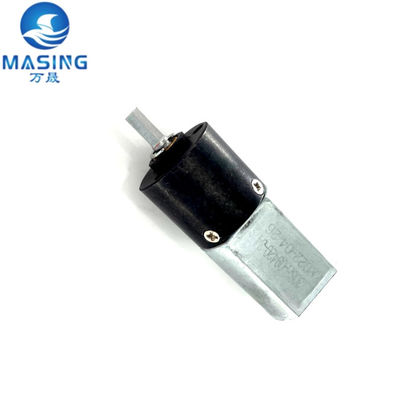

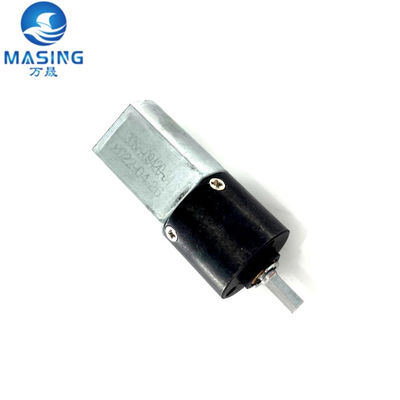

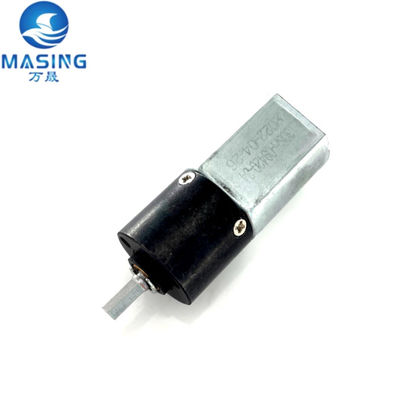

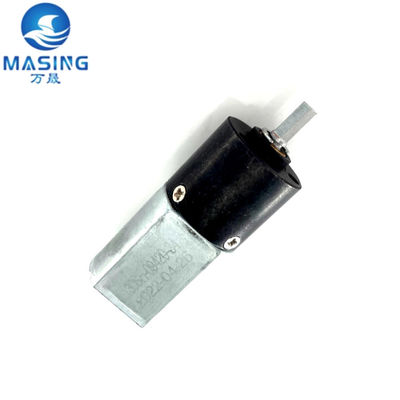

Product Images

Applications

Intelligent household appliances, office automation, automotive, medical, personal care, robot, electronic lock, industrial automation, door-lock, robots, SMART HOME, Electric Bicycle Lock, Cosmetic Instrument.

Gearbox Technical Data

Number of Stages	1	2	3	4
Reduction Ratio(K)	4.38/5.4	19/24/29	84/104/128/157	370/455/560/690/850
Length of Gear box L(mm)	15.3	19.5	23.7	27.9
Rated Torque(kg-cm)	2	3	4	5
Transient Torque(kg-cm)	4	6	8	10
Efficiency(%)	90%	81%	73%	65%

Calculation Notes:
Output torque = motor torque × reduction ratio × gear box efficiency
Output speed = motor speed ÷ reduction ratio

Motor Data

Motor Model	Voltage	No Load	At Maximum Efficiency						Stall
	Operating Range	Rated	Current	Speed	Torque	Power	Efficiency	Current	Torque
FF130***	3~5V	4.0V	0.11	7500	0.40	5885	14	0.86	53.4	1.46	65
FF180***	5~7V	6.0V	0.08	8500	0.38	7030	19	1.37	59.4	1.84	109

Packaging & Delivery

Packaging: Strong Carton 200pcs/box, or customized
Port: Shenzhen/Guangzhou/Shanghai
Selling Units: Single item
Package Size: 37×27×24cm
Gross Weight: 85G
Supply Ability: 100,000 Piece/Pieces per Month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples

Maximum order quantity: 1 piece
Sample price: $15/piece

Certifications & Factory

Frequently Asked Questions

Q1: Are you factory or trading company?

A1: Yes, we are factory. Main products include micro geared motors, brushless DC motors, DC motors and DC planetary gear boxes.

Q2: What's the price?

A2: We're a professional manufacturer. The exact price is based on clients' specifications, such as speed and voltage requirements.

Q3: What's the MOQ?

A3: We try to meet every client's requests. MOQ is flexible depending on product complexity and production season. Please contact our sales team for confirmation.

Q4: What is the quality of the planetary reducer?

A4: Our gear motors are exported to Japan, Germany, USA, UK, Indonesia, Singapore and other countries. Customers report excellent operation, low noise and high torque performance.

Q5: What's the delivery time?

A5: In slack season: delivery within one month. In busy season: over one month for large quantities. We provide free overtime production for urgent orders.

Q6: How can you guarantee the quality?

A6: We conduct 100% finished product inspection before delivery with zero defective products returned.
