3.7V 12V High Speed Brushless Motor , Brushless And DC Planetary Gear Motors

3.7V 12V High Speed Brushless Motor , Brushless And DC Planetary Gear Motors

Brand Name:	Masing Motor
Model Number:	MSPG16BL1724
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

16949,ISO CE ROHS

Product Name:

16mm Dc Planetary Gear Brushless Motor

Shaft Type:

Flat ,D-Cut Or Round Or Customized

Efficiency:

90%-65%

Rated Speed:

4rpm-3000rpm

Gearbox Diameter:

φ16mm

Gearbox Type:

Planetary Gearbox

Gears Material:

Steel,copper ,plastic,Powder Metallurgy

Motor Type:

Brushless Motor

Keywords:

Brushless Planetary Gear Motor

Gearbox Materail:

Metal Rohs

Reduction Ratio:

1:4 To 1:1026 Or Customized

Rated Torque:

0.1kgf.cm-10kgf,com

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Highlight:

12V High Speed Brushless Motor

3.7V High Speed Brushless Motor

Brushless And DC Planetary Gear Motors

Product Description

3.7V 12V High Speed Brushless Motor, Brushless DC Planetary Gear Motors

Product Overview

High performance 3.7V-24V DC planetary geared brushless motor with 16mm diameter gearbox, designed for medical equipment and precision applications. Features high efficiency, customizable specifications, and reliable operation.

Key Features

High Efficiency: 90%-65% efficiency rating
Rated Speed: 4RPM-3000RPM (customizable)
Rated Voltage: DC 3.7V-24V
Gearbox Diameter: φ16mm planetary gearbox
Materials: Metal, steel, or customized options
Motor Type: BL1724 brushless motor
Low Noise Operation: ≤55DB
Working Temperature: -40°C to +60°C
Rotation Direction: CW & CCW available
OEM/ODM Services Supported

Technical Specifications

Parameter	Specification
Speed (RPM)	4rpm-3000rpm
Continuous Current	10-500mA
Efficiency	90-65%
Rated Torque	0.1kgf.cm-10kgf.cm
Power	1W-10W
Noise Level	≤55DB
MOQ	1000Pcs

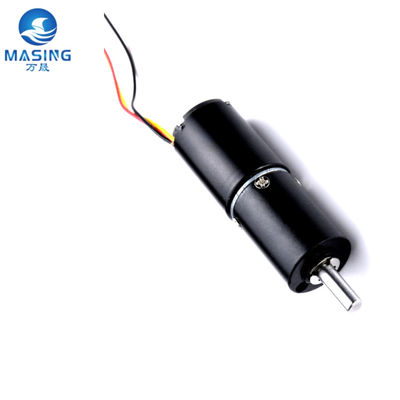

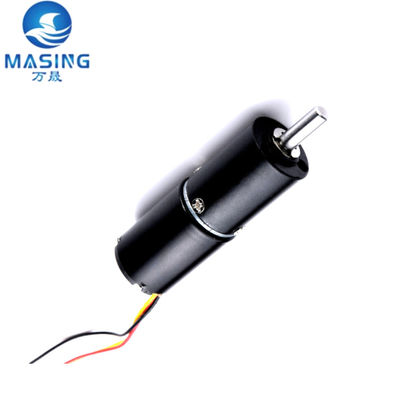

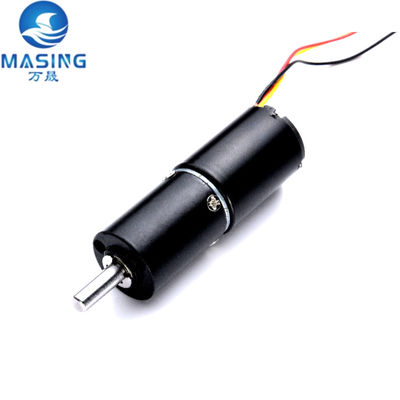

Product Images

Gearbox Technical Data

Number of Stages	1	2	3	4
Reduction Ratio	4/4.75/6	14/16/19/22.5/24/28.5/36	49/56/64/76/84/96/107/114/135/144/171	196/224/233/256/266/276/294/304/316/336/349/361/384/399/428/456/474/509/541/576/643/684/812/864/1026
Gearbox Length (mm)	12.5	16	19.5	23
Rated Torque (kg-cm)	2	3	4	5
Transient Torque (kg-cm)	4	6	8	10
Efficiency	90%	81%	73%	65%

Motor Performance Data

Motor Model	Voltage	No Load Current (A)	No Load Speed (rpm)	Max Efficiency Current (A)	Max Efficiency Speed (rpm)	Max Efficiency Torque (g-cm)	Max Efficiency Power (W)	Max Efficiency (%)	Stall Current (A)	Stall Torque (g-cm)
BL1724***	3.7V	0.04	4850	0.11	3643	6.4	0.2	56.8	0.34	25.5
BL1724***	12V	0.13	15500	0.38	11560	21.4	2.5	55.4	1.12	84.1

Packaging & Delivery

Packaging: Strong Carton (200pcs/box) or customized
Port: Shenzhen/Guangzhou/Shanghai
Package Size: 37×27×24cm
Gross Weight: 100g per unit
Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples

Maximum Order Quantity: 1 piece
Sample Price: $15/piece
Customized samples and freight charges apply

Certifications & Factory

Applications

Driverless systems, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Smart home, door-lock systems, robots, Electric Bicycle Lock, Cosmetic Instrument.

Frequently Asked Questions

Q1: What's the price?

A1: We're a professional manufacturer. The exact price is based on clients' specifications, such as speed, voltage, etc.

Q2: What's the MOQ?

A2: MOQ is flexible depending on product complexity and production schedule. Please contact our sales team for confirmation.

Q3: Can you send samples before order?

A3: Yes, we provide samples for quality confirmation via UPS, TNT, FEDEX or DHL.

Q4: Can we test samples?

A4: Yes, we have R&D and Testing Center. Customized samples and freight are charged.

Q5: Can you add our logo?

A5: Certainly. Logo customization is available for most products.

Q6: How do you guarantee quality?

A6: We perform 100% finished product inspection before delivery with zero defective products returned.

Q7: How to select a suitable motor?

A7: Provide motor pictures, drawings, or detailed specs (voltage, speed, torque, size, working mode, lifetime, noise level) and we'll recommend suitable options.
