6V 12V DC Brushless Motor High Torque Planetary DC Geared Motor With Gearbox 22MM

Name: 6V 12V DC Brushless Motor High Torque Planetary DC Geared Motor With Gearbox 22MM
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MSPG22BL2230
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MSPG22BL2230
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ROHS,ISO,CE,16949

Product Name:

22mm Planetary Brushless 12 Volt Gear Reduction Motor

Shaft Type:

Round, Flat ,D-Cut Or Customized

Efficiency:

90%-65%

Rated Speed:

3rpm-2000rpm Or Customized

Shaft Diameter:

φ4mm ,D-cut

Gearbox Diameter:

φ22mm Metal Gearbox

Gearbox Materail:

Metal Gearbox Or Customized

Micro Motor:

2230 Brushless Motor

Keywords:

12 Volt Gear Reduction Motor 22mm

Gears Materail:

Steel ,copper ,plastic ,Powder Metallurgy

Direction Of Motor:

CW &CCW Available

Motor Type:

Brushless DC Motor

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Highlight:

High Torque 12V Brushless Motor

12V DC Brushless Motor High Torque

Planetary DC Geared Motor

Product Description

Title:

High Torque 6V12V Dc Brushless Motor With Gearbox 22MM Brushless Planetary Dc Geared Motor

Description:

High Efficiency and Performance: 6v-24V DC Brushless Planetary Geared Motor offers an efficiency of 90-65%
Rated Voltage :DC6.0V-24.0V
Rated Speed:3rpm-2000RPM
Rotating speed is constant and can be made as you required.
Motor type :brushless dc motor
Motor size :φ22mm*L30mm
Gearbox diameter :φ16mm, metal planetary gear reducer;
Encoder : magnetic encoder available
Suitable to small diameter, low noise and big torque application
Direction of motor :CW/CCW available
Shaft Type: D-cut ,Flat ,Round ,with a hole ,Threaded shaft, circlip groove or Customized
Working temperature:-40~+60°c
15 years experience in gear and motor design
Commutation: Brushlesse
Customizable Options: We offer various diameter options and a color that can be customized according to the user's request, allowing for flexibility in design and integration.
Durable and Long-Lasting: The motor's totally enclosed design provides protection from external factors, while the permanent magnet construction ensures a long lifespan and reliable operation.
OEM & ODM Service Available
We can provide samples for your test.
Many type products to choose
100% inspection before shipment
Good price and service

Key attributes:

Speed(RPM)

3rpm-2000 rpm or customized

Continuous Current(A)

10mA-500mA

Efficiency

90%-65%

Warranty

Others

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MSPG22BL2230

Use

office supplies, power tools, medical equipment,

precision instruments, automotive electronics

ROBOTICS,Logistics Industrial Robot, Hair Curler door-lock ,robots ,SMART HOME,Electric Bicycle Lock, Cosmetic Instrument

Motor Type

Brushless DC Motor

Rated Torque

0.1kgf.cm-30kgf.cm

Customized

Accepted

Direction of motor

CW/CCW available

Protect Feature

Totally Enclosed

Gear ratio

1:4-1:832 or customized

Efficiency

90%-65%

OEM & ODM Service

Available

Shaft Diameter

φ4mm D-cut or customized

Certifications

CE,ROHS,ISO,IATF16949

Noise

≤55DB

MOQ

1000Pcs

Encoder

available,3ppr/7ppr/12ppr

Gearbox Diameter

φ22mm ,Customer's Request

Shaft type

Threaded shaft, circlip groove,Flat,D-cut ,Round ,a hole or Customer's Request

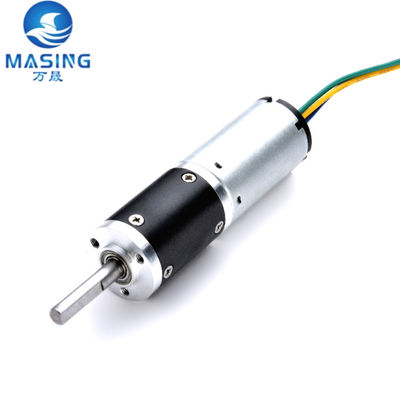

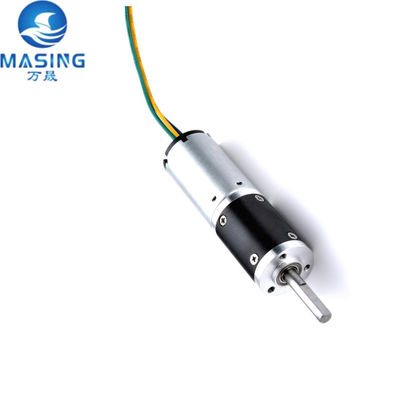

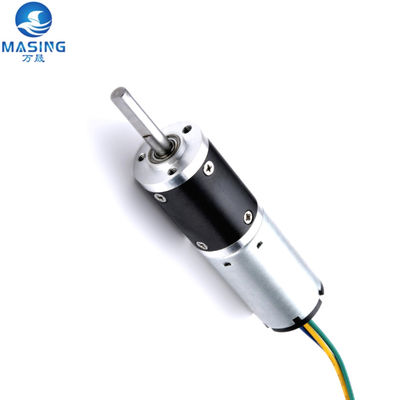

Product Photo:

6V 12V DC Brushless Motor High Torque Planetary DC Geared Motor With Gearbox 22MM 0

Product Spec:

22mm DC Brushless Planetary Gear Motor Typical Applications:

office supplies, power tools, medical equipment,precision instruments, automotive electronics

Upscale Toy,ROBOTICS,Home Appliance,door-lock ,robots ,SMART HOME,Electric Bicycle Lock,Cosmetic Instrument.,

Logistics Industrial Robot And Hair Curler

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

6V 12V DC Brushless Motor High Torque Planetary DC Geared Motor With Gearbox 22MM 3

Gearbox Data:
Number of Stages	1			2			3			4
Reduction Ratio(K)	4/5			16/20/22/25/27.5			64/80/88/100/110/125/ 138/151			256/320/352/400/500/550/625 /688/756/832
Length of Gear box L(mm)	23.5			28.5			33.5			38.5
Rated Torque(kg-cm)	3			6			9			15
Transient Torque(kg-cm)	6			10			20			35
Efficiency(%)	90%			81%			73%			65%
Remarks	Output torque =motor torquereduction ratiogear box efficiency Output speed =motor speed/reduction ratio
Motor Data:
Motor Model	Voltage		No Load			At Maximum Efficiency						Stall
	Operating Range	Rated	Current		Speed	Current	Speed	Torque	Power		Efficiency	Current	Torque
			A		rpm	A	rpm	g-cm	W		%	A	g-cm
BL2230***	8~28V	6.0V	0.08		8500	0.38	7030	19	1.37		59.4	1.84	109
BL2238***	8~28V	12V	0.20		10625	0.93	8739	87.6	7.9		70.7	4.30	493

Packaging and delivery:

Packaging Details

Strong Carton 200pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

165g

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$15 or Negotiable

Certifications:

Factory Show:

Product Classification:

Applications:

Upscale Toy,ROBOTICS Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,

Security monitoring,5G communication,Smart home,door-lock ,robots ,Electric Bicycle Lock,Cosmetic Instrument.

FAQ

Q1:Are you trading company or manufacturing ?

A1:We are factory for micro motors and dc gear motors, we can design and produce motors on demand.

Q2:How to order?

A2:Send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production→cargo ready → balance/delivery → further coop

Q3: How about Sample order?

A3:Sample is available for you. please contact us for details. Contact us

Q4: About customized gearbox?

A4:As a gearbox manufacturer with R & D capability, we support customers to provide us with gearbox shape, required reduction ratio and output speed We will develop customized products for you Or you can provide your own R & D products, and we will optimize the structure, production and assembly for you

Q5: Which shipping way is avaliable??
A5:DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.

Q6:How to confirm the payment?
A6: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
