BL2838 Brushless DC Gear Motor 12V 24 Volt BLDC Motor With 28mm Planeraty Gear Box

BL2838 Brushless DC Gear Motor 12V 24 Volt BLDC Motor With 28mm Planeraty Gear Box

Brand Name:	Masing Motor
Model Number:	MSPG28BL2838
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ISO CE ROHS 16949

Product Name:

Brushless Planetary Gear Motor 24v

Shaft Type:

Round ,D-cut,Flat ,threaded Shaft ,ect

Efficiency:

High Efficiency 90%-65%

Rated Speed:

Customizable

Gearbox Diameter:

φ28mm

Gearbox Type:

Planetary Gearbox

Rted Voltage:

6v-24v

Motor Type:

BLDC 2838 Motor

Materail:

Metal Rohs

Reduction Ratio:

Customized 1:4-1:832

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Highlight:

BLDC Gear Motor 24V

Brushless DC Gear Motor 12V

24 Volt BLDC Motor

Product Description

BL2838 Brushless DC Gear Motor 12V 24 Volt BLDC Motor With 28mm Planetary Gear Box

Product Overview

Model: PG28BL2838 | Product Name: 2838 Brushless DC Planetary Gear Motor

Rated Speed: 5rpm-2000RPM (customizable)
Constant rotating speed with custom specifications available
Gearbox Size: φ28mm diameter
Motor Type: Brushless Motor
Motor Size: φ28mm × L38mm
Reduction Ratio: 1:4 to 1:832
Gearbox Length Options: 23.2mm, 28.9mm, 34.6mm, 40.3mm
Working Temperature: -40°C to +60°C
Power: 0.5W-50W | Maximum Torque: 50kg·cm
Certifications: CE, RoHS, ISO9001, REACH, 16949

Key Specifications

Parameter	Specification
Speed (RPM)	5rpm-2000rpm
Efficiency	90%-65%
Warranty	3 Months - 1 Year
Place of Origin	Guangdong, China
Brand Name	Masing Motor
Model Number	MSPG28BL2838
Gearbox Type	φ28mm Planetary Gearbox
Torque	0.2NM-2NM
Construction	Permanent Magnet
Commutation	Brushless
Protection Feature	Totally Enclosed
Noise Level	≤55dB
MOQ	1000 Pcs
Rated Power	1W-30W
Gear Material	Metal RoHS

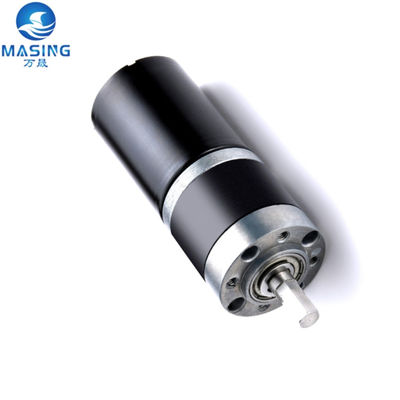

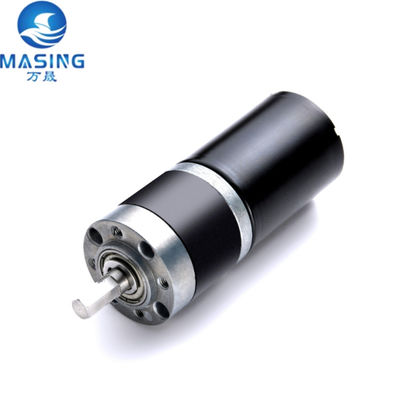

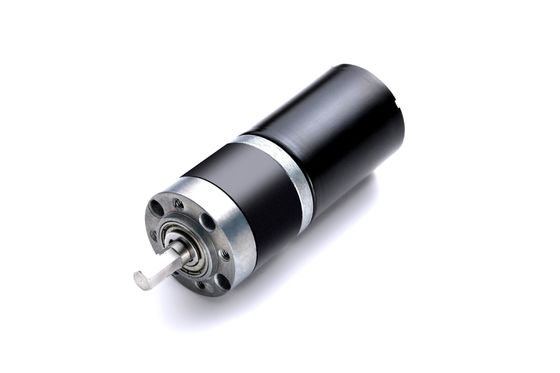

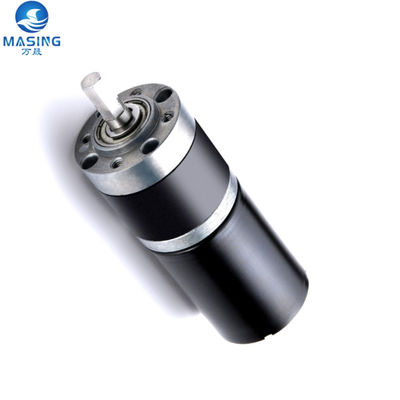

Product Images

Technical Specifications

Typical Applications: Smart home, robots, office supplies, power tools, medical equipment, precision instruments, automotive electronics

Voltage, rated torque, speed, current, power and shaft size can be customized as required.

Gearbox Data

Number of Stages	1	2	3	4
Reduction Ratio (K)	4/5	16/20/22/25/27.5	64/80/88/100/110/125/138/151	256/320/352/400/500/550/625/688/756/832
Length of Gear box L(mm)	23.2	28.9	34.6	40.3
Rated Torque (kg-cm)	3	6	9	17
Transient Torque (kg-cm)	6	10	20	35
Efficiency (%)	90%	81%	73%	65%

Motor Data

Motor Model	Voltage	No Load	At Maximum Efficiency					Stall
	Operating Range	Current (A)	Speed (rpm)	Current (A)	Speed (rpm)	Torque (g-cm)	Power (W)	Efficiency (%)	Current (A)	Torque (g-cm)
BL2832***	9~16V	0.30	10600	1.04	7667	129	10.2	82.2	2.3	420
BL2838***	19~26V	0.10	6400	0.31	4850	104	5.1	67.5	1.0	434

Packaging & Delivery

Packaging: Strong Carton (100pcs/box) or custom packaging available
Port: Shenzhen/Guangzhou/Shanghai
Selling Units: Single item
Package Size: 37×27×24cm
Gross Weight: 400g
Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples

Maximum order quantity: 1 piece
Sample price: $15/piece or negotiable

Certifications & Factory

Applications

Smart home, smart door locks, personal care, artificial intelligence, automobiles, model airplanes, security, small home appliances, models, power tools, communication equipment, medical devices, health care equipment, toys and fitness equipment.

Frequently Asked Questions

Q1: Are you factory or trading company?

A1: Yes, we are factory. Main products include micro geared motors, brushless DC motors, DC motors and DC planetary gearboxes.

Q2: Why should I choose your products?

A2: Our products are high quality and competitively priced.

Q3: Can the logo and color be customized?

A3: Yes, we welcome custom sample orders.

Q4: What other services does your company provide?

A4: We provide excellent after-sales service and fast delivery.

Q5: Do you offer customized gearboxes?

A5: As a gearbox manufacturer with R&D capability, we support customers who provide gearbox specifications, required reduction ratio and output speed. We will develop customized products for you, or optimize your existing R&D products for production and assembly.

Q6: Can you provide OEM or ODM service?

A6: Yes, OEM and ODM services are both available.

Q7: What is your product guarantee?

A7: We provide technical support and spare parts for repairs if any quality problems occur, and will follow up until you are satisfied.
