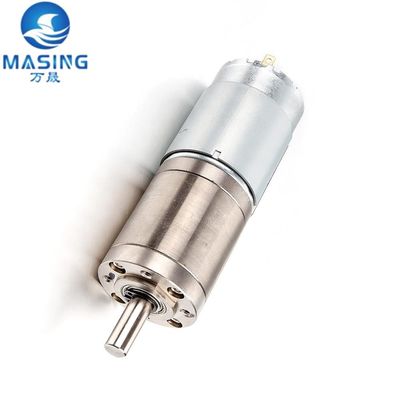

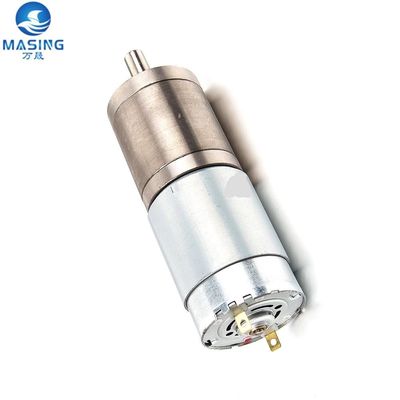

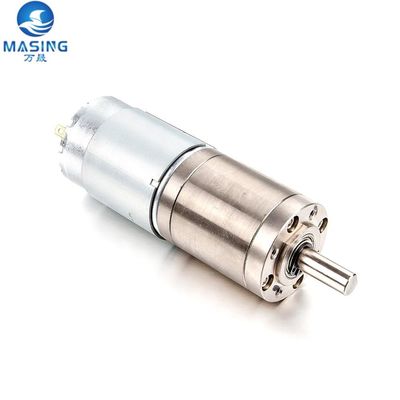

High Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum Cleaner

Name: High Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum Cleaner
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MSGM36P545
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MSGM36P545
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	1000000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

RohS,CE,ISO

Product Name:

24v Dc Planetary Gear Motor

Shaft Diameter:

φ8mm,φ10mm

Motor Size:

φ36mm*L50mm,φ36mm*L57mm

Gearbox Efficiency:

90%-65%

Shaft Type:

Customization Available

Direction:

CW&CCW

Power:

1w-100w

Torque:

0.1Nm-10Nm

Gearbox Diameter:

φ 36mm Metal Gearbox

Gears Material:

Copper ,steel,Powder Metallurgy Ect

Packaging Details:

Carton box

Supply Ability:

1000000piece/per month

Highlight:

RS-545 DC Motor

High Torque Planetary Gearbox 12V

High Torque Planetary Gearbox 36mm

Product Description

High Torque Planetary Gearbox 12V 36mm RS-545 DC Motor For Vacuum Cleaner

Product Overview

High Torque Reducer RS-545 Motor DC Motor Micro Planetary Gear Motor 12V 36mm Planetary Gearbox designed for vacuum cleaners and various automation applications.

Rated Voltage: 6V-24V DC
Compatible Motor Types: RS-540, RS-545, RS-550, RS-555
Magnetic Selection: Ordinary magnetic, strong magnetic
Output Speed: 2rpm - 1000rpm
Rated Torque: 0.1NM - 10NM
Motor Power: 1W - 100W
Gearbox Diameter: φ36mm
Working Temperature: -40°C to +60°C
Motor Life: 500H - 3000H
Certifications: CE, Rohs, ISO
Efficiency: 90% to 66%

Technical Specifications

Speed (RPM)

2-1000 rpm (customized)

Continuous Current

20mA - 1A

Efficiency

90% - 65%

Model Number

MSGM36P545

Shaft Diameter

φ8mm or φ10mm (customized)

Torque

0.1NM - 10NM

Construction

Permanent Magnet

Noise Level

≤55DB

Weight

500g

MOQ

1000 Pcs

Product Images

Gearbox Performance Data

Number of Stages	Reduction Ratio	Gearbox Length "L"	Gearbox Efficiency
1	3.71, 5.18	24.6	90%
2	13.8, 19.2, 26.9	31.8	81%
3	51, 71, 100, 139	39	73%
4	190, 265, 369, 516, 721	46.2	66%

Motor Performance Characteristics

Model Number	Rated Voltage	No Load Speed (rpm)	No Load Current (mA)	Load Speed (rpm)	Load Current (mA)	Torque (Kgf.cm)	Power (W)
GM26P5550126000-5.2K	12V	1153	650	960	3000	1.2	11.8
GM26P5550128000-14K	12V	571	900	465	3500	4	19.1
GM26P5550126000-27K	12V	223	400	175	1600	4.2	7.5

Note: The left side of redline area can continuously work. Please refer to the rated voltage used by our motor. Voltage exceeding the range may cause the machine to burn.

Applications

Robotics Automation
Smart Home Systems
Electric Curtains
Vacuum Cleaners
Medical Imaging Equipment
Manufacturing Plant Robots
Power Tools
Personal Care Devices

Packaging & Delivery

Packaging

Strong Carton 100pcs/box

Port

Shenzhen/Guangzhou/Shanghai

Package Size

37×27×24cm

Gross Weight

500g

Lead Time

Quantity (pieces)	Lead Time (days)
1 - 100	10
101 - 1000	15
> 5000	To be negotiated

Samples & Customization

Maximum Sample Quantity: 1 piece
Sample Price: $15/piece
Customization Support: OEM, ODM, OBM
Supply Ability: 100,000 pieces per month

Frequently Asked Questions

Q1: Can you customize according to my specification?

A1: Sure, we have a professional R&D centre and can customize according to your specifications.

Q2: How to select a suitable motor?

A2: Please provide motor pictures, drawings, or detailed specs like voltage, speed, torque, motor size, working mode, needed lifetime and noise level. We will recommend suitable motors accordingly.

Q3: What's the main usage of the micro DC gear motor?

A3: Our motors are widely used in Home Appliances, Office Equipment, Health-care appliances, Sanitation industry, High-class toys, Banking Systems, Electronic and electrical tools, automation industry, and various industrial applications.

Q4: Do you have a customized service for your standard motors?

A4: Yes, we can customize voltage, speed, torque, shaft size/shape, and add wires/cables, connectors, capacitors, or EMC components as needed.

Q5: What if I don't know the technical data?

A5: Please contact our sales team - we'll answer your questions patiently and help you select the right motor.

Q6: What's your lead time?

A6: Standard products: 25-30 days. Customized products may take longer. Lead times are flexible and depend on specific order requirements.
