High Torque DC 5V 22mm Planetary Gear Reduction Gearbox DC Motor For Automatic Blinds

High Torque DC 5V 22mm Planetary Gear Reduction Gearbox DC Motor For Automatic Blinds

Brand Name:	Masing Motor
Model Number:	MS22P180
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO CE ROHS

Product Name:

12v Dc Planetary Gear Motor

Shaft Size:

Customized φ6 φ5 φ4

Shaft Material:

Stainless Steel Shaft Or Carbon Steel Shaft

Rate Speed:

2rpm-1000rpm

Protect Feature:

Totally Enclosed

Gearbox:

22mm Planetary Gearbox

Gear Material:

Copper,steel Ect

Match Motor:

FF-130 FF-180 Micro Dc Motor

Rotating Direction:

CW&CCW

Construction:

Permanent Magnet

Torque:

0.5-10kgf.cm

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Highlight:

Gear Reduction Gearbox DC Motor

5V DC Reduction Gear Motor

22mm Planetary Gear Motor

Product Description

Title:

Dc Planetary Gear Motor 22mm Planetary Gearbox and Brushed micro DC reduction Motor 12v/24v Geared Motor For Robots,Smart Home

Description:

Model: MSGM22P-180,MSGM22P-130 Product Name: 12v dc planetary gear motor
Rated Speed:2RPM-1000RPM
Rotating speed is constant and can be made as you required.
Gearbox Size: 22mm diameter high torque planetary gear dc motor
Gearbox Material:Metal ,Plastic
Shaft Material :Stainless steel shaft and carbon steel shaft
Suitable to small diameter, low noise and big torque application
Motor default direction:CW&CCW
Working temperature:-40~+60°c
Power:0.1W-8W torque: 0.1-10kgf. cm
Motor type: carbon brush/Metal Brush
Scope of use: Robots ,Surveillance, smart curtain, water meter, electric drill People, Cosmetic instrument,Electric Sanitary Ware, Intelligent Electric, Aviation Model · Field Machinery, Consumer Electronics, Automotive Electronics, Intelligent Machine Home Automation, Production Automation, Medical Equipment,
High Efficiency and Performance: 1.2v-24v DC Spur Geared Motor offers an efficiency of 70%
We can provide samples for your test.

Key attributes:

Speed(RPM)

planetary dc gear motor 2rpm-1000rpm

Continuous Current(A)

Customized

Efficiency

IE 2

Warranty

Others

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MSGM22P180

Use

Automatic Blinds,door-lock ,robots ,SMART HOME,Electric Bicycle Lock, Cosmetic Instrument

Type

22mm micro planetary gear motor

Torque

0.1-10kg.cm

Construction

Permanent Magnet

Match Motor

FF-130 FF-180 Micro Brush Motor

Protect Feature

Totally Enclosed

Product Name

180 micro planetary gear reduction dc motor

Application

Surveillance, smart curtain, water meter, electric drill

Shaft diameter

φ4,φ5,φ6,

Gearbox Diameter

22mm planetary gearbox

Direction

CW&CCW

Noise

≤55DB

MOQ

1000Pcs

Rated Power

0.5w-10w Customized

Gear Material

Copper ,steel ,Powder metallurgy ect

Function

Driven Equipment

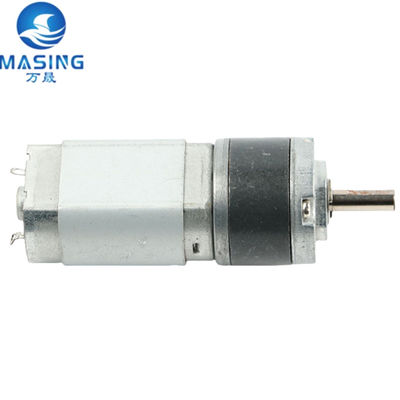

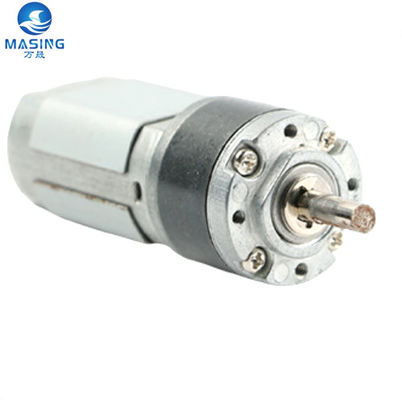

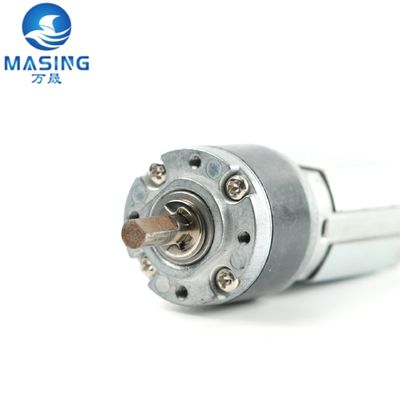

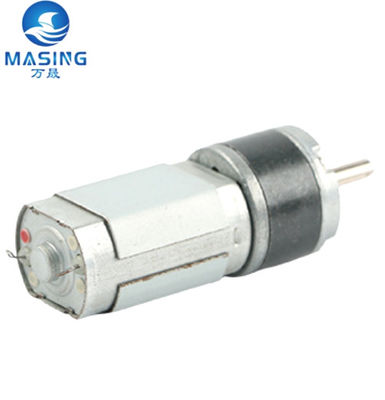

Product Photo:

High Torque DC 5V 22mm Planetary Gear Reduction Gearbox DC Motor For Automatic Blinds 0

Product Spec:

Micro 22mm DC Planetary Gear Motor Typical Applications:

Surveillance, smart curtain, water meter, electric drill,door-lock ,robots ,SMART HOME,Electric Bicycle Lock,Cosmetic Instrument.

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

High Torque DC 5V 22mm Planetary Gear Reduction Gearbox DC Motor For Automatic Blinds 3

Voltage	Range	V						PGM22-180 6.0-18.0V								-12120
Voltage	Rated	V							DC	12V
Reducer	Ratio	i:1	4	4.75	12	16	24	43	64	107	171	256	361	509	756	1026
Reducer	Size "L"	mm	15.9	15.9	19.4	19.4	19.4	22.9	22.9	22.9	22.9	26.4	26.4	26.4	26.4	26.4
No Load	Speed	rpm	3000	2526	1000	750	500	279	188	112	70	47	33	24	16	12
No Load	Current	mA	200	200	200	200	200	200	200	200	200	200	200	200	200	200
Rated Load	Speed	rpm	257	2165	857	643	429	239	161	96	60	40	28	20	14	10
	Torque	Kgf.cm	0.11	0.12	0.28	0.37	0.56	0.9	1.34	2.23	3.57	4.75	6.7	9.5	14	19.1
	Current	mA	600	600	600	600	600	600	600	600	600	600	600	600	600	600
Stall Load	Torque	Kgf cm	0.72	0.85	1.95	2.6	3.89	6.28	9.34	15.6	25	MAXLoad 25kg.cm,No Stall /禁止堵转
Stall Load	Current	A	3	3	3	3	3	3	3	3	3	3	3	3	3	3
Weight		g	90	90	90	90	90	90	90	90	90	90	90	90	90	90

Voltage	Range	V						PGM22-180 6.0-18.0V								-12120
Voltage	Rated	V							DC	12V
Reducer	Ratio	i:1	4	4.75	12	16	24	43	64	107	171	256	361	509	756	1026
Reducer	Size "L"	mm	15.9	15.9	19.4	19.4	19.4	22.9	22.9	22.9	22.9	26.4	26.4	26.4	26.4	26.4
No Load	Speed	rpm	3000	2526	1000	750	500	279	188	112	70	47	33	24	16	12
No Load	Current	mA	200	200	200	200	200	200	200	200	200	200	200	200	200	200
Rated Load	Speed	rpm	257	2165	857	643	429	239	161	96	60	40	28	20	14	10
	Torque	Kgf.cm	0.11	0.12	0.28	0.37	0.56	0.9	1.34	2.23	3.57	4.75	6.7	9.5	14	19.1
	Current	mA	600	600	600	600	600	600	600	600	600	600	600	600	600	600
Stall Load	Torque	Kgf cm	0.72	0.85	1.95	2.6	3.89	6.28	9.34	15.6	25	MAXLoad 25kg.cm,No Stall /禁止堵转
Stall Load	Current	A	3	3	3	3	3	3	3	3	3	3	3	3	3	3
Weight		g	90	90	90	90	90	90	90	90	90	90	90	90	90	90

Packaging and delivery:

Packaging Details

Strong Carton 400pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

20.0kg

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$15/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home,door-lock ,robots ,Electric Bicycle Lock,Cosmetic Instrument,Surveillance, smart curtain,

water meter, electric drill

FAQ

Q1: What is the quality of the planetary reducer?

A1:At present, our gear motors have been sold to Japan, Germany, the United States, the United Kingdom, Indonesia, Singapore and other countries Most customers will give me feedback, saying that they operate well, have low noise and large torque, which is exactly the product they are looking for I think this should be the best word of mouth for our products

Q2:Are you trading or manufacturing?

A2:We are factory for micro motors and dc gear motors ect, we can design and produce motors on demands.

Q4: Can I visit your company?

A4:Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us

Q5: How can you guarantee the quality ?

A5:We have 100%finished product inspection before delivery and no defective productsreturned.

Q6: How to confirm the payment?
A6: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.

Q7:What's the lead time for samples or mass production?
A7: Normally, it takes 15-25 days to produce samples; about mass production, it will take 35-40 days for DC motor production and 45-60 days for gear motor production.
