22mm Planetary Gearbox And Brushed Micro DC Reduction Motor 12V 24V Geared Motor With Encoder

Name: 22mm Planetary Gearbox And Brushed Micro DC Reduction Motor 12V 24V Geared Motor With Encoder
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MS22P180
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MS22P180
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ISO CE ROHS

Product Name:

22mm Gearbox Dc Planetary Gear Motor

Shaft:

Customized

Efficiency:

IE 4

Speed:

5-1000rpm

Diameter:

22mm Gearbox

Gearbox:

22mm Planetary Gearbox

Gears:

Customized

Micro Motor:

180 Dc Motor

Materail:

Metal Rohs

Reduction Ratio:

Customized

Torque:

0.1-10kg,com

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Highlight:

22mm Planetary Gearbox

12V Geared Motor

24V Geared Motor

Product Description

22mm Planetary Gearbox and Brushed Micro DC Reduction Motor 12V/24V with Encoder

DC Planetary Gear Motor 22mm planetary gearbox and brushed micro DC reduction motor 12V/24V geared motor for robots and smart home applications.

Product Specifications

Model: PGM22-180
Product Name: Planetary Reduction Motor
Speed: 5-1000 RPM
Gearbox Size: 22mm diameter planetary gear DC motor
Working Temperature: -40°C to +60°C
Power: 4.5W
Maximum Torque: 19 kg.cm
Motor Type: Carbon Brush / Metal Brush
Noise Level: ≤55 dB
Direction: CW & CCW

Applications

People, Electric Sanitary Ware, Intelligent Electric, Aviation Model, Field Machinery, Consumer Electronics, Automotive Electronics, Intelligent Machine Home Automation, Production Automation, Medical Equipment, Security Devices, Door-lock, Robots, SMART HOME, Electric Bicycle Lock, Cosmetic Instrument.

Key Attributes

Speed (RPM)
2-1000 rpm

Continuous Current
10-500 mA

Efficiency
57-90%

Warranty
3 Months - 1 Year

Place of Origin
Guangdong, China

Brand Name
Masing Motor

Model Number
MS22P180 with Encoder

MOQ
1000 Pcs

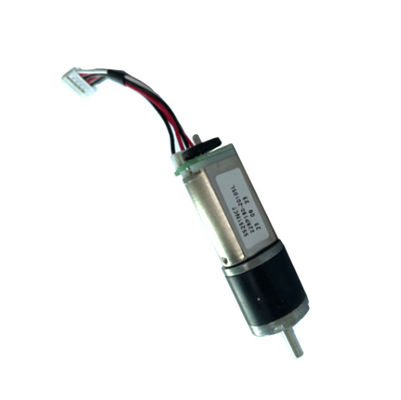

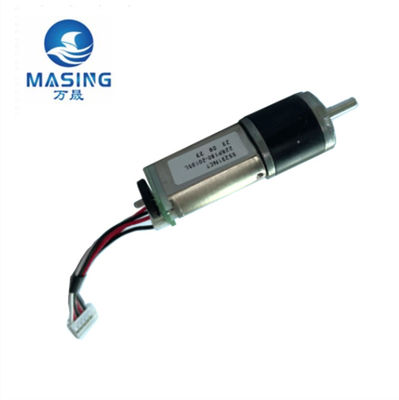

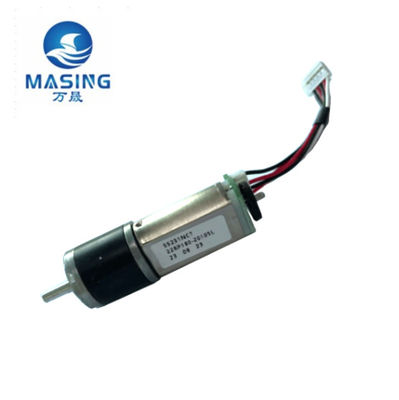

Product Photos

Technical Specifications

Micro 22mm DC Planetary Gear Motor - Typical Applications: door-lock, robots, SMART HOME, Electric Bicycle Lock, Cosmetic Instrument. Voltage, rated torque, speed, current, power and shaft size can be customized as required.

Packaging and Delivery

Packaging: Strong Carton 400pcs/box, or as requested
Port: Shenzhen/Guangzhou/Shanghai
Selling Units: Single item
Package Size: 37×27×24 cm
Gross Weight: 20.0 kg

Supply Capacity

100,000 Piece/Pieces per Month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples

Maximum Order Quantity: 1 piece
Sample Price: $15/piece

Certifications

Factory Show

Product Classification

Applications

Driverless, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Smart home, door-lock, robots, Electric Bicycle Lock, Cosmetic Instrument.

Frequently Asked Questions

Q1: Are you a factory?

A1: Yes, we are a factory. Our main products include micro geared motors, brushless DC motors, DC motors, and DC planetary gearboxes.

Q2: What is the quality of the planetary reducer?

A2: Our gear motors have been sold to Japan, Germany, the United States, the United Kingdom, Indonesia, Singapore and other countries. Customers report excellent operation, low noise, and high torque - exactly the product they are looking for.

Q3: About customized gearbox?

A3: As a gearbox manufacturer with R&D capability, we support customers who provide gearbox shape, required reduction ratio, and output speed. We will develop customized products for you, or optimize your existing R&D products for structure, production, and assembly.

Q4: Can we test samples?

A4: Yes, we have an R&D and Testing Center. Customized samples and freight are charged.

Q5: How to confirm the payment?

A5: We accept payment by T/T, PayPal, and other payment methods (please contact us first). A 30-50% deposit is available, with the balance paid before shipping.

Q6: How can you guarantee the quality?

A6: We perform 100% finished product inspection before delivery and accept no defective product returns.

Q7: How long is the delivery?

A7: Delivery time depends on order quantity, usually 15-25 working days.
