3V 5V Mini Reduction Gear Motor 12mm N20 Gear Motor Planetary Reduction Gearbox Low Noise

3V 5V Mini Reduction Gear Motor 12mm N20 Gear Motor Planetary Reduction Gearbox Low Noise

Brand Name:	Masing Motor
Model Number:	MS12PN20
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS

Material:

RohS

Shaft:

D-Cut Or Round Or Double D-cut

Motor Spec:

Customization

Toque:

Customization

DC Motor:

N10 N20 N30 DC Motor

Gearbox:

Planetary Gear

Gear:

Metal Gears/Plastic Gears

Micro Motor:

N20 DC Motor

Key Words:

N20 Dc Planetary G Ear Motor

Speed:

Customized

Noise:

Low Noise

Size:

12mm Gearbox

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Highlight:

Mini Reduction Gear Motor

N20 Gear Motor

Planetary Reduction Gearbox Low Noise

Product Description

3V 5V Mini Reduction Gear Motor 12mm N20 Gear Motor Planetary Reduction Gearbox Low Noise

Product Overview

DC Planetary Gear Motor 12mm 3V 5V Mini Reduction Gearmotor N20 gear motor with encoder Planetary Reduction Gearbox. 12mm plastic gearbox with FF-N20 micro DC motor. N20 DC motor plastic planetary gear 12v electric motor for door-lock applications.

Key Features

High Efficiency and Performance: 70% efficiency for optimal performance in various applications
Low Noise and High Torque: 0.5-2.0kg.cm torque with minimal noise operation
Customizable Options: Various diameter options and customizable colors
Durable and Long-Lasting: Totally enclosed design with permanent magnet construction
Optional Encoder Available: Optical encoder for accurate speed control and position feedback

Technical Specifications

Speed: 5-1000 rpm
Continuous Current: 20-300mA
Efficiency: 70%
Type: Brush DC Motor
Torque: 0.5-2.0 kg.cm
Construction: Permanent Magnet DC Planetary Gear Motor
Diameter: 12mm
Weight: 20g
Noise: ≤55DB
Protection: Totally Enclosed
Encoder: Optical Encoder (Optional)
Color: Customer's Request
MOQ: 1000Pcs

Applications

door-lock, robots, SMART HOME, Electric Bicycle Lock, Cosmetic Instrument, Driverless systems, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication

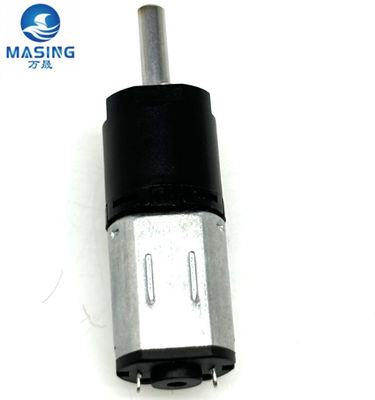

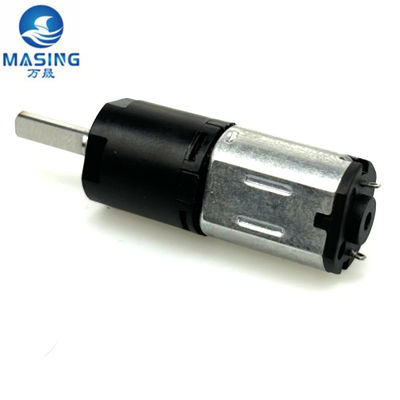

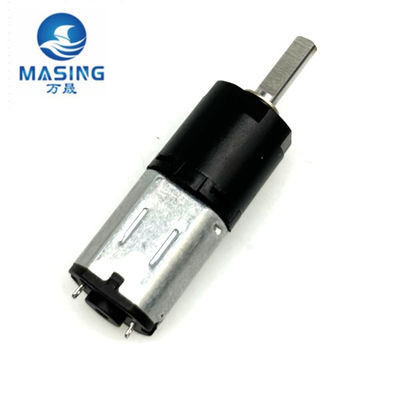

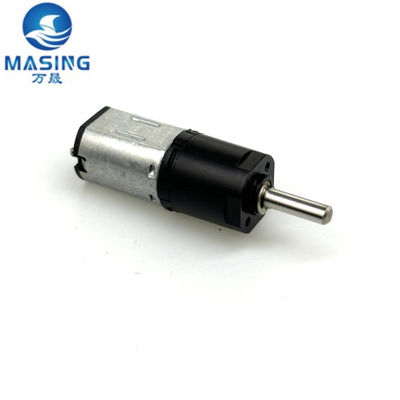

Product Images

Technical Specifications

Packaging & Delivery

Packaging: Strong Carton 400pcs/box, or as requested
Port: Shenzhen/Guangzhou/Shanghai
Package Size: 37×27×24cm
Gross Weight: 10.0kg
Selling Units: Single item

Supply & Lead Time

Supply Ability: 100,000 pieces per month

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples

Maximum Order Quantity: 1 piece
Sample Price: $15/piece

Certifications & Factory

Frequently Asked Questions

Q1. Are you a factory?

A: Yes, we are a factory. Main products include micro geared motors, brushless DC motors, DC motors, and DC planetary gear boxes.

Q2. How can you guarantee the quality?

A: We have 100% finished product inspection before delivery and no defective products returned.

Q3. How long is the delivery time?

A: Delivery time depends on the quantity you order. Usually it takes 15-25 working days.

Q4. Can we test samples?

A: Yes, we have R&D and Testing Center. Customized samples and freight are charged.

Q5. How to confirm the payment?

A: We accept payment by T/T, PayPal. Other payment methods can be accepted upon request. 30-50% deposit is available, with balance paid before shipping.
