12mm N10 Micro Brushed Gear Motor 24V DC Geared Motor with Encoder Smart Lock

Brand Name:	Masing Motor
Model Number:	MS-GM12N20-EN
MOQ:	1000 Pieces
Price:	USD 2.5-5/ Piece
Payment Terms:	T/T,PayPal,Western Union
Supply Ability:	100000 Pieces per Month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, RoHS, ISO, IATF16949

Product Name:

24V N10 DC Gear Motor With Encoder

Gearbox Diameter:

12mm

Motor Type:

N10 Brushed DC Gear Motor

Rated Voltage:

DC 1.2V-24V

Rated Speed:

5-3000 RPM

Rated Torque:

0.05-2 Kgf.cm

Encoder:

Magnetic Encoder 12PPR / 24PPR

Shaft Diameter:

3mm / 4mm Or Customized

Noise Level:

55 DB

Application:

Smart Lock, Electronic Lock, Robot

OEM & ODM:

Accepted

Packaging Details:

Strong export carton 1000pcs/box, or as your request

Supply Ability:

100000 Pieces per Month

Highlight:

24V DC Gear Motor

DC Gear Motor With Encoder

DC Gear Motor For Smart Lock

Product Description

Product Overview

Compact 24V DC gear motor with encoder built on a 12mm N10 micro brushed platform, purpose-made for smart lock, electronic lock, and precision drive applications. The integrated magnetic encoder delivers accurate speed and position feedback, while the metal spur gearbox provides high torque in a miniature footprint.

Key Features

24V DC gear motor with built-in magnetic encoder for closed-loop control
12mm micro metal gearbox, high torque in a compact size
Ideal DC gear motor for smart lock and electronic door lock systems
Low noise operation at or below 55 dB
Voltage, speed, torque, and shaft fully customizable
RoHS, CE, ISO, and IATF16949 compliant manufacturing

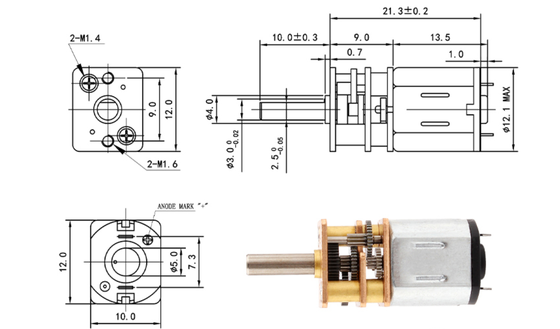

Technical Specifications

Rated Voltage	DC 1.2V – 24V
Rated Speed	5 RPM – 3000 RPM
Motor Size	12mm x L15mm
Gearbox Size	12mm x 10mm
Rated Torque	0.05 kgf.cm – 2 kgf.cm
Shaft Diameter	3mm, 4mm or Customized
Encoder	Magnetic, 12PPR / 24PPR
Rotation	CW and CCW Available
Noise Level	55 dB Max
Weight	10g

Reduction Ratios

Standard ratios: 1:10, 1:20, 1:30, 1:50, 1:75, 1:100, 1:150, 1:210, 1:250, 1:298, 1:300, 1:500, 1:1000. Custom ratios available upon request.

Shaft Types

Round Type: DIA 3mm, 4mm, 5mm
D-cut Type: DIA3-D2.5, DIA4-D3, etc.
Screw Type: M3, M4, M5 Series
Other Types: Shaft with hole, custom designs

Key Attributes

Brand

Masing Motor

Model

MS-GM12N10-EN

Type

6V N10 Brushed DC Gear Motor with Encoder

Construction

Permanent Magnet

Commutation

Metal Brush / Carbon Brush

Gears

Metal Spur Gearbox, RoHS Compliant

Certifications

CE, RoHS, ISO, IATF16949

MOQ

1000 Pieces

Place of Origin

Guangdong, China

Typical Applications

Smart Lock: Electronic Door Lock, Cabinet Lock, Smart Lock Actuator
Robotics: Service Robot, 3D Printer, Precision Motion Control
Business Machines: ATM, Point of Sale, Printers
Medical: Insulin Pump, Hospital Bed, Precision Dispenser

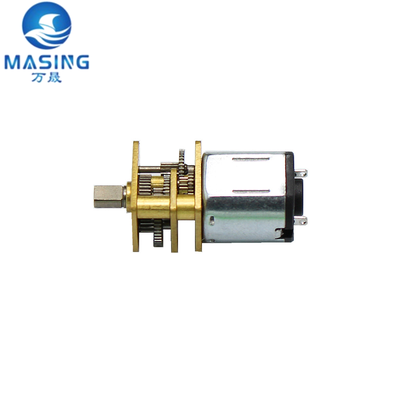

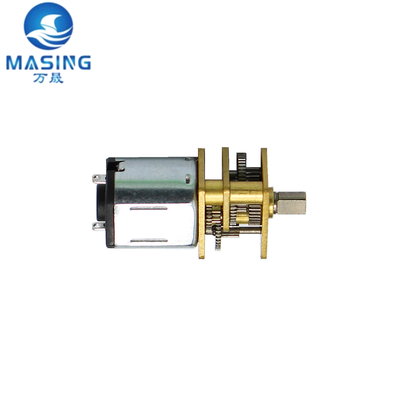

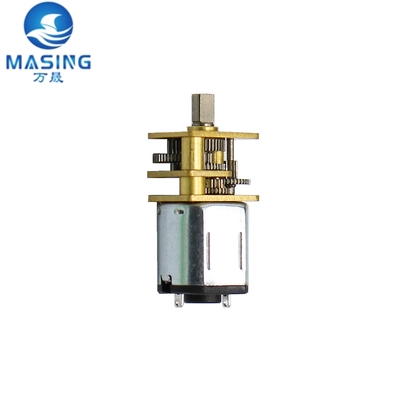

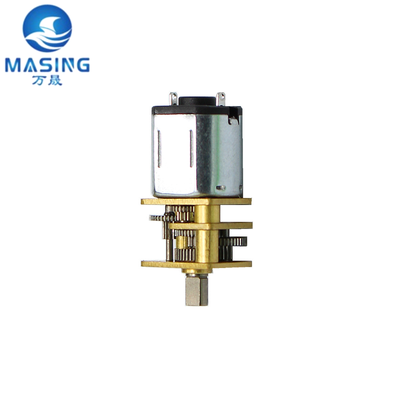

Product Images

Packaging & Delivery

Packaging	Strong Carton (1000pcs/box) or Custom
Port	Shenzhen / Guangzhou / Shanghai
Package Size	37 x 27 x 24 cm
Gross Weight	10.0 kg

Supply Capacity

100,000 Pieces per Month

Lead Time

Quantity (pieces)	1 – 100	101 – 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples

Maximum Order Quantity: 1 piece
Sample Price: $10/piece
Free sample testing available

Frequently Asked Questions

How does a gearbox work?

Inside a gearbox, various types of gears including spur, planetary, worm, and helical gears are mounted on shafts and rotate on rolling element bearings to transmit power and control speed.

What types of gearboxes are there?

The most common types are spur and planetary gearboxes. Spur gearboxes offer high efficiency and constant velocity; planetary gearboxes are ideal for high torque, low-speed applications.

How is the gear ratio defined?

The gear ratio is defined by the number of turns the output shaft makes when the input shaft rotates once. Higher ratios increase torque and reduce speed.

Do you support customization?

Yes. Voltage, speed, torque, shaft size and shape, encoder, wires, and connectors can all be customized to your requirement.
