25mm Gearbox DC Brush Motor 12V RF-310 Low Rpm Low Noise DC Motor For Meat Grinder

25mm Gearbox DC Brush Motor 12V RF-310 Low Rpm Low Noise DC Motor For Meat Grinder

Brand Name:	Masing Motor
Model Number:	MSGM25A310
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

16949,ROHS ,CE,ISO

Product Name:

Micro 12v Dc Gear Motor

Gearbox Dimension:

φ25mm

Protect Feature:

Totally Enclosed

Certification:

16949,EU,RoHS,CE,ISO

Direction Of Rotation:

CW/CCW Available

Gearbox Material:

Metal Gearbox

Gears Material:

Metal ,Steel .copper Plastic Gears Ect

Shaft Diameter:

φ4mm D-cut 3.5mm

Torque:

Customized

Motor Type:

RF-310 Or RF-370 DC Motor

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

DC Brush Motor Low Rpm

DC Brush Motor 12V

Low Rpm Low Noise DC Motor

Product Description

25mm Gearbox DC Brush Motor 12V RF-310 Low RPM Low Noise DC Motor

Product Overview

This 25mm gearbox DC brush motor features low RPM and low noise operation, specifically designed for meat grinders and intelligent car home equipment. With voltage range from 1.5V to 24V and customizable speed from 2RPM to 1000RPM.

Key Features

Voltage: DC 1.5V-24V
Rated Speed: 2RPM-1000RPM (Customizable)
Gearbox Diameter: Ø25mm Metal Gearbox
Reduction Ratio: Customized 1:10-1:1051
Motor Types: RF-300, RF-310, RF-370, RS-385, RS-365, RS-390
Brush Types: Metal Brush / Carbon Brush
Shaft Size: Ø4mm D-cut 3.5mm (Customizable)
Shaft Material: Carbon Steel or Stainless Steel
EU Environmental Standards: Low energy consumption, low noise
Durable drip-proof design for harsh environments

Technical Specifications

Parameter	Specification
Rated Voltage	12-24V
Reduction Ratio	4.4-500:1
No-load Speed	9-1977 RPM
No-Load Current	35-50mA
Rated Speed	6-1500 RPM
Rated Current	80-170mA
Rated Torque	0.03-7 kg.cm
Stall Torque	0.2-24 kg.cm
Stall Current	0.5-0.8A
Shaft Material	416 Steel, Φ4.0 Length 10mm
Gear Material	Powder Gear, Copper Gear

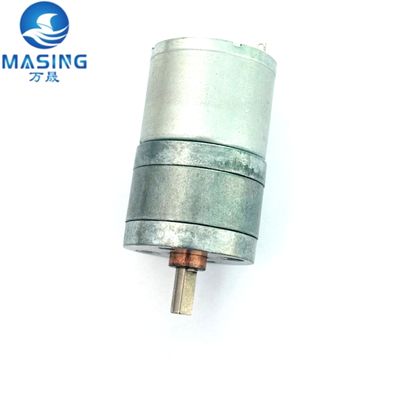

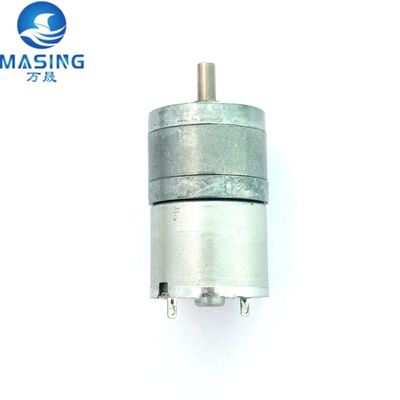

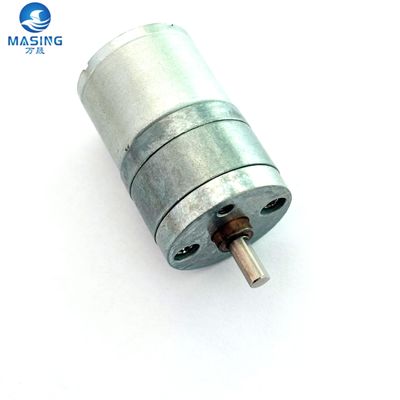

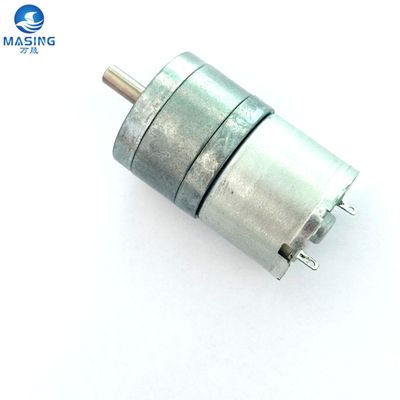

Product Images

Applications

Meat Grinders
Intelligent Car Systems
Home Equipment & Appliances
Robots & Robotics
Vending Machines
Medical Devices
Robot Vacuum Cleaners
Door Locks & Electronic Locks
Cameras & CCTV Systems
Public Bicycle Locks
Relays

Packaging & Delivery

Packaging: Strong Carton 1000pcs/box (Customizable)
Port: Shenzhen/Guangzhou/Shanghai
Single Package Size: 12×10×24mm
Single Gross Weight: 0.045kg
Supply Ability: 100,000 Pieces per Month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples & Certifications

Maximum Sample Quantity: 1 piece
Sample Price: $5/piece
Certifications: IATF 16949, EU, CE, RoHS, ISO

Frequently Asked Questions

Q1. What's the price?

A1: We're a professional manufacturer. The exact price is based on clients' specifications such as speed, voltage, etc.

Q2. What's the MOQ?

A2: MOQ is flexible depending on product complexity and production schedule. Please contact our sales team for confirmation.

Q3. Can you send samples before the order?

A3: Yes, we provide samples for quality confirmation. Shipping available via UPS, TNT, FEDEX, or DHL.

Q4. Can you make our logo on the products?

A4: Yes, logo customization is available for most products.

Q5. What's the payment term?

A5: Small amounts: 100% PayPal. Large amounts: 30% TT deposit, balance before shipping.

Important Note: Please use the motor within the rated voltage range. Exceeding the voltage range may cause motor damage.
