JS500 Diameter 32mm Rf-500 Plastic Gearbox DC Reduction Motor 5V For Pet Feeder Motor

JS500 Diameter 32mm Rf-500 Plastic Gearbox DC Reduction Motor 5V For Pet Feeder Motor

Brand Name:	Masing Motor
Model Number:	MSJS500
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS,ISO,CE,16949

Product Name:

5V Plastic Gearbox Motor

Shaft Type:

Flat ,D-Cut Or Round Or Double D-cut Or Customized

Protect Feature:

Totally Enclosed

Rated Voltage:

DC1.5V-12V Customized

Shaft Diameter:

φ6mm,φ7mm φ8mm Or Customized

Gearbox Diameter:

φ20mm Plastic Planetary Gearbox

Gearbox Materail:

Plastic Gearbox 50mm

Micro Motor:

RF-500T Or Rf-520C Dc Motor

Key Words:

50mm Plastic Micro Dc Gear Motor

Gears Materail:

Plastic Or Steel Or Customized

Direction:

CW/CCW

Price:

Lower Price

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Highlight:

32mm DC Reduction Motor

Plastic Gearbox DC Motor

DC Reduction Motor 5V

Product Description

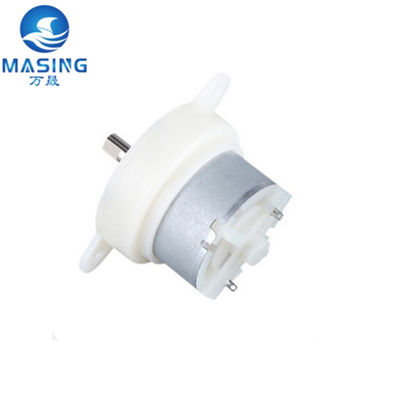

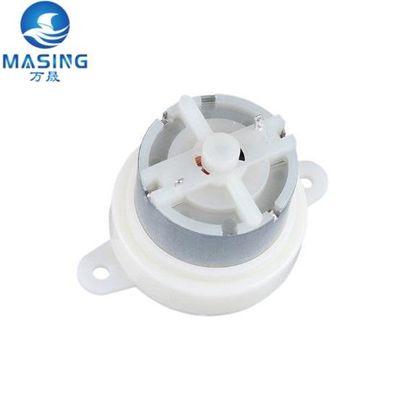

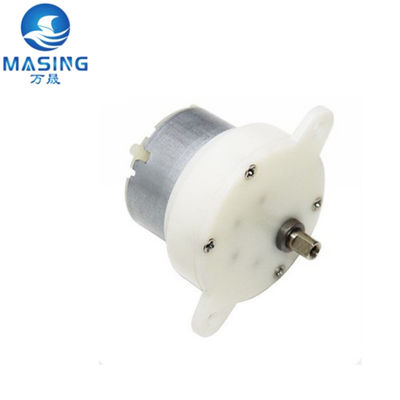

JS500 Diameter 32mm RF-500 Plastic Gearbox DC Reduction Motor 5V for Pet Feeder

Product Overview

High efficiency 5V DC spur geared motor designed for SMART HOME applications, cosmetic instruments, and pet feeders. Features constant rotating speed and customizable options.

Speed Range: 2.5rpm-200rpm (customizable)
Voltage: 1.2V-12V DC
Efficiency: 70%
Working Temperature: -40°C to +60°C
Noise Level: ≤55DB
Motor Direction: CW & CCW

Technical Specifications

Key Attributes

Continuous Current: 10mA-200mA
Torque: 0.01-5kg.cm
Construction: Permanent Magnet
Commutation: Metal/Carbon Brush
Protection: Totally Enclosed
Shaft Diameter: φ6mm, φ7mm, φ8mm or customized
Gears: Plastic gears

Performance Data

MODEL	VOLTAGE RANGE	NOMINAL VOLTAGE	NO-LOAD SPEED (r/min)	NO-LOAD CURRENT (A)	EFFICIENCY SPEED (r/min)	EFFICIENCY CURRENT (A)	TORQUE (mN.m)	OUTPUT (w)
MS-JS500-11590	9.0-13.0	12.0V	10	0.05	7.7	0.17	110.5	0.89
MS-JS500-071380	20.0-25.0	24.0V	60	0.02	45.6	0.06	1652	0.79

Applications

Home Appliance, door-lock, robots, SMART HOME, Electric Bicycle Lock, Cosmetic Instrument, Logistics Industrial Robot, Hair Curler, Driverless systems, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication.

Product Images

Ordering Information

Packaging & Delivery

Packaging: Strong Carton 400pcs/box, or customized
Port: Shenzhen/Guangzhou/Shanghai
Package Size: 37×27×24cm
Gross Weight: 10.0kg
Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	Lead Time (days)
1 - 100	10
101 - 1000	15
> 1000	To be negotiated

Samples

Maximum order quantity: 1 piece
Sample price: $5/piece
Sample fee refundable on formal order

Certifications & Quality

Certifications: CE, ROHS, ISO, IATF16949

Quality Control: Professional checking staff on every production line process. Complete testing with Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester.

15 years experience in gear and motor design with 100% inspection before shipment.

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A1: We're a factory specializing in micro DC motors and DC gear motors.

Q2: Can you customize motors according to requirements?

A2: Yes, we can customize suitable motors according to customer requirements.

Q3: How about sample orders?

A3: Samples are available. Sample fee is refundable when you place a formal order.

Q4: Do you have certificates for the motors?

A4: Yes, we have CE, RoHS, ISO, IATF16949, etc. Other certificates can be applied for upon request.

Q5: How to confirm payment?

A5: We accept T/T, PayPal, and other payment methods. 30-50% deposit available, balance paid before shipping.

Q6: How is your quality control?

A6: Professional checking staff on every production line with complete testing equipment including Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester.
