RF-310 High Power DC Gear Motor 6V 12V Spur Geared Motor Low Speed For Milk Shaker Massager

RF-310 High Power DC Gear Motor 6V 12V Spur Geared Motor Low Speed For Milk Shaker Massager

Brand Name:	Masing Motor
Model Number:	MSGM25A310
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS CE ISO 16949

Product Name:

Dc Gear Motor 12v

Gearbox Shaft:

φ4mm Diameter

Motor Tpye:

Rf-310 Or Rf-370 Dc Motor

Certification:

16949,RoHS,CE,ISO.EU

Brush Type:

Carbon Brush/metal Brush

Gearbox Diameter:

φ 25mm Gearbox

Gearbox Material:

Metal ,copper ,steel Ect

Shaft Type:

φ4mm D-cut 3.5mm

Rated Torque:

Customized,0.1-5kg.cm

Shaft Material:

Steel Or Others

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

High Power DC Gear Motor

High Power DC Motor Low Speed

12V Spur Geared Motor

Product Description

RF-310 High Power DC Gear Motor 6V 12V Spur Geared Motor Low Speed For Milk Shaker Massager

Product Overview

RF-310 DC Motor with 25mm Gearbox - High Power Low Speed Spur Geared Motor designed for milk shakers, massagers, and various automation applications.

Voltage: DC 1.5V-24V
High Efficiency: 70% efficiency rating
Rated Speed: Customized to requirements
Gearbox Efficiency: 48%-80%
Gearbox Diameter: Ø25mm
Reduction Ratio: Customized 1:10-1:1051
Available Models: RF-300, RF-310, RF-370, RS-385, RS-365, RS-390
100% inspection before shipment

Technical Specifications

Rated Torque: 0.9 kg-cm

Stall Torque: 4.4 kg-cm

Gear Material: Metal

Motor Diameter: 25mm

Shaft Diameter: 4mm

Shaft Type: M4, M5, Bare / D-Cut / Double D-Cut / Pin Hole / Keyway (Customized)

Shaft Material: Carbon Steel or Stainless Steel

Bearing Type: Oil bearing / Ball bearing / Sleeve bearing

Motor Lifetime: 500-1000 hours

Noise Level: ≤55 DB

Key Features

Sturdy construction ensures durability and reliability
Low noise operation for quiet performance
Shaft equipped with metal bushes for extended lifespan
Metal gears provide high performance and reliability
High-quality components ensure reliable operation
Offers high torque at low current consumption
Meets EU environmental standards: low energy consumption, low noise

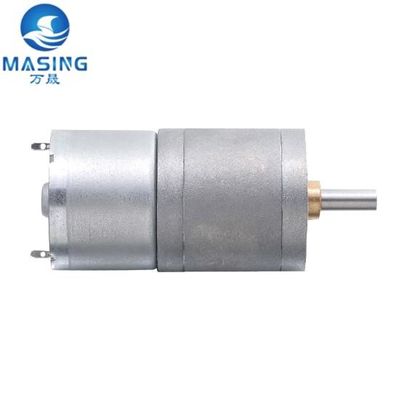

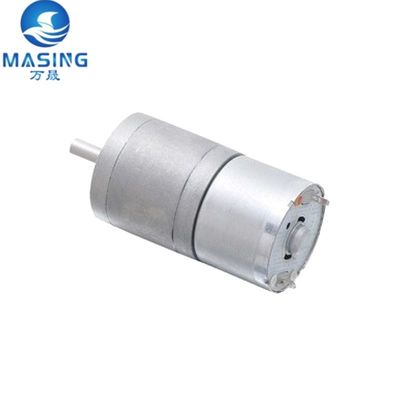

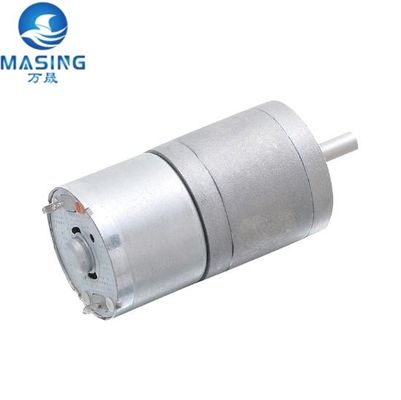

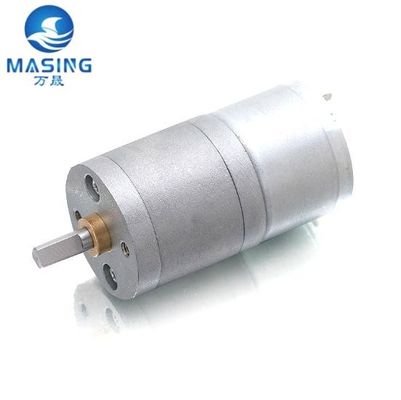

Product Images

Gearbox Performance Data

Gear Stages	3	4	5	6	7	8
Reduction Ratio (K)	9.3, 10.3, 11.5	20.4, 23, 25, 28	45, 50, 55, 62, 68	99, 110, 122, 136, 151, 167	217, 241, 268, 298, 331, 368, 409	478, 531, 590, 656, 729, 810, 900, 1000
Gear Box Length L(mm)	17.5	19	21	23	25	27
Rated Torque (kg*cm)	0.4	0.5	1	1.7	2	2
Instant Torque (kg*cm)	1.2	1.5	3	4	6	6
Gearbox Efficiency (%)	75%	65%	59%	53%	48%

Applications

Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities.

Medical Equipment	Business Machines	Electric Powered Equipment	Smart Home	Food and Beverage	Robotics
Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer	Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen	Electric toothbrush, Electric tool, Adult erotica products, Electric toy car, Electric curtain	Intelligent window opener, Vacuum cleaner, Smart coffee machine, Hair drier, Fascia gun, Fan, Air cleaner, Hair removal device, Door lock, Intelligent door lock	Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers	Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot

Ordering & Delivery

Packaging: Strong Carton 1000pcs/box, or customized

Port: Shenzhen/Guangzhou/Shanghai

Package Size: 12×10×24mm

Weight: 0.025kg

Supply Ability: 100,000 pieces per month

MOQ: 1000 pieces

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Sample Price: $5/piece

Maximum Sample Order: 1 piece

Certifications

ISO 16949, EU, CE, Rohs, ISO

Factory & Product Line

Frequently Asked Questions

Q1: Can you provide samples?

A1: YES. Our company can provide samples, with delivery time of 5-15 days depending on motor and gearbox specifications.

Q2: What is the material of the gear?

A2: The motor gears are made of metal. Other materials available upon request.

Q3: How to change rotation direction?

A3: Change wiring polarity to change rotation direction.

Q4: What happens when a voltage of 18V is connected to a 12V motor or an 18V motor?

A4: Connecting 18V to a 12V motor will damage it. Connecting 18V to a 24V motor will affect speed and torque, and may prevent operation.

Q5: Do you offer customization services?

A5: Yes, we customize voltage, speed, torque, shaft size/shape, and can add wires, connectors, capacitors, or EMC components.

Q6: What does torque mean?

A6: Torque is the weight the motor can load at specific voltage and speed. Example: 12V 12RPM motor with 70kg.cm torque can load 70kg objects with 1cm diameter. Do not exceed rated load to prevent gear wear.
