Permanent Magnet DC Gear Motor , High Power DC Motor 6V For Game Machine

Permanent Magnet DC Gear Motor , High Power DC Motor 6V For Game Machine

Brand Name:	Masing Motor
Model Number:	MSGM60B5555/550/545/540
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS,CE,ISO,16949

Product Name:

Permanent Magnet DC Gear Motor

Gearbox Dimension:

φ60mm

Voltage:

6V-30V

Power:

High Power Or Can Be Customized

Speed:

5rpm-300rpm Or Customized

Torque:

0.05NM-5NM

Bearing:

Oil Bearing Or Ball Bearing

Gear Ratio:

1:32.9 Or 1:73 Or Customized

Motor Type:

RS-545/RS-540/RS-550/RS-555

Gears Material:

Metal ,steel Or Powder Metallurgy Or Customized

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

Permanent Magnet DC Gear Motor

Permanent Magnet DC Geared Motor

High Power DC Motor 6V

Product Description

Permanent Magnet DC Gear Motor, High Power DC Motor 6V For Game Machine

RS-550 RS-555 RS-545 RS-540 High Power DC Motor With 60mm Flat Gearbox Permanent Magnet DC Gear Motor for Game Machine and Coffee Machine

Product Features

Speed: 5rpm to 300rpm (Customizable)
Voltage: DC 6V - 30V (Customizable)
Shaft Diameter: φ10mm or Customized
Shaft Type: Round / Threaded hole / Bare / D-Cut / Double D-Cut / Pin Hole / Keyway shaft (Customizable)
Shaft Material: Carbon Steel or Stainless Steel
Gears Material: Metal, steel or Powder metallurgy
Gearbox: φ60mm Rohs Metal Gearbox
Certificates: Rohs, ISO, CE, 16949
Motor Rotation Direction: CW & CCW available
Accessories: Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan (Optional)
High Efficiency: 70% efficiency rating
Durable Construction: Totally enclosed design for protection
Low Noise Operation with High Torque: 0.05-5NM
100% quality inspection before delivery
ODM, OEM Supported

Technical Specifications

Speed (RPM): 5rpm-300rpm or Customized

Continuous Current (A): 50mA-800mA

Efficiency: 90%-60%

Warranty: 3 Months - 1 year

Place of Origin: Guangdong, China

Brand Name: Masing Motor

Model Number: MSGM60B555

Type: High Power permanent magnet DC gear motor 24V

Torque: 0.05NM-5NM

Construction: Permanent Magnet

Match Motor Type: RS-545, RS-540, RS-550, RS-555 Carbon brush DC motor

Protect Feature: Totally Enclosed

Gearbox Material: Rohs Metal gearbox or Customized

Bearing: Oil bearing, Ball bearing / Sleeve bearing

Gearbox Diameter: φ60mm Metal Gearbox

Gearbox Ratio: 1:32 or 1:73

MOQ: 1000Pcs

Certification: 16949, CE, ROHS, ISO

Applications

Robot, ATM Machine, Audio Mixer System, Game Machine, Home Appliance, Cosmetic Instrument, SMART HOME, Coffee Machine, Vending Machine, Medical Device

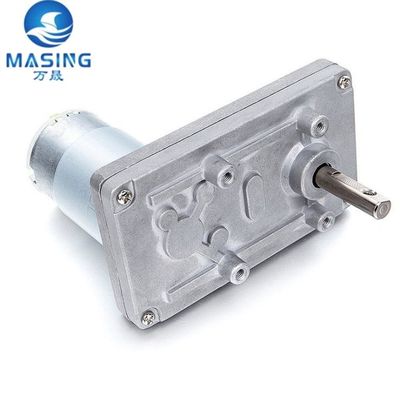

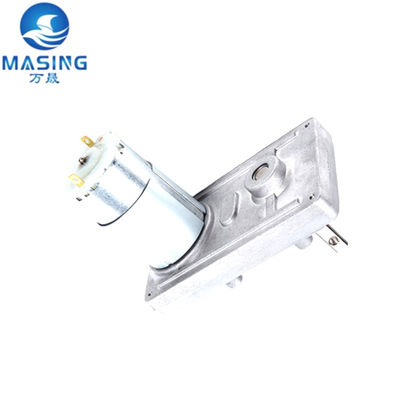

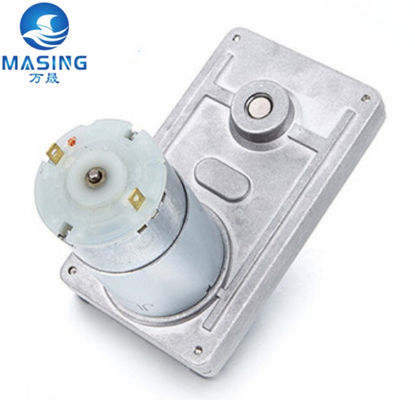

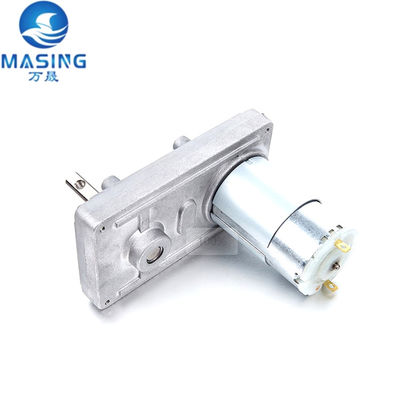

Product Images

Performance Specifications

MSGM37B520 DC Spur Gear Motor Typical Applications: Robot, ATM Machine, Audio Mixer System, Game Machine, Home Appliance, Cosmetic Instrument, SMART HOME, Coffee Machine, Vending Machine, Medical Device

Voltage, rated torque, speed, current, power and shaft size can be customized as requirement.

MODEL	VOLTAGE (V)	OPERATING RANGE	NO-LOAD	LOAD PARAMETER	STALL	GEARBOX LENGTH	MATCHING MOTOR	MOTOR LENGTH
		NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE	OUTPUT	TORQUE	CURRENT
			r/min	A	r/min	A	mN.m	g.cm	W	mN.m	g.cm	A	mm	MODEL	mm
MSGM60B555-32.9	10-24	12	44	0.330	36.5	0.77	0.93	9.45	3.54	3.43	35.00	2.50	14	555	57
MSGM60B555-73	10-24	12	90	0.560	73	139	122	12.45	9.32	6.37	65.00	13.00	14	555	57

Packaging & Delivery

Packaging Details: Strong Carton 100pcs/box, or as you wish

Port: Shenzhen/Guangzhou/Shanghai

Selling Units: Single item

Package Size: 37×27×24cm

Gross Weight: About 500g

Supply Ability: 100,000 Pieces per Month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples

Maximum Order Quantity: 1 piece

Sample Price: $10/piece

Certifications

Factory Show

Product Classification

Applications

Driverless, Artificial Intelligence, Intelligent Transportation, Health Care, Smart City, Automotive Supplies, Security Monitoring, 5G Communication, Smart Home, Automatic Door Operators, Automatic Energy Saving Bath, Electrical Controlled Valve, Robots, Grass Cutter, Electric Curtain, Camera, Medical Service, Oxygen Machine, Automatic Cabinet / Vending Machines, Coffee Maker / Coffee Machine, Home Appliance, Automatic Actuator, etc.

Frequently Asked Questions

Q1: Can I visit your company?

A1: Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us.

Q2: What's the minimum order quantity?

A2: Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use of motor orders.

Q3: Do you have a customized service for your standard motors?

A3: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q4: How long will the gear reducer be delivered after placing an order?

A4: In general, we will deliver our standard gear boxes within 2 weeks. For customized products, we usually need to send samples to you for confirmation within 30-45 days after the scheme and drawings are confirmed. If got the confirmation, we will confirm the delivery date according to the quantity you ordered.

Q5: How to confirm the payment?

A5: We accept payment by T/T, PayPal, the other payment ways also could be accepted. Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.

Q6: What kind of express will be used to transport samples or bulk goods?

A6: We have established long-term service relationships with DHL, FedEx, UPS and other global express companies. In addition, we accept the transportation mode required by customers.
