N20 Motor with Gearbox High Torque Low Noise Permanent Magnet Micro DC Gear Motor for AI Robot

N20 Motor with Gearbox High Torque Low Noise Permanent Magnet Micro DC Gear Motor for AI Robot

Brand Name:	Masing Motor
Model Number:	MS-GM12N20
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS ,CE, ISO,16949

Product Name:

12mm AI Robot Gear DC Motor

Gearbox Shaft:

φ3mm ,φ4mm ,M3,M4,M5 Or Customized

OEM & ODM:

Accepted

Gearbox Diameter:

φ12mm

Brush Type:

Metal Brush/Carbon Brush

Gearbox Type:

Spur Gearbox

Rated Voltage:

DC1.2V-12V

Direction Of Motor:

CW&CCW

Usage:

Laser,Locks,Toys,3D Printer,Robots,AI Robot

Motor Type:

N20 Micro Motor

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Product Description

N20 Motor with Gearbox High Torque Low Noise Permanent Magnet Micro DC Gear Motor for AI Robot

High torque, low noise permanent magnet micro DC gear motor designed for AI robots, smart home applications, home appliances, and robotics.

Product Overview

N20 Micro DC Gear Motor 6V 1000 RPM designed for smart home, home appliance, and robotics applications.

Technical Specifications

Rated Voltage: DC 1.2V - 12V
Rated Speed: 5rpm - 3000rpm
Motor Size: φ12mm × L15mm
Rated Torque: 0.05kgf.cm - 2kgf.cm
Gearbox Size: φ12 × 10mm
Shaft Diameter: φ3mm, φ4mm or Customized
Motor Direction: CW & CCW
Reduction Ratios: 1:10, 1:20, 1:30, 1:50, 1:75, 1:100, 1:150, 1:210, 1:250, 1:298, 1:300, 1:500, 1:1000

Key Attributes

Rated Speed (RPM)	5rpm - 3000rpm
Continuous Current	10mA - 500mA
Gearbox Shaft	φ3, φ4, M3, M4, M5, D-cut or Round
Warranty	3 Months - 1 Year
Place of Origin	Guangdong, China
Brand Name	Masing Motor
Model Number	Micro N20 Gear Motor
Applications	Robots, Locks, Locker lock, Toys, Precision instruments, electric tools, screwdrivers
Type	4.5v DC Gearbox Motor
Rated Torque	0.01kgf.cm - 2kgf.cm
Construction	Permanent Magnet
Commutation	Brush
Product Name	12mm Metal Gear Motor
Certificates	CE, Rohs, EU, ISO, 16949
Gearbox Size	12mm × 10mm
Weight	10g
Noise	≤55DB
MOQ	1000Pcs
Gears	Metal, Steel or Copper Rohs
Color	Customer's Request
Motor Type	N20 Micro Motor

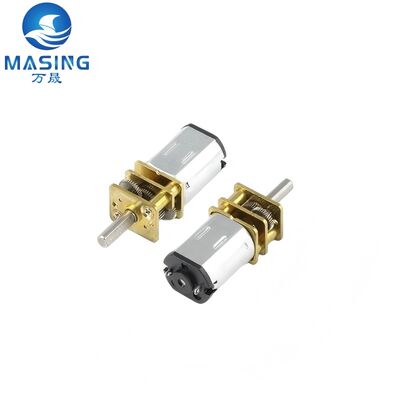

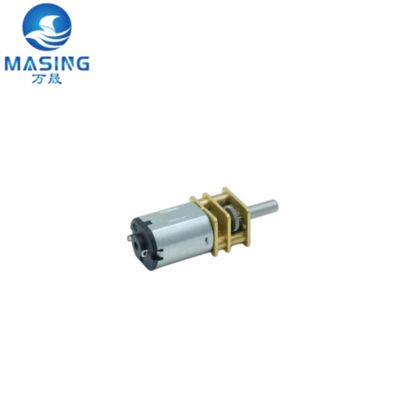

Product Images

Product Model

GM12-N20VA 12mm gearbox plus N20 permanent magnet DC motor

Packaging & Delivery

Packaging: Strong Carton 1000pcs/box, or as requested

Port: Shenzhen/Guangzhou/Shanghai

Single Package Size: 37×27×24cm

Single Gross Weight: 10.0kg

Supply Capacity

100,000 Piece/Pieces per Month

Lead Time

Quantity (pieces)	Lead Time (days)
1 - 100	10
101 - 1000	15
> 1000	To be negotiated

Samples

Maximum Order Quantity: 1 piece

Sample Price: $10/piece

Certifications

Factory Show

Product Classification

Applications

Driverless, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Smart home

Frequently Asked Questions

Q1: What's the price?

A1: We're a professional manufacturer so the exact price is based on clients' specifications, such as the speed, voltage etc.

Q2: What's the MOQ?

A2: We try to meet every client's requests and don't want to disappoint our clients. So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season. Kindly chat with our sales team to confirm it.

Q3: Can you send some samples before the order?

A3: Yes of course, we must send the sample to confirm the quality with you first. UPS, TNT, FEDEX or DHL are all available.

Q4: Can you make our logo on the products?

A4: Certainly, logo is easy as most of our products are customizable. So logo is usually necessary. It can be labeled on the motors.

Q5: When will you reply after got my inquiries?

A5: We will respond within 24 hours once we get your inquiries.

Q6: Can I visit your company?

A6: Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us.

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

Italy Jan 12.2026

trustpilot.com

Helpful (1000)

We purchased 1000 motors. The seller provided excellent service, quick delivery, and the product quality was stable.Exactly as described. Compact size, reliable performance, and consistent 400rpm under 3V.

Prince

United States Dec 5.2025

Helpful (106)

Great motor! Works perfectly at 6V, 12V, and 24V. The planetary gear design provides excellent reduction and reliable power. Solid construction and long‑lasting so far.

J*y

Switzerland Nov 28.2025

Helpful (100)

Great quality brushless motor! Consistent power, long service life, and fits perfectly in small smart projects.
