High Torque Diameter 6mm Gearbox 3V 6V Micro Planetary Gear Dc Motors For Toy Robot

Name: High Torque Diameter 6mm Gearbox 3V 6V Micro Planetary Gear Dc Motors For Toy Robot
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MS-06PM10
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MS-06PM10
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

16949,ROHS,CE,ISO

Product Name:

Dc Motor Planetary Gearbox 6mm

Shaft Type:

Flat ,D-Cut Or Round Or Customized

Efficiency:

56%-90%

Speed:

Customized

Gearbox Diameter:

φ6mm

Gearbox Type:

Micro Planetary Gearbox

Gear Material:

Precision Plastic Gear

Motor Type:

6mm Coreless DC Motor

Keywords:

6mm Mini Plastic Planetary Dc Gearbox Motor

Direction Of Motor:

CW&CCW

Noise:

Low Noise

Gearbox Material:

Plastic Gearbox

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Product Description

3V 6V Micro Planetary Gear Dc MotorsTitle:

High Torque Diameter 6mm Gearbox 3V 6V Micro Planetary Gear Dc Motors For Toy Robot

3V 6V Micro Planetary Gear Dc Motors Description:

High Efficiency and Performance: 1.2v-12v 6mm micro planetary gear dc motor offers an efficiency of 70%,
Rated Speed:100-3000RPM
Rotating speed is constant and can be made as you required.
Voltage range:DC1.2V-12V
Gearbox diameter :φ6mm
Gearbox material :Plastic
Shaft Diameter :φ2mm
Shaft material:Plastic
Gears material:Precision plastic gears
Motor Size: φ6*18.6mm,diamter 6mm, 18.6mm length micro planetary gear dc motor
Motor type :Mini Coreless Motor
Motor default direction:CW&CCW
Can be match with wheel, One shaft one wheel or one motor, one wheel
Working temperature:-40~+60°c
Low Noise and High Torque: With a torque of 0.5-2.0kg.cm, this motor operates at a low noise level, making it suitable for applications requiring minimal noise pollution, such as fan and cosmetic instrument use.
In various applications, including door-lock ,robots ,SMART HOME,Electric Bicycle Lock,Cosmetic Instrument.
We can provide samples for your test.

3V 6V Micro Planetary Gear Dc Motors Key attributes:

Speed(RPM)

10-3000 rpm

Continuous Current(A)

20-300mA

Efficiency

70%

Warranty

3Months-1Year

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MS-06PM10

Use

Eye Massager Medical Vision Correction Products,door-lock ,robots ,SMART HOME,Electric Bicycle Lock, Cosmetic Instrument,Toy Robot

Motor Type

Micro coreless planetary gear motor

Torque

0.01-0.5kg.cm

Construction

Permanent Magnet

Gear material

Plastic

Direction of motor

CW & CCW

Product Name

M10 Brushed Dc Gear Motor

Gearbox material

Plastic

Keywords

3.7v High speed DC coreless Planetary Gear Motor

Gearbox Diameter

φ6mm

Weight

Noise

≤55DB

MOQ

1000Pcs

Voltage

DC1.2v-12v

Color

Customer's Request

Motor type

3v 6mm planetary Corelss Motor

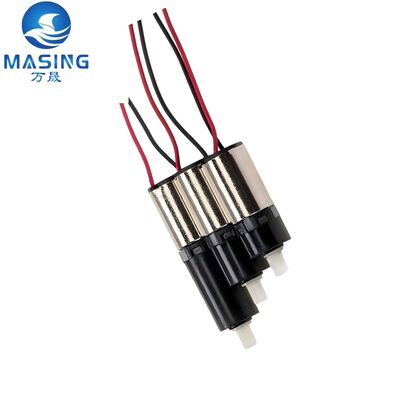

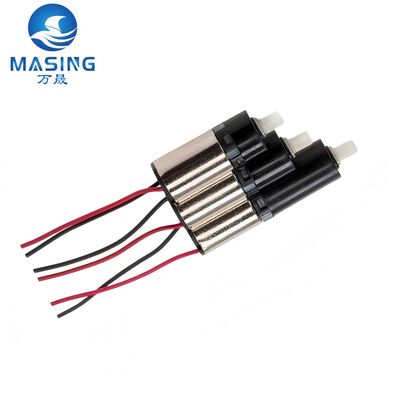

3V 6V Micro Planetary Gear Dc Motors Product Photo:

High Torque Diameter 6mm Gearbox 3V 6V Micro Planetary Gear Dc Motors For Toy Robot 0

3V 6V Micro Planetary Gear Dc Motors Product Spec:

6mm DC Coreless Planetary Gear Motor Typical Applications:

Eye Massager Medical Vision Correction Products,door-lock ,robots ,SMART HOME,Electric Bicycle Lock, Cosmetic Instrument

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

High Torque Diameter 6mm Gearbox 3V 6V Micro Planetary Gear Dc Motors For Toy Robot 3

	Rated	Starting	No-Load	Load	Output	Use Torque	Gear Ratio	Gear Box	Total Length
Model	Voltage (VDC)	Voltage (VDCMAX)	Current (mAMAX)	Current (mA MAX)	Speed (rpm)	(g-cm)		Length (mm)	(mm)
MS06PM10-5.14-MD16001	3	1	30	230	6420	5	5.14	4.70	17.60
MS06PM10-26.45-MD16002	3	1	30	230	1200	27	26.45	7.05	19.90
MS06PM10-136.2-MD16003	3	1	37	230	242	120	136.02	9.40	22.25
MS06PM10-699.55-MD16004	3	1	40	230	46	180	699.55	11.75	24.70

Packaging and delivery:

Packaging Details

Strong Carton 400pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

10.0kg

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$5/piece or Negotiable

Certifications:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home,door-lock ,robots ,Electric Bicycle Lock,Cosmetic Instrument.

FAQ

Q1:How to select a suitable motor?

A1:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q2:Do you have a customized service for your standard motors?

A2:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q3: Do you have an individual design service for motors?

A3:Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q4: Can I have samples for testing first?

A4:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

Q5: How do you make sure motor quality?
A5: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

Q6:What's your lead time?

A6:Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders
