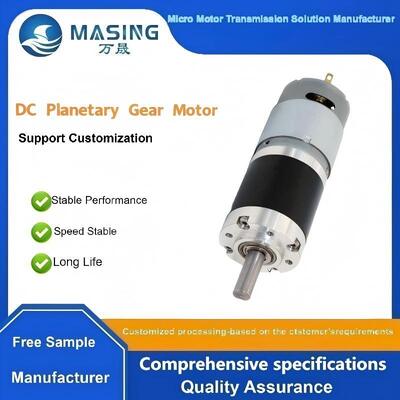

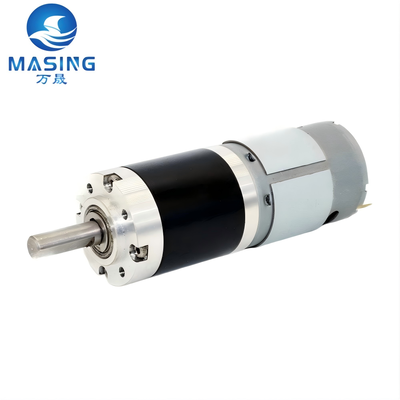

28mm Diameter High Torque BLDC Planetary Gear Motor with Customizable Speed for Robotics and Home Appliances

28mm Diameter High Torque BLDC Planetary Gear Motor with Customizable Speed for Robotics and Home Appliances

Brand Name:	Masing Motor
Model Number:	MS-28PG395
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO CE ROHS 16949

Product Name:

Dc Motor Planetary Gearbox

Shaft Type:

Flat ,D-Cut Or Round Or Double D-cut

Commutation:

Brushless Motor

Structure:

Built-in Driver

Gearbox Diameter:

φ28mm Planetary Gearbox

Gears Material:

Metal ,steel ,plastic ,Powder Metallurgy

Rated Voltage:

6v-24v

Motor Tpye:

RS-390 RS-395 BL2838

Materail:

Metal Rohs

Customized:

OEM And ODM

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Highlight:

28mm Diameter Planetary Gear Motor

High Torque BLDC Motor

Customizable Speed DC Planetary Gearbox

Product Description

28mm Micro Brush DC Motor Planetary Gearbox

High-torque planetary gearbox with brush DC motor designed for robotic vacuum cleaners, massagers, and precision applications requiring compact size and reliable performance.

Product Overview

BL2838 28mm Planetary Geared Motors with Hall Sensor Type BLDC Motor and Reducer

Key Specifications

Model: PG28-390/395 DC RS-395/390 Brush Planetary Reduction DC Motor
Rated Speed: 5rpm - 1000RPM (customizable)
Gearbox Size: φ28mm diameter
Motor Type: Brushless DC Motor with built-in driver
Working Temperature: -40°C to +60°C
Certifications: CE, RoHS, ISO9001, REACH, 16949
Minimum Lifetime: 20,000 hours
Direction: CW & CCW available

Technical Features

PWM pulse wide speed range
FG speed feedback signal
Low EMC and noise levels
Current protection: Over-current, Over-voltage, Under-voltage
High efficiency: 90-58%
Gears Material: Metal, steel, plastic, powder metallurgy
Shaft diameter: 6mm, 8mm options

Product Images

Technical Specifications

Micro 28mm DC Brushed Planetary Gear Motor designed for SMART HOME, Electric Bicycle Locks, Cosmetic Instruments, robotics, 5G applications, personal care, home applications, industrial apparatus, and medical equipment.

Motor Technical Data

Model	Rated Voltage (V)	No-load Speed (RPM)	No-load Current (A)	Rated Torque (g.cm)	Rated Speed (RPM)	Rated Current (A)	Rated Power (W)	Stall Torque (g.cm)
RS-395-12	12.0	5200	0.2	200	3700	0.9	10	1600
RS-395-24	24.0	8600	0.3	250	6100	1.1	29	2900

Packaging & Delivery

Packaging: Strong Carton 100pcs/box, or customized
Port: Shenzhen/Guangzhou/Shanghai
Package Size: 37*27*24cm
Gross Weight: 20.0kg
Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples

Maximum Order Quantity: 1 piece
Sample Price: $15/piece

Certifications

Factory & Product Classification

Applications

Smart home, smart door locks, personal care, artificial intelligence, automobiles, model airplanes, adult products, security, small home appliances, models, power tools, communication equipment, medical devices, health care equipment, toys and fitness equipment.

Frequently Asked Questions

Q1: What's the price?

A1: As a professional manufacturer, the exact price is based on client specifications including speed, voltage, and other requirements.

Q2: What's the MOQ?

A2: MOQ is flexible depending on product complexity and production schedule. Please contact our sales team for confirmation.

Q3: Can you send samples before the order?

A3: Yes, we provide samples for quality confirmation. Shipping available via UPS, TNT, FEDEX, or DHL.

Q4: Can you add our logo to the products?

A4: Yes, logo customization is available for most products as part of our customization services.

Q5: Do you offer customization services?

A5: Yes, we can customize voltage, speed, torque, shaft size/shape, and add connectors, capacitors, or EMC components as required.

Q6: Do you provide individual design services?

A6: Yes, we offer custom motor design services, which may involve mold charges and design fees.
