12v Dc Gear Motor Low Rpm High Torque DC Motor With Gear Box For Robots And Tea Vending Machine

12v Dc Gear Motor Low Rpm High Torque DC Motor With Gear Box For Robots And Tea Vending Machine

Brand Name:	Masing Motor
Model Number:	MS-GM40B500
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS,CE,ISO,16949

Product Name:

12v Dc Gear Motor Low Rpm

Shaft Diameter:

φ6mm Or Customized

Rated Torque:

0.1kgf.cm-10kgf.cm

Protect Feature:

Totally Enclosed

Direction Of Rotation:

CW/CCW Available

Gearbox Material:

40mm Gearbox Motor

Voltage:

DC1.2V-24V

Construction:

Permanent Magnet

Gearbox Length:

10.4mm

Gears:

Metal/Plastic/Copper/Powder Metallurgy

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

12v DC gear motor low rpm

high torque DC motor with gearbox

DC gear motor for robots

Product Description

12V DC Gear Motor Low RPM High Torque DC Motor With Gear Box

This 12V DC gear motor offers low RPM and high torque performance, specifically designed for robotics and tea vending machine applications. The motor features customizable specifications to meet various industrial requirements.

Key Specifications

Rated Voltage: DC 1.2V-24V
Rated Speed: 2RPM to 500RPM (Customizable)
High Efficiency: 85%-55%
Direction of Rotation: CW/CCW available
Gearbox Shaft Diameter: φ6mm or Customized
Gearbox Shaft Type: M5/M6/Bare/D-Cut/Double D-Cut/Pin Hole/Keyway shaft
Brush Type: Metal brush or Carton brush
Gearbox Diameter: φ40mm
Gearbox Material: Plastic gearbox
Gear Material: Metal, Plastic, Powder metallurgy, Copper
Rated Torque: 0.1kgf.cm-10kgf.cm

Technical Attributes

Speed (RPM)	3RPM-500RPM
Voltage	DC 1.2V-24V
Efficiency	55%-85%
Warranty	3 Months-1 Year
Place of Origin	Guangdong, China
Brand Name	Masing Motor
Model Number	MS-GM40B500
Use	Smart home, Smart toilet seat, Home Appliance, robot, vending machine, medical device
Type	DC Electric Motor 12V
Torque	0.1kgf.cm-10kgf.cm
Construction	Permanent Magnet
Commutation	Brush
Protect Feature	Totally Enclosed
Direction of Rotation	CW & CCW available
Gearbox Material	Plastic
Gearbox Length	10.4mm
Gearbox Diameter	40mm
Gearbox Ratio	1:5 to 1:390
MOQ	1000 Pcs
Shaft	M5/M6/D-cut or Round or Flat or with a hole (Customer's Request)
Shaft Material	Carbon Steel or Stainless Steel
Certification	CE, ROHS, ISO, 16949

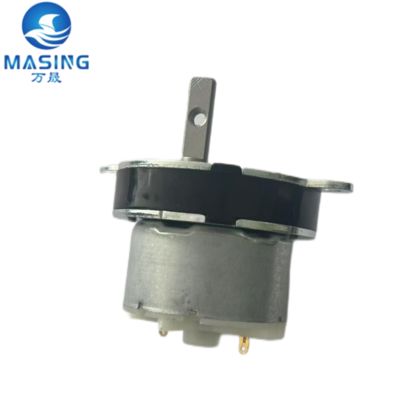

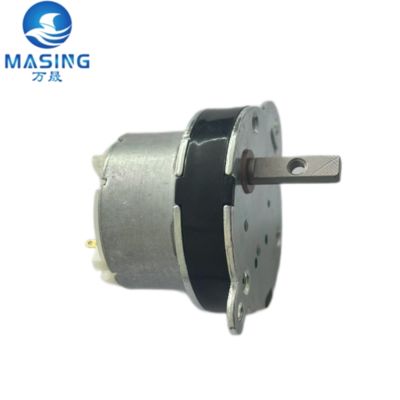

Product Images

Packaging & Delivery

Packaging Details: Strong Carton 80pcs/box, or as requested
Port: Shenzhen/Guangzhou/Shanghai
Selling Units: Single item
Single Package Size: 37×27×24cm
Single Gross Weight: About 80-100g

Supply Capacity

Supply Ability: 100,000 Piece/Pieces per Month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples

Maximum Order Quantity: 1 piece
Sample Price: $10/piece

Certifications

Factory Show

Product Classification

Applications

Driverless systems, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Smart home, Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

Frequently Asked Questions

Q1: What's the price?

A1: We're a professional manufacturer. The exact price is based on clients' specifications, such as the speed, voltage etc.

Q2: What's the MOQ?

A2: We try to meet every client's requests. The MOQ is flexible if the product is not complicated to produce and we are not in a busy season. Kindly chat with our sales team to confirm it.

Q3: What's the delivery time?

A3: We maintain a production schedule. In the slack season, we can ensure delivery within one month. In the busy season, we may need more than one month for large quantities. We can provide overtime production for urgent orders.

Q4: Can you send some samples before the order?

A4: Yes, we send samples to confirm quality first. UPS, TNT, FEDEX or DHL are all available for shipping.

Q5: Can you make our logo on the products?

A5: Certainly, logo customization is available as most of our products are customizable. Logos can be labeled on the motors.
