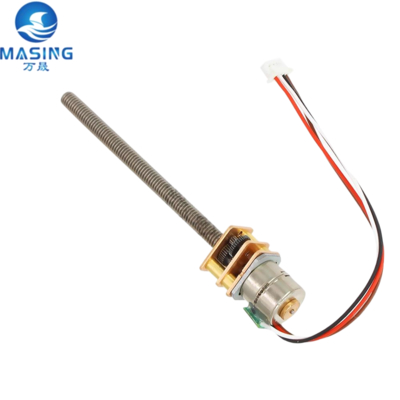

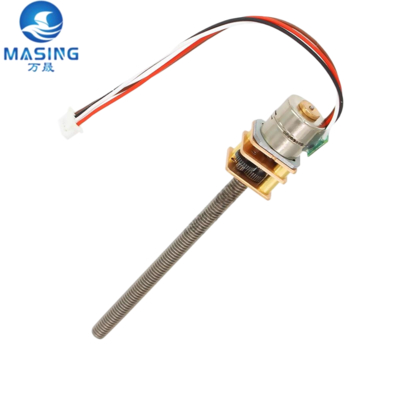

10mm Mini Stepper Motor with Gears GM12-10BY DC Gear Micro Stepper Motor for Robotics 3D Printers & Precision Equipment

10mm Mini Stepper Motor with Gears GM12-10BY DC Gear Micro Stepper Motor for Robotics 3D Printers & Precision Equipment

Brand Name:	Masing Motor
Model Number:	MS-GM12-10BY
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS ,CE, ISO,16949

Product Name:

GM12-10BY DC Gear Micro Stepper Motor

Gearbox Shaft:

φ3mm ,φ4mm Or Customized

OEM & ODM:

Accepted

Gearbox Diameter:

φ12mm

Torque:

0.1-2kgf.cm

Gearbox Type:

Spur Gearbox

Rated Voltage:

DC1.2V-12V

Direction Of Motor:

CW&CCW

Usage:

Laser,Locks,Toys,3D Printer,Robots

Motor Type:

Micro Stepper Motor 10BY

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

10mm mini stepper motor with gears

DC gear motor for robotics

micro stepper motor for 3D printers

Product Description

GM12-10BY DC Gear Micro Stepper Motor

Product Overview

10mm Mini Stepper Motor with Gears GM12-10BY DC Gear Micro Stepper Motor for Robotics, 3D Printers & Precision Equipment

Key Specifications

Rated Voltage: DC 3.3V-12V
Rated Speed: 5rpm-300rpm
Motor Size: φ10mm × L10.7mm
Rated Torque: 0.05kgf.cm-2kgf.cm
Gearbox Size: φ12 × 10mm
Shaft Diameter: φ3mm, φ4mm or Customized
Direction: CW & CCW
Noise Level: ≤55dB
Weight: 10g

Reduction Ratios

Available reduction ratios: 1:10, 1:20, 1:30, 1:50, 1:75, 1:100, 1:150, 1:210, 1:250, 1:298, 1:300, 1:500, 1:1000. Custom ratios available upon request.

Shaft Types

Round Type:

DIA 3mm, 4mm, 5mm

D-cut Type:

DIA3-D2.5, DIA4-D3, etc.

Screw Type:

M3, M4, M5 Serial

Trape/I-cut Type:

DIA3-I2, DIA4-I3

Technical Specifications

Parameter	Specification
Rated Voltage	5V DC
Operating Temperature	-10°C to +60°C
Step Distance	18°
Frequency	50 Hz
Rated Current	380mA (Ref)
On-load Speed	0.395 rpm (Ref)
Rated Torque	0.3 kgf.cm

Electrical Characteristics

Parameter	Specification	Conditions
Resistance	300Ω ±10%	At 25°C, Each phase
Inductance	9.6mH (REF)	At 25°C, 1KHz, 1.0V rms
Max Starting Pulse Rate	800 PPS Min	Steady voltage driving no load
Max Slewing Pulse Rate	1100 PPS Min	Continuous driving
Holding Torque	35 gf-cm Min	5VDC to coil at 0 pps

Applications

Robotics, 3D Printers, Door Locks, Toys, Printers, Smart Home devices, Automotive supplies, Security monitoring, and Precision equipment.

Packaging & Delivery

Packaging: Strong Carton (1000pcs/box) or custom packaging
Port: Shenzhen/Guangzhou/Shanghai
Single Package Size: 37×27×24cm
Single Gross Weight: 10.0kg

Lead Time

Quantity (pieces)	Lead Time (days)
1 - 100	10
101 - 1000	15
> 1000	To be negotiated

Samples & Certifications

Maximum Sample Quantity: 1 piece
Sample Price: $10/piece
Certifications: CE, Rohs, EU, ISO, 16949
Quality Control: Every product inspected before shipment

Frequently Asked Questions

Q1: What's the price?

A1: We're a professional manufacturer. The exact price is based on clients' specifications such as speed, voltage, etc.

Q2: Can you send samples before the order?

A2: Yes, we must send samples to confirm quality first. UPS, TNT, FEDEX or DHL are all available.

Q3: Do you have an individual design service for motors?

A3: Yes, we design motors individually for customers, but it may require mould and design charges.

Q4: Can you make our logo on the products?

A4: Certainly. Logo customization is available and can be labeled on the motors through printing, embroidery, embossing, or jacquard methods.
