12MM Electric Metal Brush DC Gear Motor N20 For Intelligent Robot Applications

12MM Electric Metal Brush DC Gear Motor N20 For Intelligent Robot Applications

Brand Name:	Masing Motor
Model Number:	MS-GM12N20
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS CE ISO,16949

Product Name:

12MM Electric Metal Brush DC Gear Motor N20

Gearbox Size:

12*10mm

OEM & ODM:

Accepted

Rated Voltage:

1.2v-24v DC

Rated Power:

0.1-3W Or Can Be Customized

Certificates:

CE Rohs ISO EU,16949

Bearing Type:

Oil Bearing/ball Bearing

Rated Speed:

3rpm-3000rpm

Material:

Copper ,Steel,plastic

Motor Type:

FF-N10,FF-N20,FF-N30

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

12mm DC gear motor

N20 electric metal brush motor

intelligent robot gear motor

Product Description

12MM Electric Metal Brush DC Gear Motor N20 For Intelligent Robot Applications

Product Overview

Compact 12mm electric metal brush DC gear motor designed for intelligent robot applications, featuring customizable specifications and high-performance characteristics.

Technical Specifications

Rated Voltage: DC 1.2V - 24V

Rated Speed: 5 RPM - 3000 RPM

Rated Power: 0.1W - 5W

Continuous Current: 10mA - 500mA

Gearbox Size: 12 × 9mm

Rated Torque: 0.05 kgf.cm - 2 kgf.cm

Weight: 10g

Noise Level: ≤55 dB

Lifetime: 100 - 1000 hours

Motor Characteristics

Motor speed is proportional to the motor voltage
Motor torque is proportional to the motor speed
Compatible with FF-N10, FF-N20, FF-N30 micro DC motors
Meets EU environmental standards: low energy consumption, low noise

Gear Reduction Options

Standard reduction ratios: 1:10, 1:20, 1:30, 1:50, 1:75, 1:100, 1:150, 1:210, 1:250, 1:298, 1:300, 1:500, 1:1000

Custom reduction ratios available upon request

Shaft Configuration

Diameter: φ3mm, φ4mm or custom sizes
Round Type: DIA 3mm, 4mm, 5mm
D-cut Type: DIA3-D2.5, DIA4-D3, etc.
Screw Type: M3, M4, M5 Serial
Trape/I-cut Type: DIA3-I2, DIA4-I3
Other Types: Shaft with hole, custom configurations

Additional Features

Bearing Type: Ball bearing / Oil bearing
Rotation Direction: Clockwise or Counter-clockwise
Construction: Brush type
Protection: Exposed gearbox
Available Accessories: Wires, gears, connectors, gearbox, encoder, brake, cooling fan

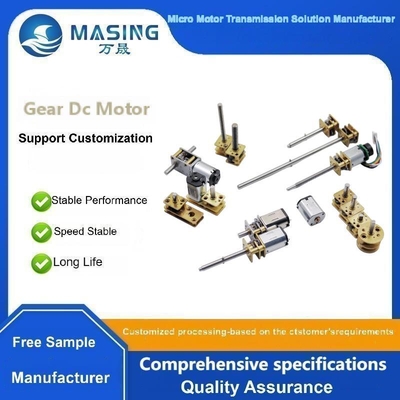

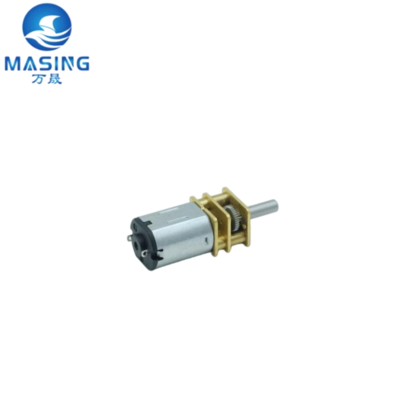

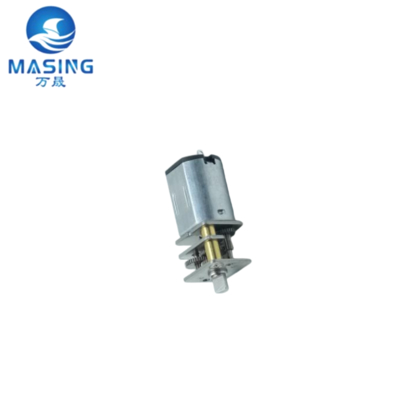

Product Images

Applications

Intelligent robots and robotic systems
Smart locks and locker mechanisms
Automotive applications
Home appliances and smart home devices
Cosmetic instruments
Projectors and camera systems
Medical devices
Security monitoring systems

Ordering Information

Model Number: MS-GM12FN20

Brand Name: Masing Motor

Minimum Order: 1000 Pieces

Supply Capacity: 100,000 Pieces/Month

Certifications: CE, RoHS, EU, ISO, 16949

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Packaging & Delivery

Packaging: Strong carton (1000pcs/box) or custom packaging
Shipping Ports: Shenzhen, Guangzhou, Shanghai
Unit Size: 12 × 10 × 24mm
Unit Weight: 0.01kg

Samples

Maximum Sample Quantity: 1 piece
Sample Price: $5 per piece

Certifications & Factory

Frequently Asked Questions

Q1: How to select a suitable motor?

A1: If you have motor pictures, drawings, or detailed specifications (voltage, speed, torque, size, working mode, lifetime, noise level), please contact us. We will recommend suitable motors based on your requirements.

Q2: Do you offer customization services?

A2: Yes, we can customize voltage, speed, torque, shaft size/shape, and add accessories like wires, connectors, capacitors, or EMC components.

Q3: Do you provide individual design services?

A3: Yes, we offer custom motor design services. This may involve mold charges and design fees depending on the project requirements.

Q4: Can I order samples for testing?

A4: Yes, after confirming motor specifications, we will provide a proforma invoice for samples. Payment confirmation allows us to proceed with sample production.

Q5: How do you ensure motor quality?

A5: We maintain strict quality control with inspection procedures for incoming materials, production process monitoring, and final inspection before shipping to ensure product quality.
