Motor Manufacturer 37mm Geared 12v 24v Customized Speed Torque 520 DC Gear Motor with Encoder for Robot

Motor Manufacturer 37mm Geared 12v 24v Customized Speed Torque 520 DC Gear Motor with Encoder for Robot

Brand Name:	Masing Motor
Model Number:	MS-GM37B520
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

16949,ROHS CE ISO

Product Name:

24v DC Gear Motor With Encoder

Gearbox Diameter:

φ37mm Gearbox

Brush Tpye:

Carbon Brush Or Metal Brush

Certification:

16949,ISO,RoHS,CE

Direction Of Rotation:

CW/CCW Available

Gearbox Material:

Metal Gear Box

Rated Voltage:

DC 6V-24V

Shaft Diameter:

φ6mm

Rated Torque:

0.1kgf.cm-30kgf.cm

Rated Speed:

3rpm-3000rpm

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

37mm DC gear motor with encoder

12v 24v geared motor for robot

customized speed torque DC motor

Product Description

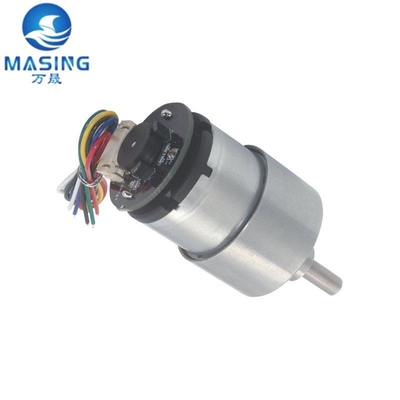

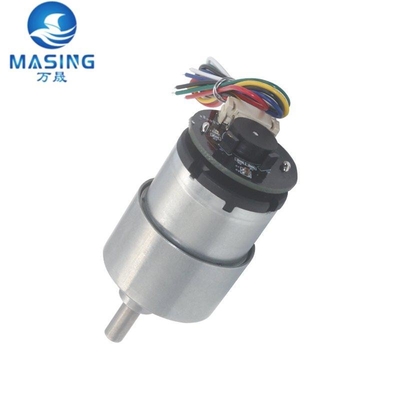

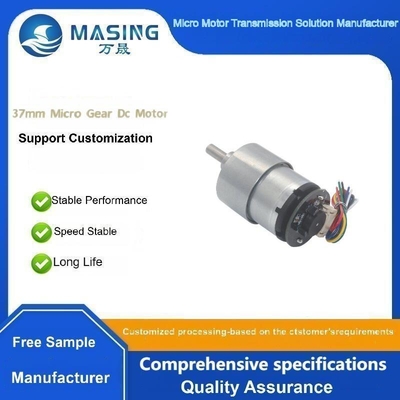

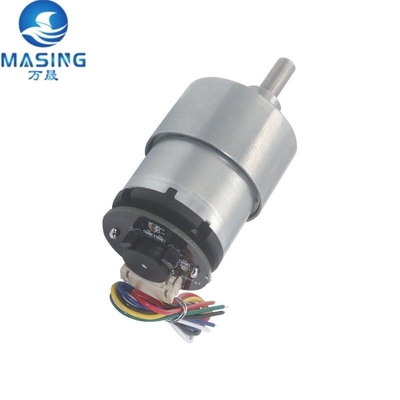

37mm Geared DC Motor with Encoder

High-performance 37mm diameter DC gear motor with encoder, available in 12V/24V configurations. Customizable speed, torque, and specifications for robotic and automation applications.

Product Specifications

Rated Voltage: DC 6V-24V (Customizable)
Rated Speed: 3-3000 RPM (Customizable)
Power: 0.1W-30W (Customizable)
Gearbox Diameter: Ø37mm Metal Gearbox
Gear Reduction Ratio: 1:10 to 1:1006 (Customizable)
Shaft Diameter: Ø6mm, Ø7mm, Ø8mm (Customizable)
Shaft Material: Carbon Steel or Stainless Steel
Rated Torque: 0.1-35 kgf.cm
Lifetime: 100-5000 hours
Direction: CW/CCW Available

Compatible Motor Types

RF-500, RF-520, RF-528, RS-385/380, RS-365/360, RS-390, RS-395, RS-540, RS-545, RS-550, RS-555 permanent magnet DC brushed motors

Optional Accessories

Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, and other customizations available

Technical Specifications

Model	Voltage (V)	No Load Speed (RPM)	Rated Load Speed (RPM)	Rated Torque (Nm)	Output Power (W)
37GB-528B-10	6	580	470	0.029	1.45
37GB-528B-30	6	193	156	0.88	1.44
37GB-528B-50	6	116	94	0.13	1.35
37GB-528B-70	12	117	94	0.38	3.76
37GB-528B-90	12	90	73	0.49	3.74

Product Images

Packaging & Delivery

Packaging: Strong Carton (80pcs/box) or custom packaging
Port: Shenzhen/Guangzhou/Shanghai
Single Package Size: 12×10×24mm
Single Gross Weight: 0.230kg
Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	1-100	101-1000	>1000
Lead Time (days)	10	15	To be negotiated

Applications

Robotics, home appliances, vending machines, medical devices, automation equipment, smart home systems, electric curtains, security systems, and various industrial applications.

Frequently Asked Questions

Q1: What's the price?

A1: Price is based on specifications including speed, voltage, and custom requirements. As a professional manufacturer, we provide competitive pricing.

Q2: What's the delivery time?

A2: Standard delivery is 10-15 days for small quantities. For large orders, delivery time is negotiated. We offer expedited production for urgent orders.

Q3: Can you send samples before order?

A3: Yes, we provide samples for quality confirmation via UPS, TNT, FEDEX, or DHL.

Q4: Can you add our logo?

A4: Yes, logo customization is available for most products.

Q5: What's the payment term?

A5: Small amounts: 100% via PayPal. Large amounts: 30% deposit via TT, balance before shipping.
