13MM Small Electric 12V DC Gear Motor Mini 050 030 Geared Motors For Smart Lock And Toys

Name: 13MM Small Electric 12V DC Gear Motor Mini 050 030 Geared Motors For Smart Lock And Toys
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MSGM13F030
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MSGM13F030
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ISO ,ROHS

Product Name:

13MM Small Electric 12V DC Gear Motor

Shaft Type:

Flat,M3 M4, D-cut Or Round

Shaft Material:

Stainless Steel And Carbon Steel Shafts

Use:

Home Appliance, Door Lock,smart Toys

Motor Model:

FF-030/FF-050 DC Motor

Gear Box:

13mm Metal Gear Box

Gear Type:

Spur Teeth Gear Motor

Gear Ratio:

1:10 To 1:1000 Customized

Construction:

Permanent Magnet

Power:

0.1W-5W

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

12V DC gear motor

small electric geared motor

mini 050 030 motor

Product Description

13MM Small Electric 12V DC Gear Motor Title:

13MM Small Electric 12V DC Gear Motor Mini 050/030 Geared Motors For Smart Lock And Toys

13MM Small Electric 12V DC Gear Motor Description:

Mootor speed :2rpm -2000rpm
Rated torque :0.1kgf.cm-5kgf.cm
Wide Speed Range: The motor offers a speed range of 2-2000 RPM, making it versatile for various applications, including electric bicycles, home appliances, and robots.
Voltage:DC1.5V-24V
Brush Type:Metal brush or Carbon brush
Gearbox Material :Metal gearbox ,Copper ,Steel or Customized
Gearbox size :13mm Micro Gearbox Match Motor : DC FF-030 FF-050 Brush Motor
Shaft Material : Copper ,steel or carbon steel
SHAFT TYPES:
Out shaft standard as follows,also can customerized due to the user drawings
Round Type :DIA3mm. 4mm. 5mm
D-cut Type: DIA3-D2.5 DIA4-D3 etc
Screw Type: M3 M4 M5 Serial
Trape Type I-cut Type: DIA3-I2 DIA4-I3
Other Type: Shaft with a hole etc
Cost-Effective Solution: This product is a cost-effective solution for industries and hobbyists alike, offering a balance of performance and affordability
Customizable Options: can be customized according to the user's request, allowing for flexibility in design and integration.

13MM Small Electric 12V DC Gear Motor Key attributes:

Speed(RPM)

Customized 2rpm-1000rpm

Continuous Current(A)

Customized

Shaft type

Round ,D-cut,Screw ,Trape or Others

Warranty

Others

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MSGM13F030

Use

Locks ,toys, robots, and automated appliances

Motor Type

FF-030/FF-050 micro motor

Torque

Customized

Power

0.1w-5w

Commutation

Metal Brush /Carton Brush

Protect Feature

Exposed Gearbox

Product Name

13mm Spur Gear DC Motor

Voltage

1.2v-24v

Gear Materials

Metal gearbox ,copper ,steel ect

Gearbox Diameter

φ13mm gearbox

Weight

21g

Noise

≤55DB

MOQ

1000Pcs

Gears Materials

Metal ,copper ,steel ect

Color

Customer's Request

Torque

0.1kgf.cm-5kgf.cm

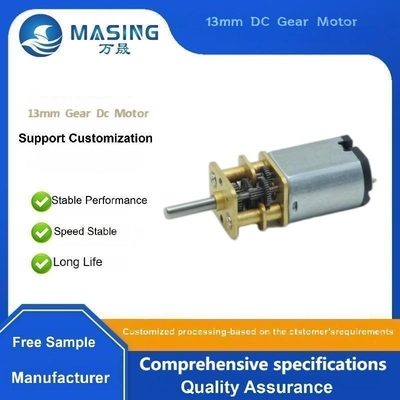

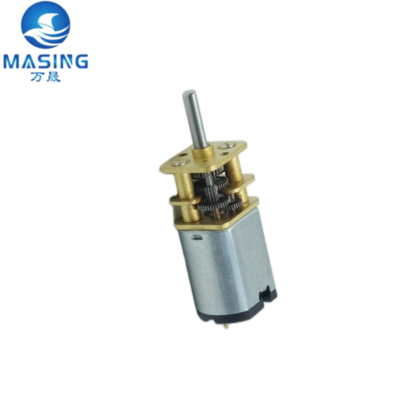

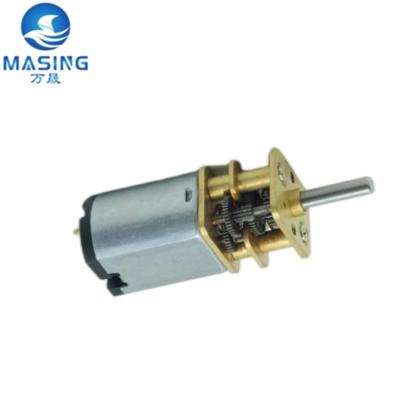

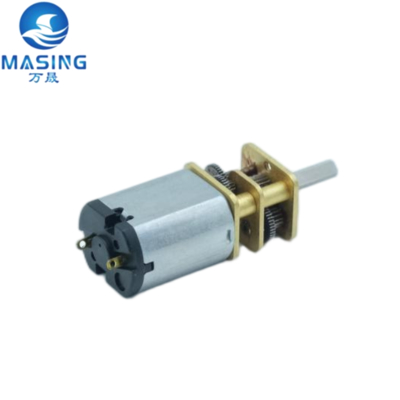

13MM Small Electric 12V DC Gear Motor Product Photo:

13MM Small Electric 12V DC Gear Motor Mini 050 030 Geared Motors For Smart Lock And Toys 0

13MM Small Electric 12V DC Gear Motor Product Spec:

Micro Motor FF-030/FF-050 with Gearbox DC Gear Motor Typical Applications:

Electric Bicycle, Home Appliance, Electronic Door Lock,Smart Home ,Appliance Smart Robot ,Electric Toys,3D printing,Smart cabinet locks

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

13MM Small Electric 12V DC Gear Motor Mini 050 030 Geared Motors For Smart Lock And Toys 3

Motor Technical Data

Motor Model

Voltage

No-load

On-load

Stall

Efficiency

Direction

Shaft Diameter

Wire Length

Speed

Current

Speed

Current

Torque

Current

rpm

mN·m

MS-GM14-030PA-150-12105

105±10%

≤0.070

90±10%

≤0.150

≥245

≤1.0

35.26

CW/CCW

φ3

MS-GM14-030PA-384-0522

22±10%

≤0.050

19±10%

≤0.120

58.8

≥343

≤5.2

33.97

CW/CCW

φ3

Packaging and delivery:

Packaging Details

Strong Carton 400pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

26g

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$10/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home

FAQ

Q1:What's the price?
A1: We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.

Q2: What's the MOQ?
A2: We try to meet every client's requests and don't want to disappoint our clients.

So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to

confirm it.

Q3: What's the delivery time?
A3: At the first we have an schedule,the earlier you place order,the fater we finish the production.

In the slack season,we can make sure the delivery time is by one month.

In the busy season,we need more than one month if your quantity is large.

The most important,we can provide free overtime prodution if your order is really urgent.

Q4:Can you send some samples before the order?
A4: Yes of course,we must send the sample to confirm the quality with you first.UPS,TNT,FEDEX or DHL are all available.

Q5:Can you make our logo on the products?
A5:Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.

Q6: How to deliver the goods?
A6: We will deliver via Express such as UPS,FEDEX,DHL,TNT etc.

It is fast and safety.If goods quantity is large,the shipping cost will be cost-effective
