12MM 3V 5V 6V 1DC Micro LOW Speed Small N20 Encoder Dc Gear Motor for Pill Reminder

12MM 3V 5V 6V 1DC Micro LOW Speed Small N20 Encoder Dc Gear Motor for Pill Reminder

Brand Name:	Masing Motor
Model Number:	MS-GM12N20
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS CE ISO,16949

Product Name:

N20 Gear Motor With Encoder

Gearbox Size:

12*10mm

OEM & ODM:

Accepted

Rated Voltage:

1.2v-24v DC

Rated Power:

0.1-3W Or Can Be Customized

Certificates:

CE Rohs ISO,16949

Bearing Type:

Oil Bearing/ball Bearing

Rated Speed:

3rpm-3000rpm

Material:

Copper ,Steel

Motor Type:

FF-N10,FF-N20,FF-N30

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

12mm N20 encoder DC gear motor

low speed small DC gear motor

5V pill reminder gear motor

Product Description

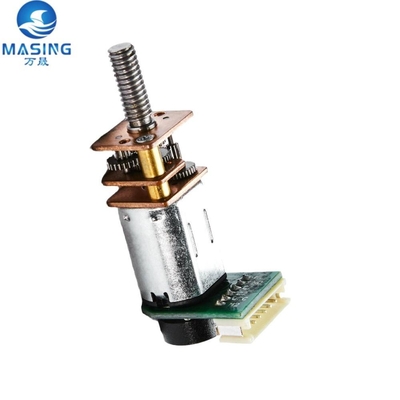

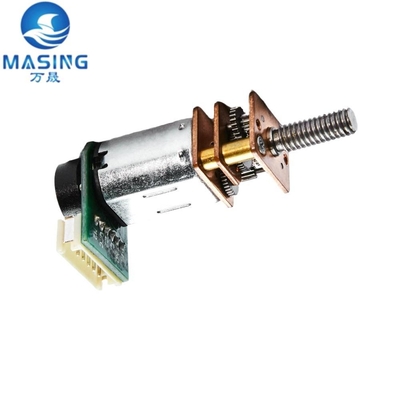

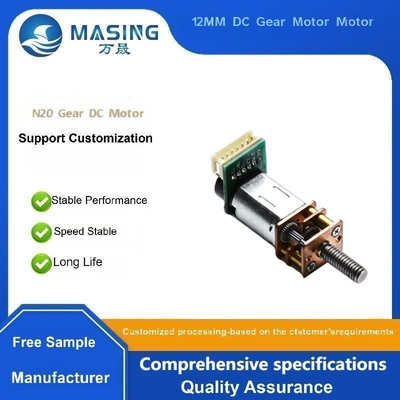

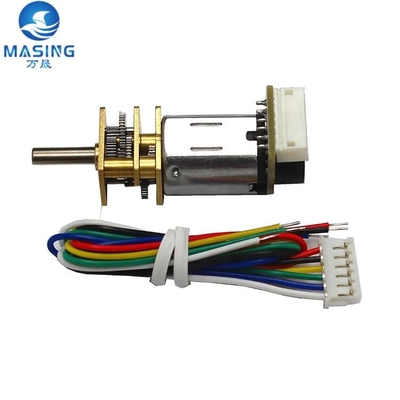

12MM 3V 5V 6V 1DC Micro LOW Speed Small N20 Encoder DC Gear Motor for Pill Reminder

Product Overview

N20 gear motor with encoder designed for precision applications including pill reminder devices, robotics, and smart home systems.

Technical Specifications

Rated Voltage: DC 1.2V - 24V
Rated Speed: 5 RPM - 3000 RPM (motor speed proportional to voltage)
Rated Power: 0.1W - 5W
Gearbox Size: 12×9mm
Rated Torque: 0.05 kgf.cm - 2 kgf.cm
Reduction Ratio: 1:10 to 1:1000 (customizable)
Shaft Diameter: φ3mm, φ4mm or custom
Bearing Type: Ball bearing / Oil bearing
Noise Level: ≤55 DB
Weight: 10g
Lifetime: 100 - 1000 hours

Shaft Types Available

Round Type: DIA 3mm, 4mm, 5mm
D-cut Type: DIA3-D2.5, DIA4-D3, etc.
Screw Type: M3, M4, M5 Serial
Trapezoid/I-cut Type: DIA3-I2, DIA4-I3
Other Types: Shaft with hole, custom designs

Key Attributes

Model Number: MS-GM12FN20
Continuous Current: 10mA - 500mA
Efficiency: IE1
Warranty: 3 Months - 1 Year
Construction: Brush
Rotation Direction: CW or CCW
Protection Feature: Exposed Gearbox
Certifications: CE, RoHS, EU, ISO, 16949
Minimum Order Quantity: 1000 Pcs

Product Images

Applications

Robots, door locks, locker locks, toy cars, home appliances, cameras, medical devices, smart home systems, automotive supplies, security monitoring, and more.

Packaging & Delivery

Packaging: Strong Carton (1000pcs/box) or custom packaging
Port: Shenzhen, Guangzhou, Shanghai
Single Package Size: 12×10×24mm
Single Gross Weight: 0.01kg
Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples

Maximum Order Quantity: 1 piece
Sample Price: $5/piece

Certifications & Factory

Frequently Asked Questions

Q1: Can I have samples for testing first?

A1: Yes, definitely you can. After confirming the needed motor specifications, we will provide a proforma invoice for samples. Once payment is received, we will proceed with sample production.

Q2: How do you ensure motor quality?

A2: We have comprehensive inspection procedures including incoming materials inspection, production process inspection, and final inspection to ensure qualified products before shipping.

Q3: When will you reply after receiving my inquiries?

A3: We respond within 24 hours once we receive your inquiries.

Q4: How to select a suitable motor?

A4: Please provide motor pictures, drawings, or detailed specifications including voltage, speed, torque, size, working mode, lifetime, and noise level. We will recommend suitable motors accordingly.

Q5: What's the minimum order quantity?

A5: Minimum order quantity depends on different motor models. Please email us to check. We typically do not accept personal use motor orders.

Q6: Can I visit your company?

A6: Yes, welcome to visit our company. Please let us know at least two weeks in advance to schedule your visit.

Important Note: Please use the motor within the rated voltage range. Exceeding the specified voltage may cause motor damage.
