BL2838 28mm Planetary Geared Motors With A Hall Sensor Type Bldc Motor With Reducer

Name: BL2838 28mm Planetary Geared Motors With A Hall Sensor Type Bldc Motor With Reducer
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MS-PG28BL2838
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MS-PG28BL2838
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO CE ROHS 16949

Product Name:

28mm Planetary Geared Motors

Shaft Type:

Flat ,D-Cut Or Round Or Double D-cut

Commutation:

Brushless Motor

Structure:

Built-in Driver

Gearbox Diameter:

φ28mm Planetary Gearbox

Gears Material:

Metal ,steel ,plastic ,Powder Metallurgy

Rated Voltage:

6v-24v

Motor Tpye:

BLDC 2838

Materail:

Metal Rohs

Customized:

OEM And ODM

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Product Description

Bldc Motor With Reducer geared Planetary Motor Title:

BL2838 28mm Planetary Geared Motors With A Hall Sensor Type Bldc Motor With Reducer

Bldc Motor With Reducer geared Planetary Motor Description:

Model: PG28-BL2838 Product Name:BLDC 2838 Brushless Planetary Reduction DC Motor
Rated Speed:5rpm -1000RPM or customized
Rotating speed is constant and can be made as you required.
Gearbox Size: φ28mm diameter , BLDC 2838 dc motor with planetary gearbox
Certifications:CE,RoHS,IOS9001,REACH,16949
Suitable to small diameter, low noise and big torque application
Motor default direction:CW&CCW available
Working temperature:-40~+60°c
Structure:Built-in driver
Motor type: Brushless DC Motor
PWM pulse wide speed range
Clockwise/counter-clockwise rotation
FG speed feedback signal
Low EMC Low noise Long life: 20000hrs Min.
Current protection :Over-current protection Over-voltage protection Under-voltage protection
Supported:OEM and ODM orders
Applications:robotic ,5G,Personal care, home application, industry apparatus, business equipment and medical apparatus
High Efficiency and Performance: 6v-24v DC Planetary Geared brushless Motor offers an efficiency of 90-58%,
Samples can be provided for testing
With stable quality,every product will pass 100% quality inspection before shipping

Key attributes:

Speed(RPM)

Customized

Continuous Current(A)

Customized

Efficiency

High Efficiency, IE 4

Warranty

3Months-1Year

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MS-PG28BL2838

Use

SMART HOME,Electric Bicycle Lock, Cosmetic Instrument,robotic ,5G,Personal care, home application, industry apparatus,edical apparatus

Type

28mm Planetary Geared Motors

Signal

FG speed feedback signal

Structure

Built-in driver

Commutation

Brushless motor

Protect Feature

Totally Enclosed

Product Name

micro brushless planetary gear 24V

Gears Material

Metal ,steel ,plastic ,Powder metallurgy

Keywords

28mm brushless dc gear motor

Gearbox Diameter

φ28mm

Direction of motor

CW&CCW

PWM

PWM pulse wide speed range

MOQ

1000Pcs

Rated Power

Customized:1W 3W 4.5W 6W ECT

Supported

OEM and ODM orders

Life time

20000hrs Min.

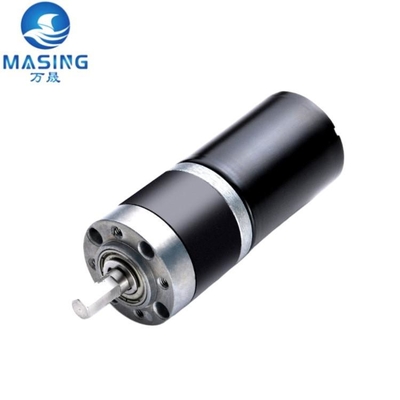

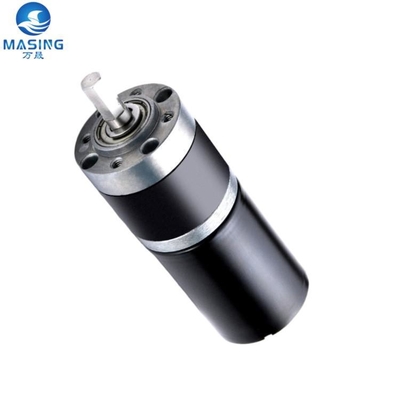

Bldc Motor With Reducer geared Planetary Motor Product Photo:

BL2838 28mm Planetary Geared Motors With A Hall Sensor Type Bldc Motor With Reducer 0

Bldc Motor With Reducer geared Planetary Motor Product Spec:

Micro 28mm DC Brushless Planetary Gear Motor Typical Applications:

SMART HOME,Electric Bicycle Lock, Cosmetic Instrument,robotic ,5G,Personal care, home application, industry apparatus,edical apparatus

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

BL2838 28mm Planetary Geared Motors With A Hall Sensor Type Bldc Motor With Reducer 3

Motor Technical Date
Model	Ratedvoltage		No-load speed		No-load current		Rated torque		Rated speed		Rated current		Rated power		Stall torque
Model	V		RPM		A		g.cm		RPM		A		W		g.cm
BLDC-2838-12	12.0		5200		0.2		200		3700		0.9		10		1600
BLDC-2838-24	24.0		8600		0.3		250		6100		1.1		29		2900
Gear MotorTechnical Data-GMP28-BL2838-12V
Reduction	3.7	5.2	13.7	19.2	27.0	50.5	71	100	139	188	263	370	520	731
Length	65.1		73.2			81.3				92.4
No-load speed	1405	1000	380	271	193	103	73	52	37	28	20	14	10	7
No-loadcurrent	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Rated torque	0.59	0.83	1.92	2.69	3.78	6.06	8.52	12.00	16.68	18.75	36.30	37.00	50.00	50.00
Rated speed	730	519	197	141	100	53	38	27	19	14	10	7	5	4
Rated power	10	10	10	10	10	10	10	10	10	10	10	10	10	10

Gear Motor Technical Data-GMP28-BL2838-24V
Reduction	3.7	5.2	13.7	19.2	27.0	50.5	71	100	139	188	263	370	520	731
Length	65.1		73.2			81.3				92.4
No-load speed	2324	1654	628	448	319	170	121	86	62	46	33	23	17	12
No-load current	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
Rated torque	0.74	1.04	2.40	3.36	4.73	7.58	10.65	15.00	20.85	23.44	32.88	46.25	50.00	50.00
Rated speed	1649	1173	445	318	226	121	86	61	44	33	23	16	12	8
Rated power	29	29	29	29	29	29	29	29	29	29	29	29	29	29

Packaging and delivery:

Packaging Details

Strong Carton 100pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

20.0kg

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$15/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Smart home, smart door locks, personal care, artificial intelligence, automobiles, model airplanes, adult products, security, small home appliances, models, power tools, communication equipment, medical devices, health care equipment, toys and fitness equipment and other products.

BL2838 28mm Planetary Geared Motors With A Hall Sensor Type Bldc Motor With Reducer 9

FAQ

Q1:How to select a suitable motor?

A1:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q2:Do you have a customized service for your standard motors?

A2:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q3: Do you have an individual design service for motors?
A3: Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q4: Can I have samples for testing first?

A4:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

Q5:How do you make sure motor quality?

A5:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

Q6: What's your lead time?

A6:Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders
