Factory 22mm Diameter High Torque Permanent Planetary Gear Dc Brushed Motor For Robot/5G

Factory 22mm Diameter High Torque Permanent Planetary Gear Dc Brushed Motor For Robot/5G

Brand Name:	Masing Motor
Model Number:	MS-22PG180
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO CE ROHS,16949

Product Name:

22mm Planetary Gear Dc Brushed Motor

Shaft Diameter:

φ6mm Or Customized

Efficiency:

IE 4

Rated Speed:

5rpm-1000rpm

Gearbox Diameter:

φ22mm Gearbox

Gearbox:

22mm Planetary Gearbox

Gears:

Metal ,copper ,plastic,steel, Customized

Motor Type:

FF-180 Dc Motor

Rated Voltage:

DC6V-24V

Gear Ratio:

Customized

Rated Torque:

0.5kgf.cm-30kgf.cm

Packaging Details:

Carton Box

Supply Ability:

100000piece/per month

Product Description

22mm Planetary Gear Dc Brushed Motor Title:

Factory 22mm Diameter High Torque Permanent Planetary Gear Dc Brushed Motor For Robot/5G

22mm Planetary Gear Dc Brushed Motor Description:

Model: PGM22-180 Product Name: 22mm Planetary Gear Dc Brushed Motor
Rated Speed:5rpm-1000RPM
Gearbox dianmeter: φ22mm diameter planetary gear dc motor
Suitable to small diameter, low noise and big torque application
Motor default direction:CW&CCW
Working temperature:-40~+60°c
Rotating speed is constant and can be made as you required.
Power 4.5W Maximum torque: 19KG. cm
Motor type: carbon brush/Metal Brush
Scope of use: People, Electric Sanitary Ware, Intelligent Electric, Aviation Model · Field Machinery, Consumer Electronics, Automotive Electronics, Intelligent Machine Home Automation, Production Automation, Medical Equipment, Security Devices
High Efficiency and Performance: 1.2v-24v DC Spur Geared Motor offers an efficiency of 70%, ensuring optimal performance in various applications, including door-lock ,robots ,SMART HOME,Electric Bicycle Lock,Cosmetic Instrument.
We can provide samples for your test.

Key attributes:

Rated Speed(RPM)

2rpm-1000rpm

Continuous Current(A)

10-500mA

Efficiency

57-90%

Warranty

Others

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MS22P180 with Encoder

Use

5G ,door-lock ,robots ,SMART HOME,Electric Bicycle Lock, Cosmetic Instrument

Type

22mm Planetary gear dc motor

Torque

0.5kgf.cm-50kgf.cm

Construction

Permanent Magnet

Commutation

Brush Motor

Protect Feature

Totally Enclosed

Product Name

FF-180 planetary gear reduction dc motor

ApplicationLo

Robots ,door-lock,smart home

Keywords

22mm DC Planetary Gear Motor with Encoder

Gearbox Diameter

φ22mm

Direction

CW&CCW

Noise

≤55DB

MOQ

1000Pcs

Rated Power

Customized:1W 3W 4.5W 6W ECT

Material

Rohs ,Metal

Motor type

24V dc planetary gear motor

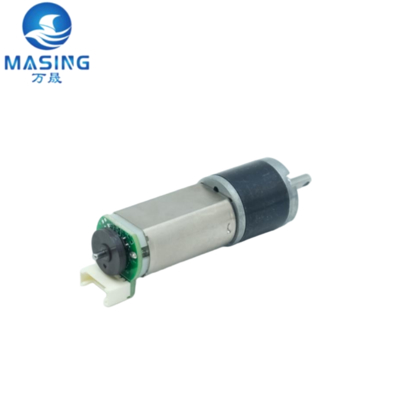

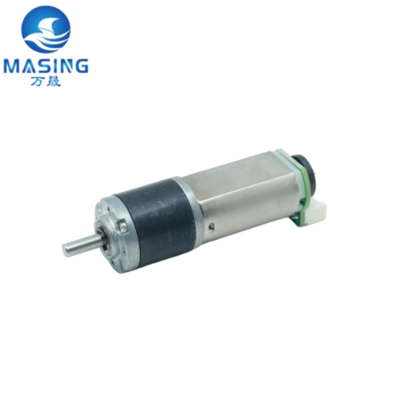

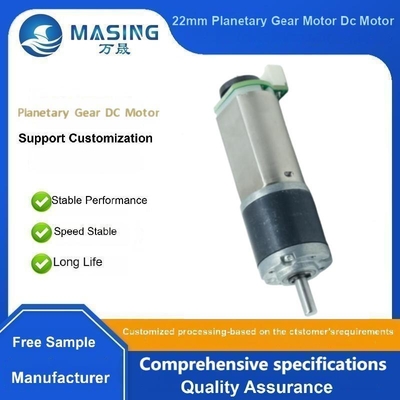

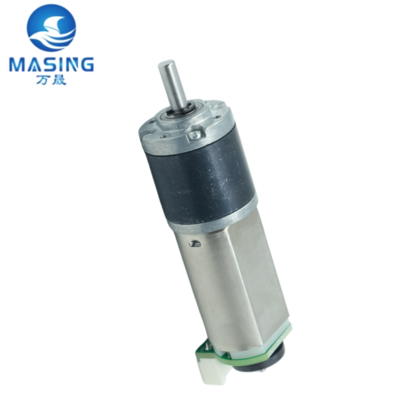

22mm Planetary Gear Dc Brushed Motor Product Photo:

Factory 22mm Diameter High Torque Permanent Planetary Gear Dc Brushed Motor For Robot/5G 0

22mm Planetary Gear Dc Brushed Motor Product Spec:

Micro 22mm DC Planetary Gear Motor Typical Applications:

door-lock ,robots ,SMART HOME,Electric Bicycle Lock,Cosmetic Instrument.

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

Factory 22mm Diameter High Torque Permanent Planetary Gear Dc Brushed Motor For Robot/5G 3

Voltage	Range	V						PGM22-180 6.0-18.0V								-12120
Voltage	Rated	V							DC	12V
Reducer	Ratio	i:1	4	4.75	12	16	24	43	64	107	171	256	361	509	756	1026
Reducer	Size "L"	mm	15.9	15.9	19.4	19.4	19.4	22.9	22.9	22.9	22.9	26.4	26.4	26.4	26.4	26.4
No Load	Speed	rpm	3000	2526	1000	750	500	279	188	112	70	47	33	24	16	12
No Load	Current	mA	200	200	200	200	200	200	200	200	200	200	200	200	200	200
Rated Load	Speed	rpm	257	2165	857	643	429	239	161	96	60	40	28	20	14	10
	Torque	Kgf.cm	0.11	0.12	0.28	0.37	0.56	0.9	1.34	2.23	3.57	4.75	6.7	9.5	14	19.1
	Current	mA	600	600	600	600	600	600	600	600	600	600	600	600	600	600
Stall Load	Torque	Kgf cm	0.72	0.85	1.95	2.6	3.89	6.28	9.34	15.6	25	MAXLoad 25kg.cm,No Stall /禁止堵转
Stall Load	Current	A	3	3	3	3	3	3	3	3	3	3	3	3	3	3
Weight		g	90	90	90	90	90	90	90	90	90	90	90	90	90	90

Voltage	Range	V						PGM22-180 6.0-18.0V								-12120
Voltage	Rated	V							DC	12V
Reducer	Ratio	i:1	4	4.75	12	16	24	43	64	107	171	256	361	509	756	1026
Reducer	Size "L"	mm	15.9	15.9	19.4	19.4	19.4	22.9	22.9	22.9	22.9	26.4	26.4	26.4	26.4	26.4
No Load	Speed	rpm	3000	2526	1000	750	500	279	188	112	70	47	33	24	16	12
No Load	Current	mA	200	200	200	200	200	200	200	200	200	200	200	200	200	200
Rated Load	Speed	rpm	257	2165	857	643	429	239	161	96	60	40	28	20	14	10
	Torque	Kgf.cm	0.11	0.12	0.28	0.37	0.56	0.9	1.34	2.23	3.57	4.75	6.7	9.5	14	19.1
	Current	mA	600	600	600	600	600	600	600	600	600	600	600	600	600	600
Stall Load	Torque	Kgf cm	0.72	0.85	1.95	2.6	3.89	6.28	9.34	15.6	25	MAXLoad 25kg.cm,No Stall /禁止堵转
Stall Load	Current	A	3	3	3	3	3	3	3	3	3	3	3	3	3	3
Weight		g	90	90	90	90	90	90	90	90	90	90	90	90	90	90

Factory 22mm Diameter High Torque Permanent Planetary Gear Dc Brushed Motor For Robot/5G 4

Packaging and delivery:

Packaging Details

Strong Carton 400pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

37X27X24cm

Single gross weight:

20.0kg

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$15/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home,door-lock ,robots ,Electric Bicycle Lock,Cosmetic Instrument.

Factory 22mm Diameter High Torque Permanent Planetary Gear Dc Brushed Motor For Robot/5G 10

FAQ

Q1:What're your main products?

A1:We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.

Q2: How to select a suitable motor?

A2:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.

Q3:Do you have a customized service for your standard motors?

A3:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q4:Do you have an individual design service for motors?

A4:Yes, we would like to design motors individually for our customers, but it may need some mould charge and design charge.

Q5: Can I have samples for testing first?
A5: Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly.

Q6:How do you make sure motor quality?

A6:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
