37mm High Torque Dc Gear Motor 12v 10 Rpm 33 Rpm Gear Motor For Baby Cradle

Name: 37mm High Torque Dc Gear Motor 12v 10 Rpm 33 Rpm Gear Motor For Baby Cradle
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MS-GM37B520
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MS-GM37B520
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

16949,ROHS CE ISO

Product Name:

12volt Dc Geared Motor

Gearbox Diameter:

φ37mm Gearbox

Brush Tpye:

Carbon Brush Or Metal Brush

Certification:

16949,ISO,RoHS,CE

Direction Of Rotation:

CW/CCW Available

Gearbox Material:

Metal Gear Box

Rated Voltage:

DC6V-24V

Shaft Diameter:

φ6mm

Rated Torque:

0.1kgf.cm-30kgf.cm

Rated Speed:

3rpm-3000rpm

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Product Description

Title:

37mm High Torque Dc Gear Motor 12v 10 Rpm 33 Rpm Gear Motor For Baby Cradle

Description:

Rated Voltage:DC6v-24v or Customized
Rated Speed:3rpm-3000rpm Customized
Power:0.1W-30W Customized
Factory customization: customized according to demand, high performance, stable and controllable
Gearbox diameter :Ø37mm
Gearbox material :Rohs Metal Gearbox
Gear Reduction ratio:Customized 1:10-1:1006
Match Motor Types: RF-500,RF-520,RF-528,RS-385/380.RS-365/360.RS-390 ,RS-395,RS-540,RS-545,RS-550,RS-555 permanent magnet DC brushed motors
Bearing at output:Oil bearing or Ball bearing ,
Accessories:Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc (Optional)
Shaft Diameter :Ø6mm,Ø7mm,Ø8mm or Customized
Shaft Material:Carbon Steel or Stainless Steel
Shaft type: Round ,Flat,M6,Threaded hole,Bare /D-Cut /Pin Hole /Keyway shaft (Can be Customized)
Rated torque :0.1kgf.cm-35kgf.cm
Meet EU environmental standards: low energy consumption, low noise
Use:Home Appliance, robot,vending machine, medcial device,Robots, home appliances, vending machines, paper feeders, tissue kneaders, automation equipment
Direction of motor :CW/CCW available
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
Sample testing can be provided

Key attributes:

Rated Speed(RPM)

2rpm-3000rpm

Continuous Current(A)

Customized

Efficiency

90%-58%

Warranty

3Months -1Year

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MS-GM37B520

Use

Home Appliance, robot,vending machine, medcial device ,Robot Vacuum Cleaner,Home Appliance, door lock,camera,medcial device,Robots, electronic locks, public bicycle locks, relays

Gearbox Material

φ37mm gearbox

Gear Ratio

1:10-1:1006

Construction

Permanent Magnet

Direction of Rotation

cw & ccw available

Protect Feature

Totally Enclosed

Product Name

12volt gear motor

Gear box

37mm Metal Gearbox

Certificates

16949,ISO,CE,Rohs

Gearbox Size

φ37mm gearbox

Rated Voltage

DC 6v-24v

Gear Type

Straight tooth

MOQ

1000Pcs

Shaft Material

Carbon Steel or Stainless Steel

Shaft Type

Round ,Flat,M6,Threaded hole,Bare /D-Cut /Pin Hole /Keyway shaft

Life time

100hours-5000hours

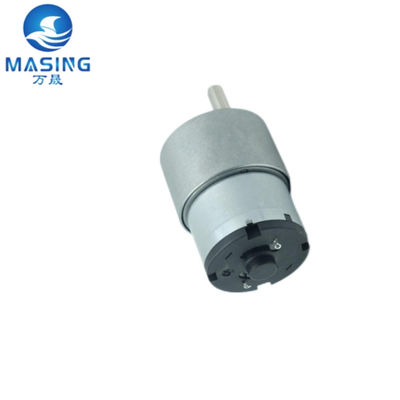

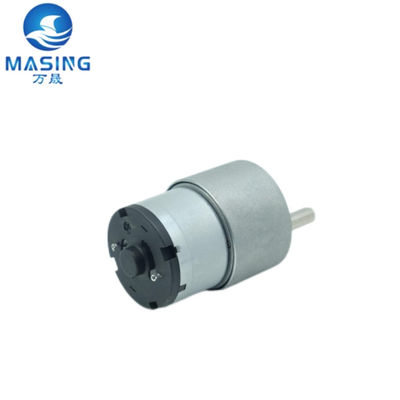

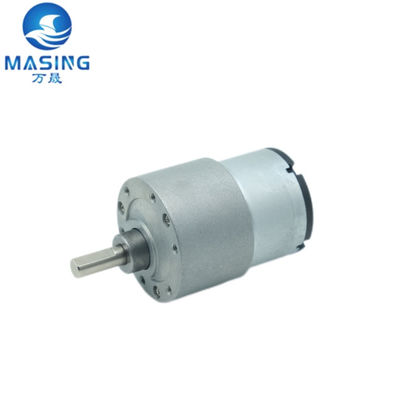

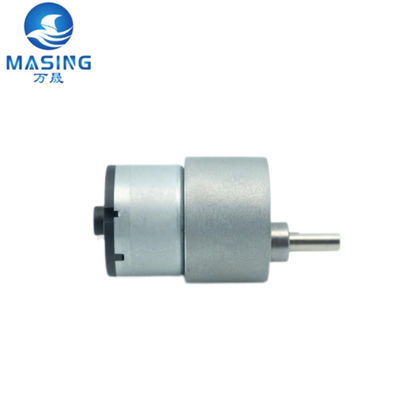

Product Photo:

37mm High Torque Dc Gear Motor 12v 10 Rpm 33 Rpm Gear Motor For Baby Cradle 0

Product Spec:

37mm Gearbox DC Spur Metal Geared Motor Typical Applications:

Robots, home appliances, vending machines, paper feeders, tissue kneaders, automation equipment

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

37mm High Torque Dc Gear Motor 12v 10 Rpm 33 Rpm Gear Motor For Baby Cradle 3

Gear ratio iand length L of motor
Number of stages	2	3	4	5	6
Gear ratio i	6	16.7	45	110	330
	10	23.3	50	121	350
		30	60	135	405
			70	150	420
			90	180	450
			100	210	490
				250	540
				270	630
				300	810
Leng th of gearbox L(mm)	19	21.5	24	26.5	29

SPECIFICATIONS:
MODEL	Voltage V	NO LOAD		RATED LOAD				STALL
MODEL	Voltage V	SPEED rpm	CURRENT A	SPEED rpm	CURRENT A	TORQUE Nm	OUTPUT W	TORQUE Nm	CURRENT A
37GB-528B-10	6	580	0.25	470	0.6	0.029	1.45	0.147	2.2
37GB-528B-30	6	193	0.25	156	0.6	0.88	1.44	0.44	2.2
37GB-528B-50	6	116	0.25	94	0.6	0.13	1.35	0.65	2.2
37GB-528B-70	12	117	0.2	94	0.75	0.38	3.76	1.85	3.2
37GB-528B-90	12	90	0.2	73	0.758	0.49	3.74	2.45	3.2
37GB-528B-150	12	40	0.15	32	0.55	0.49	1.64	2.6	2.5
37GB-528B-180	12	33	0.15	26.5	0.55	0.63	1.76	3.13	2.5
37GB-528B-210	12	28.5	0.15	22.5	0.55	0.73	1.73	3.7	2.5
37GB-528B-270	6	21	0.25	17	0.6	0.63	1.13	3.3	2.2
37GB-528B-490	6	11.5	0.25	9.5	0.6	1.07	1.07	5.8	2.2
37GB-528B-630	6	9	0.25	7	0.6	1.37	1.0	6	2.2

Packaging and delivery:

Packaging Details

Strong Carton 80pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

12X10X24mm

Single gross weight:

0.230kg

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$5/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Robots, home appliances, vending machines, paper feeders, tissue kneaders, automation equipment

Electric curtains,Safe / Locker,Bean Mill.Coffee Machine,Smart Door Locks,Floor sweeper.

Medical equipment	sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer.
Business Machines	intelligent robot,Copiers and Scanners, 3D Printers, Tattoo pen.
Electric powered equipment	Electric toothbrush,Electric tool,adult erotica products,Electric toy car,Electric curtain.
Smart Home	Intelligent window opener ,vacuum cleaner, Smart coffee machine,hair drier,Fascia gun,fan,air cleaner,Hair removal device,door lock,Intelligent door lock.
Food and Beverage	Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Robotics	Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot.

FAQ

Q1:What's the price?

A1:We're a professional manufacturer So the exact price is based on clients' specifications,such as the speed,voltage etc.

Q2: What's the MOQ?
A2: We try to meet every client's requests and don't want to disappoint our clients.So the MOQ is flexible if the product is not complicated to produce and we are not in a busy season.Kindly chat with our saler to confirm it.

Q3:What's the delivery time?

A3:At the first we have an schedule,the earlier you place order,the fater we finish the production.

In the slack season,we can make sure the delivery time is by one month.

In the busy season,we need more than one month if your quantity is large.

The most important,we can provide free overtime prodution if your order is really urgent.

Q4: Can you send some samples before the order?
A4:Yes of course,we must send the sample to confirm the quality with you first.UPS,TNT,FEDEX or DHL are all available.

Q5:Can you make our logo on the products?
A5: Certainly,logo is easy as most of our products are customizable.So logo in usually logo is necessary.It can be labeled on the motors.

Q6:What's the payment term?
A6: For small amount,we accept 100% payment via paypal.

For large amount,we accept 30% telegraphic transfer(TT) as the deposit.And the rest must be paid before shipping.
