12mm3v 6v High Torque Good Quality Electric Brush Motor Micro N10 N20 N30 DC Gear Motor With Encoder

Title:

12mm3v 6v High Torque Good Quality Electric Brush Motor Micro N10 N20 N30 DC Gear Motor With Encoder

Description:

• Rated voltage :DC1.2V-12V

• Rated Speed:3rpm-3000rpm

• The motor speed is proportional to the motor voltage.

• Gearbox Diameter:12mm*9mm Mini Gearbox

• Match Motor Type : N10,N20, N30,Micro DC Motors

• Reduction ratio:1:10 ,1:20,1:30,1:50,1:75 ,1:100,1:150,1:210,1:250,1:298, 1:300,1:500,1:1000 or Customized

• The above gearbox reduction ratio is our compangy's conventional reduction ratio,and the reduction ratiocan be customized

• Rated torque :0.05kgf.cm-1kgf.cm

• The torque of the motor is nronortional to the speed of the motor

• Accessories:Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan, Encoders, gears and other requirements can be configuredetc (Optional)

• Bearing Materails:Ball bearing / Oil bearing

• Applications:Robot,Locks ,Locker lock,Toys car,

• Factory customization: customized according to demand, high performance, stable and controllable

• Meet EU environmental standards: low energy consumption, low noise

• Shaft diameter :φ3mm or φ4mm

• SHAFT TYPES:

  Out shaft standard as follows,also can customerized due to the user drawings

  welcome to contact customer service for more types

• Round Type :DIA3mm. 4mm. 5mm

• D-cut Type: Dia3-D2.5 Dia4-D3 etc

• Screw Type: M3 M4 M5 Serial

• Trape Type I-cut Type: DIA3-I2 DIA4-I3

• Other Type: Shaft with a hole etc

• Quality: With professional equipment, improve the testing process, quality control system

• Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.

• We can provide sample testing

Key attributes:

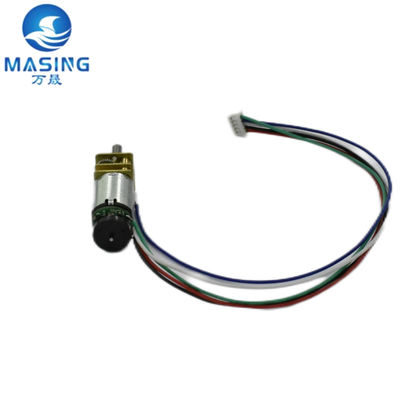

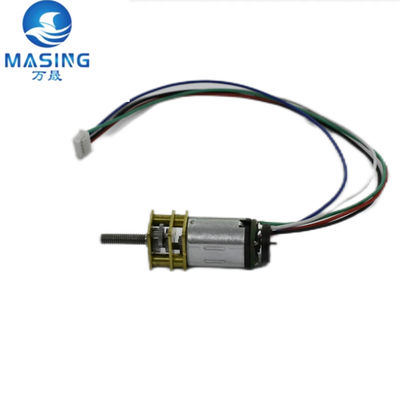

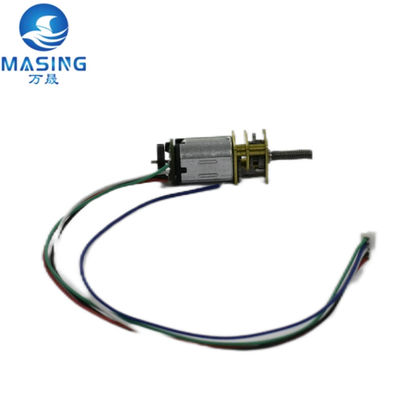

Product Photo:

Product Spec:

N20 DC Spur Gear Motor Typical Applications:

Car, Home Appliance, Cosmetic instrument, SMART HOME, robots,door lock,projector

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

Packaging and delivery:

Supply Ability:

Lead time:

Samples:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home
