Low RPM 12mm N20 High Torque Mirco Brushed Geared Motor 2.4V 5V 6V 12V Mini DC Motor For Electric Vehicle

Title:

Low RPM 12mm N20 High Torque Mirco Brushed Geared Motor 2.4V 5V 6V 12V Mini DC Motor For Electric Vehicle

Description:

• Rated voltage :DC1.2V-12V

• The motor speed is proportional to the motor voltage.

• Rated speed :3000rpm-25000rpm

• Motor Size:φ12mm*L15mm

• Rated torque :0.05kgf.cm-2kgf.cm,The torque of the motor is nronortional to the speed of the motor

• Gearbox:φ12*9mm gearbox with N20, N30, N10 permanent magnet DC motors

• Meet EU environmental standards: low energy consumption, low noise

• Shaft diameter :φ3mm,φ4mm or Customized

• Direction of motor:CW &CCW

• Encoders, gears and other requirements can be configured

• Reduction ratio:1:10 ,1:20,1:30,1:50,1:75 ,1:100,1:150,1:210,1:250,1:298, 1:300,1:500,1:1000

• The above gearbox reduction ratio is our compangy's conventional reduction ratio,and the reduction ratiocan be customized

• Quality: With professional equipment, improve the testing process, quality control system

• Motor voltage speed torque eccentric wheel size and material can be customized according to customerrequirements.

• Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.

• SHAFT TYPES:

  Out shaft standard as follows,also can customerized due to the user drawings

  welcome to contact customer service for more types

• Round Type :DIA3mm. 4mm. 5mm

• D-cut Type: DIA3-D2.5 DIA4-D3 etc

• Screw Type: M3 M4 M5 Serial

• Trape Type I-cut Type: DIA3-I2 DIA4-I3

• Other Type: Shaft with a hole etc

• Free sample testing can be provided

• Every product must pass the inspection before leaving the factory

Key attributes:

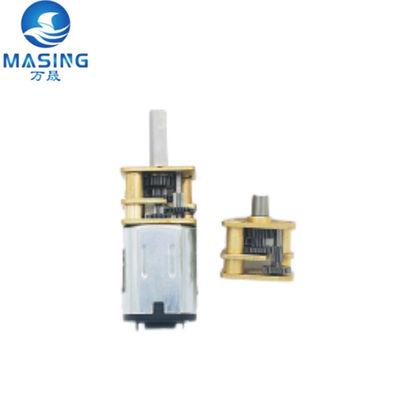

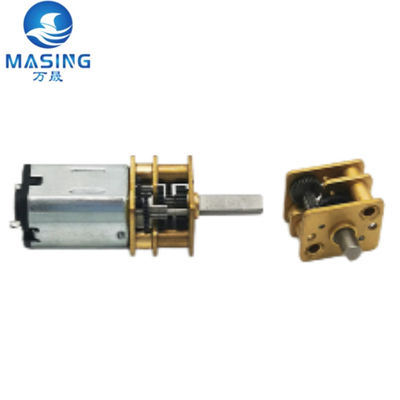

Product Photo:

Product Spec:

N20 Gear Motor Typical Applications:

Car, Home Appliance, Cosmetic instrument, SMART HOME, robots,door lock,projector

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

Packaging and delivery:

Supply Ability:

Lead time:

Samples:

Factory Show:

Product Classification:

Applications:

Driverless,Artificial intelligence,Intelligent transportation,Health care,Smart city,Automotive supplies,Security monitoring,

5G communication,Smart home
