FF-N20 High Torque Low Rpm Dc Gear Motor with 12mm Gearbox for Electric Vehicle Charging Station

FF-N20 High Torque Low Rpm Dc Gear Motor with 12mm Gearbox for Electric Vehicle Charging Station

Brand Name:	Masing Motor
Model Number:	MS-GM12N20
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS CE ISO 16949

Product Name:

3v Dc Gear Motor

Shaft Type:

Flat ,D-cut ,Round,M3 M4 Or Customized

Brush Type:

Metal Brush Or Carton Brush

Rated Torque:

0.05kg-1.5kg

Motor Size:

φ12mm *L15mm

Direction Of Rotation:

CCW&CW

Gearbox Material:

Copper,steel Or Customized

Certificates:

16949,CE Rohs,ISO

Shaft Diameter:

φ3mm D-cut 2.5mm

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

High Torque Dc Gear Motor

12mm Gearbox Dc Gear Motor

Product Description

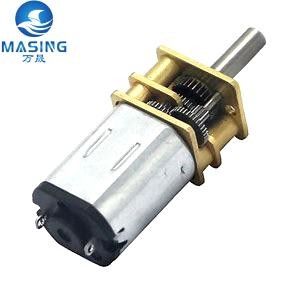

FF-N20 High Torque Low RPM DC Gear Motor with 12mm Gearbox for Electric Vehicle Charging Station

Product Overview

FF-N20 Motor with 12mm Gearbox High Torque Low RPM DC Motor Gear specifically designed for EV charging stations and various industrial applications.

Rated Voltage: DC 1.5V-12V

Rated Speed: 10-3000 RPM (customizable)

Rated Torque: 0.05-2.0 kgf.cm

Motor Size: φ12mm × L15mm

Efficiency: 56%-85%

Noise Level: ≤55 DB

Technical Specifications

Motor Type: Mini 5V Geared Motor

Continuous Current: 10mA-500mA

Shaft Diameter: φ3mm D-cut 2.5mm

Gearbox Diameter: 12mm

Temperature Range: -40℃ to +60℃

Lifetime: 500-1000 hours / 200,000 cycles

Weight: 10g

Rotation Direction: CW/CCW available

Customization Options

Gearbox Material: Copper, steel, or customized
Shaft Type: Round, M3, M4, with hole, D-cut, Flat, or customized
Brush Type: Metal brush or carbon brush
Accessories: Encoder, wires, gears, fan, or customized
Color: Customer's request

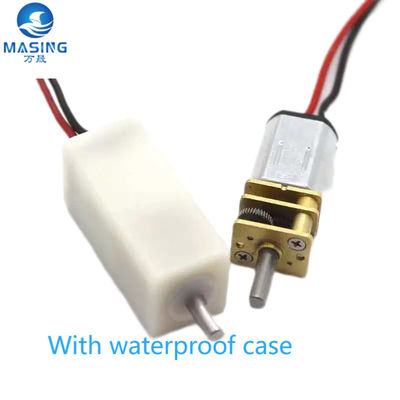

Product Images

Applications

Electric Vehicle Charging Stations
Educational robots and smart robots
Beauty products and cosmetic instruments
Smart home appliances and electronic door locks
Automotive supplies and security monitoring
3D printing and electric toys
Smart cabinet locks and industrial automation

Packaging & Delivery

Packaging: Strong Carton (1000pcs/box) or customized

Package Size: 37×27×24 cm

Gross Weight: 10.0 kg

Port: Shenzhen/Guangzhou/Shanghai

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples & Ordering

Free sample testing available - Maximum order quantity: 1 piece

Sample price: $5/piece or negotiable

MOQ: 1000 pieces (small orders accepted for new business)

Quality Assurance

Every product undergoes 100% quality inspection before shipping
Warranty: 3 months to 1 year
Supply Capacity: 100,000 pieces per month

Frequently Asked Questions

How can I know if the product is suitable for my application?

Provide detailed requirements including voltage, no-load speed, load speed, load torque, and shaft length. We will recommend suitable products and provide samples for testing.

Do you accept custom specifications?

Yes, we have a strong design team to handle custom requirements and provide technical solutions.

What information do I need to provide when ordering?

Please provide voltage, speed, torque requirements, and overall dimension specifications.

Do you provide samples?

Yes, we provide samples with delivery time of 5-15 days. Sample charges are refundable upon formal order placement.
