RS-380/385 DC Motor with 32mm Gearbox , High Torque 12V 24V DC Spur Geared Motor for Robot

RS-380/385 DC Motor with 32mm Gearbox , High Torque 12V 24V DC Spur Geared Motor for Robot

Brand Name:	Masing Motor
Model Number:	MS-GM32R380
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS,CE,ISO,16949

Product Name:

12 Volt Gear Reduction Motor

Shaft Diameter:

φ6mm,D-cutm

Rated Torque:

0.1kgf.cm-30kgf.cm

Protect Feature:

Totally Enclosed

Direction Of Rotation:

CW/CCW Available

Gearbox Material:

Metal Gearbox

Gearbox Diameter:

φ32mm Metal Gearbox

Construction:

Permanent Magnet

Gears:

Metal ,Powder Metallurgy,Plastic

Rated Voltage:

6volt-24volt

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

DC Spur Geared Motor

32mm Gearbox DC Motor

Spur Geared Motor for Robot

Product Description

RS-380/385 DC Motor with 32mm Gearbox - High Torque 12V 24V DC Spur Geared Motor for Robot

Product Overview

High-performance DC spur geared motor offering exceptional efficiency and torque for robotic and automation applications. Features metal gearbox construction with customizable options.

High Efficiency: 50%-75% operating efficiency
Rated Voltage: DC 6V - 24V
Speed Range: 2RPM - 3000RPM
Shaft Diameter: φ6mm
Shaft Types: M5/M6/Bare/D-Cut/Double D-Cut/Pin Hole/Keyway (Customizable)
Gearbox Diameter: φ32mm metal construction
Low Noise Operation: Suitable for noise-sensitive applications
Torque Range: 0.1kgf.cm - 30kgf.cm
Motor Type: Carbon Brush Motor

Technical Specifications

Parameter	Specification
Speed (RPM)	3RPM - 3000RPM
Voltage	DC 3V - 24V
Efficiency	50% - 80%
Warranty	3 Months - 1 Year
Place of Origin	Guangdong, China
Brand Name	Masing Motor
Model Number	MS-GM32RS380
Motor Type	Brush Motor
Torque	0.1kgf.cm - 30kgf.cm
Construction	Permanent Magnet
Commutation	Brush
Protection Feature	Totally Enclosed
Rotation Direction	CW & CCW
Gearbox Material	Metal
Gearbox Length	21mm - 29mm
Gearbox Ratio	1:5 - 1:1006
MOQ	1000 Pcs
Certification	CE, ROHS, ISO, 16949

Applications

Home appliances, automatic products, locks, automotive, robotics, automatic equipment, lawn mowers, electric curtains, vending machines, medical devices, driverless systems, artificial intelligence, intelligent transportation, healthcare, smart cities, security monitoring, 5G communication, smart home, automatic door operators, and more.

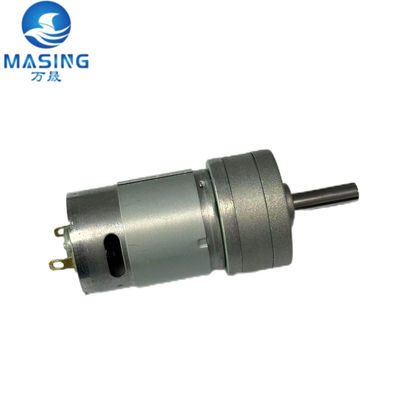

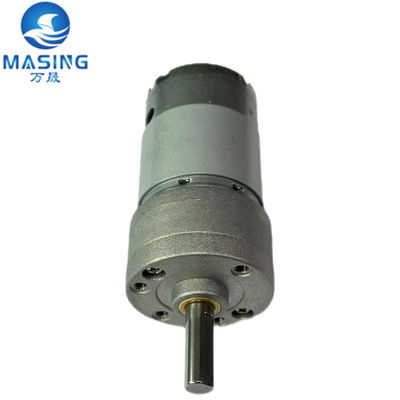

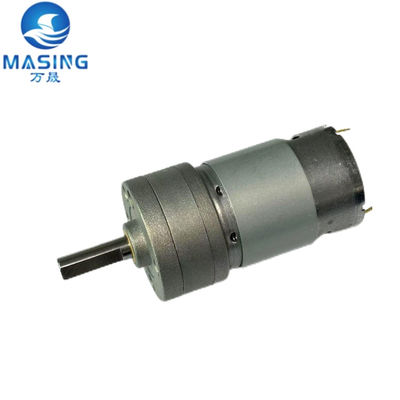

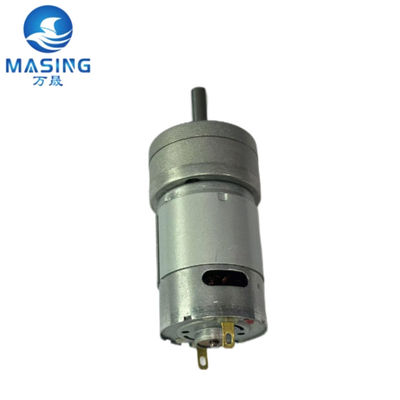

Product Images

Packaging & Delivery

Packaging: Strong carton (80pcs/box) or customized packaging

Port: Shenzhen/Guangzhou/Shanghai

Package Size: 37×27×24cm

Gross Weight: 130-160g per unit

Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	Lead Time (days)
1 - 100	10
101 - 1000	15
> 1000	To be negotiated

Samples & Certifications

Sample Price: $10/piece

Maximum Sample Order: 1 piece

Frequently Asked Questions

Q1: How to order?

A1: Send inquiry → Receive quotation → Negotiate details → Confirm sample → Sign contract/deposit → Mass production → Cargo ready → Balance/delivery → Further cooperation.

Q2: How to select a suitable motor?

A2: Provide motor pictures, drawings, or detailed specifications (voltage, speed, torque, size, working mode, lifetime, noise level) and we will recommend suitable options.

Q3: Do you offer customization services?

A3: Yes, we customize voltage, speed, torque, shaft size/shape, and can add wires, connectors, capacitors, or EMC components.

Q4: Do you provide individual design services?

A4: Yes, we offer custom motor design services, which may require mold and design charges.

Q5: Can I get samples for testing?

A5: Yes, after confirming specifications, we provide proforma invoice for samples. Payment confirmation initiates sample production.

Q6: How do you ensure motor quality?

A6: We implement comprehensive inspection procedures: incoming materials verification, production process tour inspection, and final product inspection before shipping.

Q7: What if I don't know the technical data?

A7: Contact our sales team for professional assistance and guidance.

Note: Voltage, rated torque, speed, current, power, and shaft size can be customized according to requirements.
