Rs-385 Rs-395 Dc Motor With 37mm Gearbox Dc 12v Gear Motor High Torque Brushed Gear Motor

Rs-385 Rs-395 Dc Motor With 37mm Gearbox Dc 12v Gear Motor High Torque Brushed Gear Motor

Brand Name:	Masing Motor
Model Number:	MS-GM37B385
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS,CE,ISO，16949

Product Name:

Dc 12v Gear Motor

Shaft Diameter:

φ6mm,D-cutm

Rated Torque:

0.1kgf.cm-30kgf.cm

Protect Feature:

Totally Enclosed

Direction Of Rotation:

CW/CCW Available

Gearbox Material:

Metal Gearbox

Gearbox Diameter:

φ37mm Gearbox

Construction:

Permanent Magnet

Gearbox Length:

21mm To 29mm

Rated Voltage:

6volt-24volt

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

12v gear motor high torque brushed

high torque brushed gear motor

12v brushed gear motor

Product Description

RS-385 RS-395 DC Motor With 37mm Gearbox DC 12V Gear Motor High Torque Brushed Gear Motor

Product Overview

High efficiency DC spur geared motor offering exceptional performance with customizable options for various industrial applications.

High Efficiency: 50%-75% efficiency rating
Rated Voltage: DC 6V-24V
Rated Speed: 2RPM - 3000RPM
Shaft Diameter: φ6mm with multiple customization options
Gearbox Diameter: φ37mm metal construction
Low Noise Operation with High Torque: 0.1kgf-30kgf.cm
Motor Type: Carton Brush Motor
Direction: CW & CCW rotation

Technical Specifications

Speed (RPM)

3RPM - 3000RPM

Continuous Current

10-800mA

Efficiency

50%-80%

Model Number

MSGM37B385

Motor Type

Brushed DC Motor

Torque

0.1kgf.cm - 30kgf.cm

Construction

Permanent Magnet

Certification

CE, ROHS, ISO, 16949

Performance Data

Current(A) MAX	Speed rpm±12%	Torque kg.cm	Motor Size mm	Gear Ratio (k:1)	Gearbox Size mm	Current(A) MAX	Speed rpm±12%
0.1	8000	0.165	38	10	16.8	0.3	800.0
0.1	8000	0.165	38	30	20.2	0.15	266.7
0.1	8000	0.165	38	50	20.2	0.3	160.0
0.1	8000	0.165	38	90	20.2	0.3	88.9
0.1	8000	0.165	38	150	20.2	0.3	53.3

Applications

Automatic equipment, Lawn mower, Electric curtain, Home Appliance, robot, vending machine, medical device, Driverless systems, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Smart home, Automatic door operators, and more.

Packaging & Delivery

Packaging

Strong Carton 80pcs/box (customizable)

Port

Shenzhen/Guangzhou/Shanghai

Package Size

37×27×24cm

Weight

130-160g

Lead Time:
1-100 pieces: 10 days
101-1000 pieces: 15 days
Over 1000 pieces: Negotiable

Samples & Certifications

Sample price: $10/piece (Maximum order quantity: 1 piece)

Certifications

Factory

Product Range

Frequently Asked Questions

Q1: How to order?

A1: Send us inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production → Cargo ready → Balance/delivery → Further cooperation.

Q2: What's the price?

A2: Exact pricing is based on client specifications including speed, voltage, and other requirements.

Q3: What's the MOQ?

A3: Minimum order quantity is flexible depending on product complexity and production schedule. Standard MOQ is 1000 pieces.

Q4: What's the delivery time?

A4: Typically 10-15 days for standard orders. During busy seasons, delivery may extend beyond one month for large quantities.

Q5: Can you make our logo on the products?

A5: Yes, logo customization is available for most products.

Q6: What data do I need to provide for ordering?

A6: Please provide rated voltage, no load speed, load speed, load torque, and overall dimension requirements.

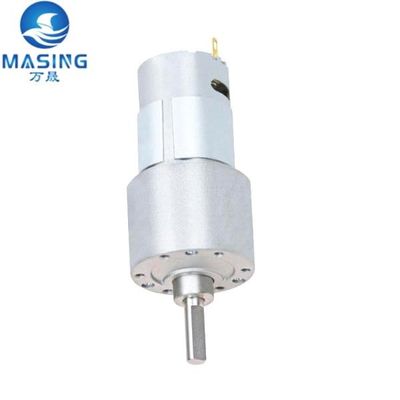

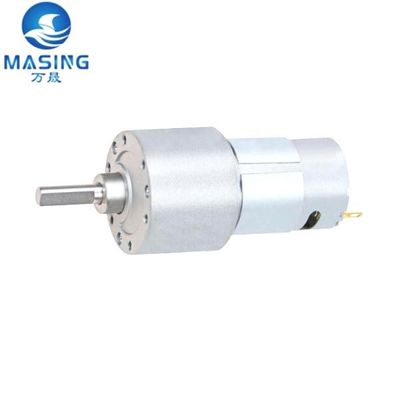

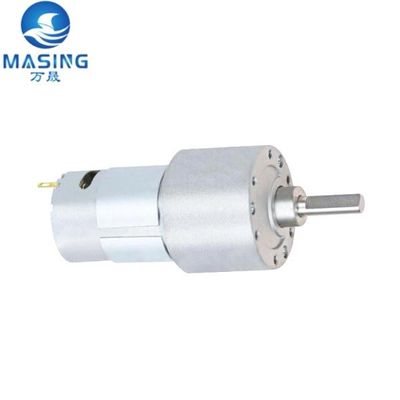

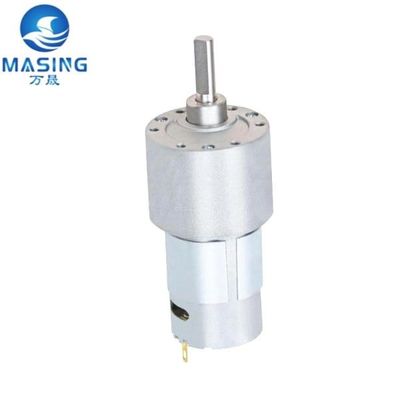

Product Images
