Rf-370 Dc Motor With 25mm Diameter Gearbox 60 Rpm Dc Gear Motor 6volt 12v For Robot And Shoe Polisher

Name: Rf-370 Dc Motor With 25mm Diameter Gearbox 60 Rpm Dc Gear Motor 6volt 12v For Robot And Shoe Polisher
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MSGM25A370
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MSGM25A370
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

16949,ROHS ,CE,ISO

Product Name:

60rpm Dc Gear Motor

Gearbox Dimension:

φ25mm Gearbox

Motor Type:

370 Brushed Motor

Certification:

16949,EU,RoHS,CE,ISO

Direction Of Rotation:

CW/CCW Available

Rated Power:

0.5W-10W

Gears Material:

Plastic ,Metal ,Steel .copper Ect

Shaft Diameter:

φ4mm ,D-cut

Rated Torque:

0.1kgf.cm-10kgf.cm

Brush Type:

Metal Brush Or Carbon Brush

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

25mm 370 dc motor

25mm dc gear motor

12v 370 dc motor

Product Description

Title:

Rf-370 Dc Motor With 25mm Diameter Gearbox 60 Rpm Dc Gear Motor 6volt 12v For Robot And Shoe Polisher

Description:

Voltage range:DC3.0v-24v
Rated speed :2rpm-2000rpm or Customized
Gearbox diameter :Ø25mm , Gearbox material :Metal Gearbox
Gear Reduction ratio: 1:10-1:1051 or Customized
Motor model selection: RF-300,RF-310,RF-370,RS-385,RS-380.RS-365.RS-390 Permanent magnet DC brushed motors
Motor Type :BLDC ,DC Brushless Motor and Brush Motor
Direction of motor :CW/CCW available
Motor Accessories:Wires,Gear, Connectors, Gearbox, Encoder, Brake, Cool Fan, etc
Use: Shoe polisher,Electric curtain,Smart Breast Shaker,Motorcycle smart lock,Meat Grinder, Intelligent Car ,Home Equipment ,Home Appliance, robots,vending machine, medcial device,Paper shredder, smart toilet lid,
Shaft types: Round ,Flat,Bare ,D-Cut,Pin Hole ,Threaded shaft,Keyway shaft (Can be Customized)
Shaft Material: Customized,Carbon Steel or Stainless Steel
Quality control
Raw-material traceability identification and Finished product inspection
Services

ODM and ODM and Minor customization and Design-based customization
Meet EU environmental standards: low energy consumption, low noise
Please refer to the rated voltage used by our motor,the voltage exceeding the range of use of our voltagemay cause the machine to burn.
We can provide samples for testing

Key attributes:

Speed(RPM)

2rpm-2000rpm or Customized

Continuous Current(A)

10mA-500mA

Efficiency

50%-85%

Warranty

Others

Place of Origin

Guangdong, China

Brand Name

Masing Motor

Model Number

MSGM25A370

Use

Shoe polisher,Electric curtain,Smart Breast Shaker,Motorcycle smart lock,Meat Grinder, Intelligent Car,robots,vending machine, medcial device ,Robot Vacuum Cleaner,Home Appliance, door lock,camera,medcial device,Robots, electronic locks, public bicycle locks, relays

Gearbox Diameter

φ25mm Gearbox

Gear Ratio

1:15-1:1051

Motor Type

Brush Motor /Brushless Motor

Direction of Rotation

cw or ccw available

Protect Feature

Totally Enclosed

Product Name

370 gearbox dc motor

Gearbox Material

Metal gearbox

Certificate

16949,EU ,CE,Rohs,ISO

Gear Material

Plastic gears,Powder metallurgy,Metal ,Steel .copper ect

Rated Voltage

DC 1.5v-24v

Noise

≤50DB

MOQ

1000Pcs

Shaft Diameter

φ4mm ,D-cult

Shaft Type

Round/ Flat/Threaded hole/Threaded shaft/Bare /D-Cut /Pin Hole /Keyway shaft

Motor Life time

500hours-2000hours

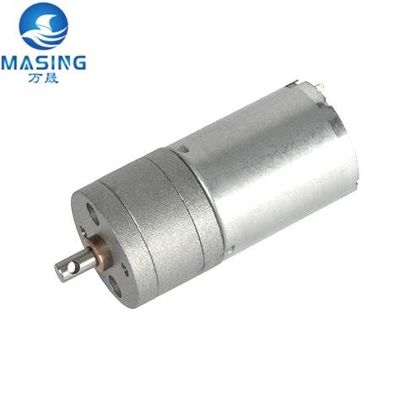

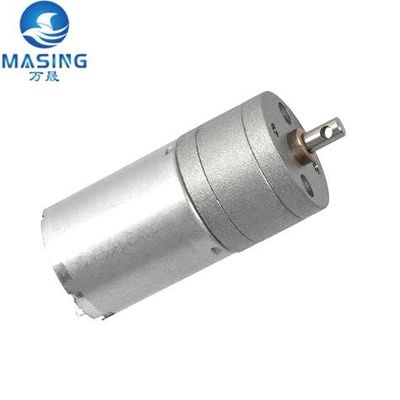

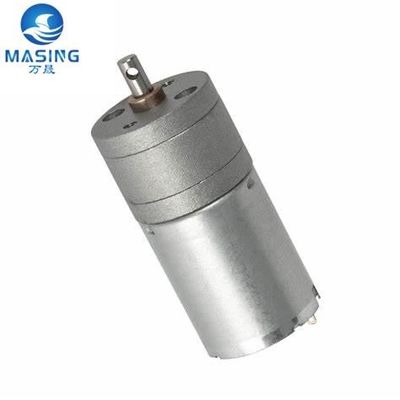

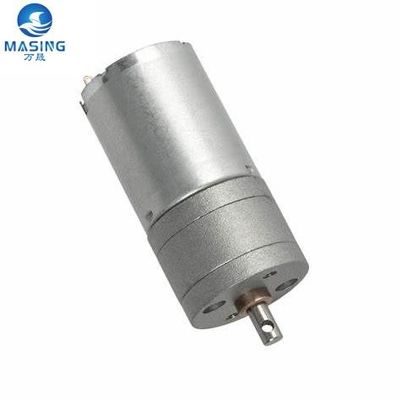

Product Photo:

Product Spec:

GM25A310 DC Spur Gear Motor Typical Applications:

Smart Breast Shaker,Motorcycle smart lock,Meat Grinder, Intelligent Car,robots,vending machine, medcial device ,Robot Vacuum Cleaner,Home Appliance, door lock,camera,medcial device,Robots, electronic locks, public bicycle locks, relays

Voltage,ratedtorque,speed,curent,powerand shaftsize can be customizedasrequrement.

Rated Voltage:	1.2-24V DC
Reduction Ratio:	1:10-1:1051
No-load speed(RPM):	2~2000rpm
No-Load Current mA(≤):	10-500mA
Rated Speed(RPM):	1.5-1800rpm
Rated Current mA(≤):	80-800mA
Rated Torque(Kg,cm):	0.03-10kg,cm
Stall/Maximum Torque (Kg,cm):	0.5-25kg,cm
Stall Current(A) :	0.5-5A
Shaft:	416 Steel, D-cut 3.5mm ,Φ4.0 Length 11.5mm
Gear:	Plastic ,steel ,powder gear , copper gear

Rf-370 Dc Motor With 25mm Diameter Gearbox 60 Rpm Dc Gear Motor 6volt 12v For Robot And Shoe Polisher 3

Packaging and delivery:

Packaging Details

Strong Carton 1000pcs/box, or as you wish.

Port

Shenzhen/Guangzhou/Shanghai

Selling Units:

Single item

Single package size:

12X10X24mm

Single gross weight:

0.045kg

Supply Ability:

Supply Ability

100000 Piece/Pieces per Month

Lead time:

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples:

Maximum order quantity: 1piece

Sample price:

$5/piece

Certifications:

Factory Show:

Product Classification:

Applications:

Meat Grinder, Intelligent Car ,Home Equipment ,Home Appliance, robots,vending machine, medcial device

Business Machines	Vending Machines	Printers	ATM	Copiers and Scanners
Camera and Optical	Video	CCTV Cameras	Projectors
Lawn and Garden	Lawn Mowers	Snow Blowers	Trimmers	Leaf Blow

FAQ

Q1:Can I have samples for testing first?

A1:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples, once we get the payment, we will get a PASS from our account department to proceed samples accordingly

Q2:How do you make sure motor quality?

A2: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

Q3:What is your MOQ?

A3:Our MOQ is 1000pcs. But at the beginning of our business, we accept small order

Q4: What's your lead time?

A4: Generally speaking, our regular standard product will need 25-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders

Q5:Can you send me your price list?

A5: Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquiries to make sure you can get the price in time
