Dc Gear Motor With Encoder 12ppr 24ppr N20 Electric Robot Brushed Motor Mini 12mm dc gear motor

Dc Gear Motor With Encoder 12ppr 24ppr N20 Electric Robot Brushed Motor Mini 12mm dc gear motor

Brand Name:	Masing Motor
Model Number:	MSGM12N20
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS CE ISO 16949

Product Name:

N20 12mm Dc Gear Motor

Gearbox Shaft:

φ3mm,D-cut Customized

Rated Torque:

5gf.cm-2kgf.cm

Motor Size:

φ12mm *15mm

Motor Model:

FF-N20,FF-N30

Gearbox Diameter:

φ12mm Gearbox

Construction:

Permanent Magnet

Usage:

Robots ,Locks,Toys ,robot Vacuum Cleaner, Laser

Direction Of Motor:

Cw&ccw Available

Motor Type:

Brushed Motor

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

n20 12mm dc gear motor

n20 dc gear motor with encoder

brushed 12mm dc gear motor

Product Description

DC Gear Motor with Encoder

N20 Electric Robot Brushed Motor Mini 12mm DC Gear Motor with 12PPR/24PPR Encoder

Product Overview

This high-performance DC gear motor features a compact design with encoder options, making it ideal for robotics and automation applications. The motor offers customizable specifications to meet specific project requirements.

Technical Specifications

Rated Voltage: DC 1.2V-24V
Rated Speed: 5RPM-3000RPM (speed proportional to voltage)
Rated Torque: 10gf.cm-2kgf.cm (torque proportional to speed)
Gearbox Size: φ12*9mm metal gearbox
Gearbox Material: Copper and stainless steel
Shaft Diameter: φ3mm with D-cut
Bearing Type: Ball bearing / Oil bearing
Weight: 10g
Noise Level: ≤55DB

Compatible Motors & Accessories

Compatible with FF-N10, FF-N20, FF-N30 brushed DC motors

Optional accessories: Wires, Connectors, Gearbox, Encoder, Brake, Cool Fan

Key Attributes

Speed (RPM)	5RPM-3000RPM
Continuous Current	10mA-300mA
Gearbox Shaft	Flat, M3, M4, D-cut or Round
Warranty	3 Months - 1 Year
Place of Origin	Guangdong, China
Brand Name	Masing Motor
Model Number	MS1215 DC Gear Motor
Minimum Order Quantity	1000 Pieces

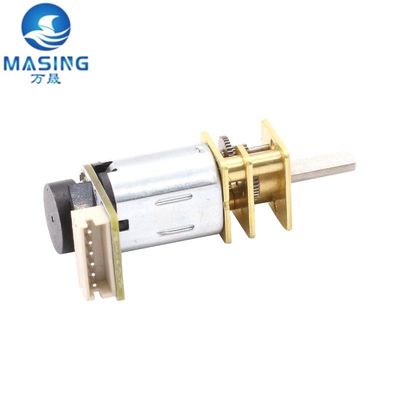

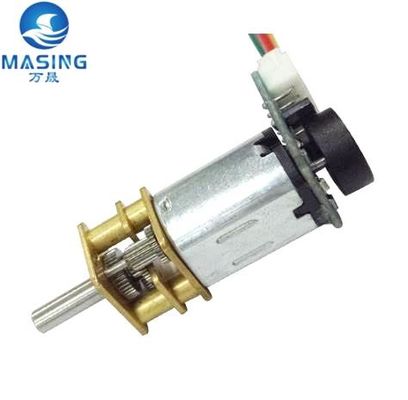

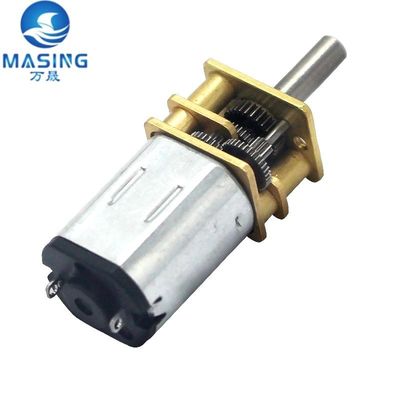

Product Images

Applications

Robot vacuum cleaner, laser systems, automotive applications, home appliances, cosmetic instruments, smart home devices, robotics, door locks, projectors, driverless technology, artificial intelligence, intelligent transportation, healthcare, smart city infrastructure, security monitoring, 5G communication.

Technical Documentation

Packaging & Delivery

Packaging Details	Strong Carton (1000pcs/box) or custom packaging
Shipping Port	Shenzhen/Guangzhou/Shanghai
Package Size	372724cm
Gross Weight	10.0kg

Production Capacity & Lead Time

Supply Ability: 100,000 pieces per month

Quantity (pieces)	Lead Time (days)
1 - 100	10
101 - 1000	15
> 1000	To be negotiated

Samples

Maximum order quantity: 1 piece

Sample price: $10/piece

Certifications & Quality

Professional equipment with comprehensive quality control system

Manufacturing Facilities

Product Range

Frequently Asked Questions

Q1: Can I visit your company?

A1: Yes, welcome to visit our company. Please notify us at least two weeks in advance to schedule your visit.

Q2: How can we get samples?

A2: Samples are shipped via express (DHL/UPS/FEDEX/TNT) within 1 day after receiving your address.

Q3: Can we test samples?

A3: Yes, we have R&D and Testing Center. Customized samples and freight are charged.

Q4: Do you offer discounts?

A4: As a factory, we offer competitive pricing. Large quantity orders are eligible for price negotiation.

Q5: How can I know if the product is suitable for my application?

A5: Provide your detailed requirements, and we will recommend suitable products and prepare samples accordingly.

Q6: Why should I choose your products?

A6: Our products offer high quality at competitive prices with comprehensive customization options.
