Powerful Factory High Quality 3640 Brushless Dc Motor 37mm Spur Gear Motor Dc 24 Volt Dc Gear Motor

Powerful Factory High Quality 3640 Brushless Dc Motor 37mm Spur Gear Motor Dc 24 Volt Dc Gear Motor

Brand Name:	Masing Motor
Model Number:	MSGM37BL3640
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

16949,ROHS CE ISO

Product Name:

24 Volt Dc Gear Motor

Gearbox Dimension:

φ37mm Gearbox

Motor Type:

Brushless Motor

Certification:

16949,ISO,RoHS,CE

Direction Of Rotation:

CW/CCW Available

Shaft Diameter:

φ6mm,D-cut

Gear Material:

Steel ,Plastic,copper,Customized

Shaft Material:

Carbon Steel Or Stainless Steel

Rated Torque:

0.1kgf.cm-30kgf.cm

Gear Type:

Spur Gears

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

plastic dc gear motor

customized dc gear motor

plastic dc reduction gear motor

Product Description

Powerful Factory High Quality 3640 Brushless DC Motor 37mm Spur Gear Motor DC 24 Volt

Factory customization available with high performance and stable controllability. Designed for robots and various industrial applications.

Product Specifications

Rated Voltage: DC 12V-24V
Rated Speed: 2RPM-3000RPM (Customizable)
Power: 0.1W-30W
Gearbox Diameter: Ø37mm Metal Gearbox (RoHS Compliant)
Gear Reduction Ratio: 1:6.7-1:2700 (Customizable)
Motor Type: Brushless DC Motor
Motor Sizes: φ36×L40mm, φ36×L36mm, φ36×L26mm, φ36×L50mm, φ36×L57mm
Bearing Type: Ball Bearing or Oil Bearing
Shaft Size: Ø6mm D-cut, Ø7mm D-cut, or Customized
Shaft Type: Threaded Hole, Bare/D-Cut/Double D-Cut/Pin Hole/Keyway Shaft, Flat, M6 (Customizable)

Key Attributes

Speed (RPM): 1.5RPM - 2000RPM
Continuous Current: 10mA-500mA
Efficiency: 81%-48%
Warranty: 3 Months - 1 Year
Place of Origin: Guangdong, China
Brand Name: Masing Motor
Model Number: MSGM37BL3640
Construction: Permanent Magnet
Direction of Rotation: CW or CCW Available
Protect Feature: Totally Enclosed
Certificates: 16949, ISO, CE, RoHS
MOQ: 1000 Pieces
Lifetime: 1000-5000 Hours

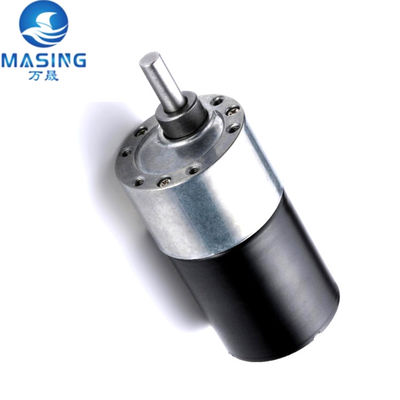

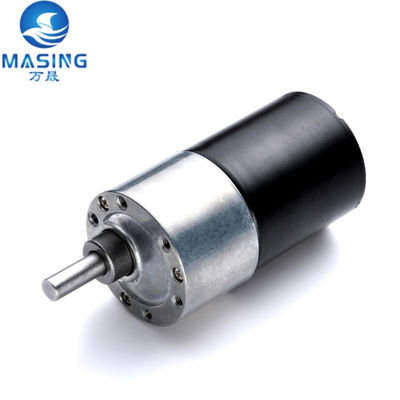

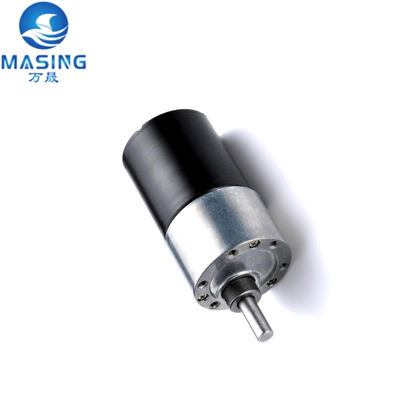

Product Images

Technical Data

37mm Gearbox DC Spur Metal Geared Brushless Motor - Typical Applications include smart home devices, robots, office supplies, power tools, medical equipment, precision instruments, automotive electronics, and home appliances.

Voltage, rated torque, speed, current, power, and shaft size can be customized according to requirements.

Number of Stages	2	3	4	5	6	7
Reduction Ratio (K)	6.8/10	20/30	61/90/100	115/184/270/300	414/552/614/810/900	1243/1657/2430/2700
Length of Gear box L (mm)	18	21.5	24	26.5	29	31.5
Rated Torque (kg-cm)	1	2	5	6	8	10
Transient Torque (kg-cm)	3	6	15	18	24	30
Efficiency (%)	81%	73%	65%	59%	53%	48%

Packaging & Delivery

Packaging: Strong Carton (80pcs/box) or Custom
Port: Shenzhen/Guangzhou/Shanghai
Selling Units: Single Item
Package Size: 12×10×24mm
Gross Weight: 0.230kg
Supply Ability: 100,000 Pieces per Month

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples & Certifications

Maximum Sample Quantity: 1 piece
Sample Price: $15/piece or Negotiable

Applications

Driverless systems, Artificial intelligence, Intelligent transportation, Health care, Smart city, Automotive supplies, Security monitoring, 5G communication, Robots, home appliances, vending machines, paper feeders, tissue kneaders, automation equipment, Electric curtains, Safe/Locker, Bean Mill, Coffee Machine, Smart Door Locks, Floor sweeper.

Medical Equipment	Business Machines	Electric Powered Equipment	Smart Home	Food and Beverage	Robotics
Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer	Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen	Electric toothbrush, Electric tool, Adult erotica products, Electric toy car, Electric curtain	Intelligent window opener, Vacuum cleaner, Smart coffee machine, Hair drier, Fascia gun, Fan, Air cleaner, Hair removal device, Door lock, Intelligent door lock	Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers	Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot

Frequently Asked Questions

Q1. Are you trading company or manufacturer?

A1: We're factory. We specialize in micro DC motor, brushless motor and DC gear motor for more than 14 years.

Q2: Can I visit your company?

A2: Yes, welcome to visit our company, but please let us know at least two weeks in advance to help us make sure no other meetings during the day you visit us. Always a pre-production sample before mass production; Always final Inspection before shipment.

Q3: What's the minimum order quantity?

A3: Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use of motor orders.

Q4: I can't find a suitable motor on your website, can you customize the motor?

A4: Yes, we can customize a suitable motor according to our customer's requirements.

Q5: How is your Quality Control?

A5: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
