Brushed RF-310 Motor With 25mm Metal Gearbox Dc Gear Motor For Robot And Motorcycle Lock

Name: Brushed RF-310 Motor With 25mm Metal Gearbox Dc Gear Motor For Robot And Motorcycle Lock
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MSGM25A310
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MSGM25A310
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS CE ISO 16949

Product Name:

Small Gear Motor

Gearbox Shaft:

φ4mm

Motor Tpye:

Brushless Motor And Brush Motor

Certification:

16949,RoHS,CE,ISO.EU

Brush Type:

Carbon Brush/metal Brush

Gearbox Diameter:

φ 25mm Gearbox

Gearbox Material:

Plastic ,copper ,steel ,metal

Shaft Type:

Round ,flat ,d-cut ,with A Hole ,screw Shaft

Rated Torque:

0.1Nm-1Nm

Shaft Material:

Copper ,Steel ,Plastic

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

brushed dc gear motor

brushed dc reduction gear motor

25mm dc gear motor

Product Description

Brushed RF-310 Motor With 25mm Metal Gearbox DC Gear Motor

Product Overview

High-performance brushed RF-310 motor with 25mm metal gearbox, designed for robotics, motorcycle locks, and various automation applications. Features customizable voltage, speed, and torque specifications.

Key Specifications

Rated Voltage: DC 1.5V - 24V

Speed Range: 2 RPM - 2000 RPM

Efficiency: 56% - 85%

Gearbox Diameter: Ø25mm

Shaft Diameter: φ4mm D-cut 3.5mm

Rated Power: 0.1W - 5W

Noise Level: ≤55 DB

Motor Lifetime: 500 - 1000 hours

Product Features

High efficiency and performance with 70% efficiency rating
Sturdy construction ensures durability and reliability
Low noise operation for quiet performance
Metal gears provide high performance and reliability
Shaft equipped with metal bushes for extended lifespan
High torque at low current consumption
Meets EU environmental standards: low energy consumption, low noise
100% inspection before shipment

Technical Details

Gear Reduction Ratio: 1:10 - 1:1051 (Customizable)

Motor Type: Brush Motor or Brushless Motor

Motor Models: RF-300, RF-310, RF-370, RS-385, RS-365, RS-390 (Optional)

Shaft Type: M4, M5, Bare / D-Cut / Double D-Cut / Pin Hole / Keyway shaft (Customizable)

Bearing Type: Oil bearing / Ball bearing / Sleeve bearing

Brush Type: Metal brush/Carton brush

Rotation Direction: CW or CCW available

Protection Feature: Totally Enclosed

Gearbox Performance Data

Gear Stages	3	4	5	6	7	8
Reduction Ratio	9.3, 10.3, 11.5	20.4, 23, 25, 28	45, 50, 55, 62, 68	99, 110, 122, 136, 151, 167	217, 241, 268, 298, 331, 368, 409	478, 531, 590, 656, 729, 810, 900, 1000
Gearbox Length (mm)	17.5	19	21	23	25	27
Rated Torque (kg*cm)	0.4	0.5	1	1.7	2	2
Instant Torque (kg*cm)	1.2	1.5	3	4	6	6
Gearbox Efficiency	75%	65%	59%	53%	48%	-

Applications

Robots, electronic locks, public bicycle locks, motorcycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care equipment, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities.

Application Category	Specific Uses
Medical Equipment	Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer
Business Machines	Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen
Electric Powered Equipment	Electric toothbrush, Electric tool, Electric toy car, Electric curtain
Smart Home	Intelligent window opener, vacuum cleaner, Smart coffee machine, hair drier, Fascia gun, fan, air cleaner, Hair removal device, door lock, Intelligent door lock
Food and Beverage	Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers
Robotics	Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot

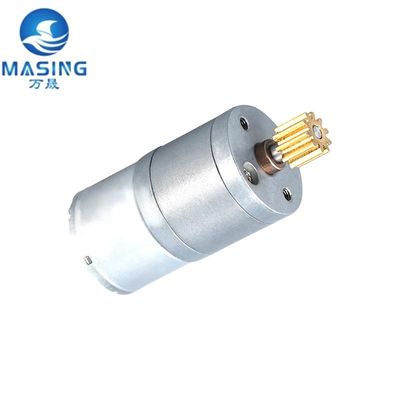

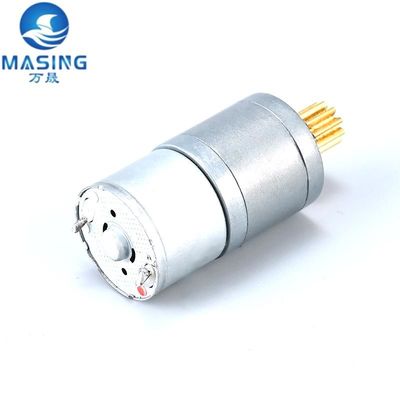

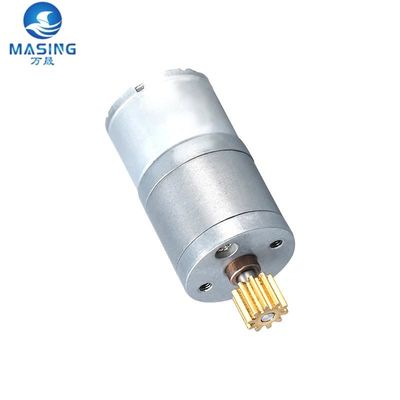

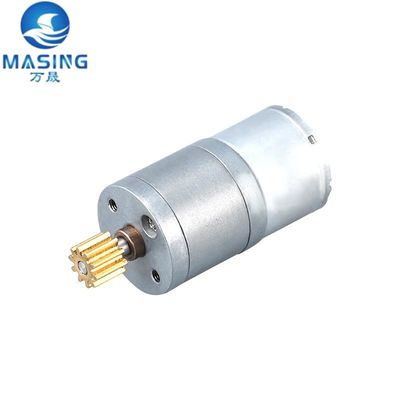

Product Images

Ordering Information

Model Number: MSGM25A310

Brand Name: Masing Motor

Place of Origin: Guangdong, China

MOQ: 1000 Pcs

Supply Ability: 100,000 Pieces per Month

Certifications: 16949, EU, CE, Rohs, ISO

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Packaging & Delivery

Packaging: Strong Carton 1000pcs/box, or as requested

Port: Shenzhen/Guangzhou/Shanghai

Single Package Size: 12×10×24mm

Single Gross Weight: 0.025kg

Samples

Maximum Order Quantity: 1 piece

Sample Price: $5/piece

Frequently Asked Questions

How to select a suitable motor?

If you have motor pictures or drawings, or detailed specifications like voltage, speed, torque, motor size, working mode, needed lifetime and noise level, we can recommend suitable motors per your request.

Do you have a customized service for your standard motors?

Yes, we can customize voltage, speed, torque, shaft size/shape, and add additional wires/cables, connectors, capacitors, or EMC components as needed.

Can I have samples for testing first?

Yes, after confirming the required motor specifications, we will provide a proforma invoice for samples. Once payment is received, we will proceed with sample production.

How do you ensure motor quality?

We have comprehensive inspection procedures: incoming materials inspection, tour inspection during production process, and final inspection before shipping to ensure qualified products.

What's the payment term?

For small amounts: 100% payment via PayPal. For large amounts: 30% telegraphic transfer as deposit, with the balance paid before shipping.

Certifications & Factory

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

Italy Jan 12.2026

trustpilot.com

Helpful (1000)

We purchased 1000 motors. The seller provided excellent service, quick delivery, and the product quality was stable.Exactly as described. Compact size, reliable performance, and consistent 400rpm under 3V.

B*n

Canada Nov 8.2025

Helpful (100)

Worth every penny.It's nice. Perfect replacement motor for my small device. The 12GA‑N20 is well‑built, runs cool, and maintains steady speed. Metal gears make it durable, and the compact form factor saves a lot of space.

Sara

Turkey Oct 28.2025

Helpful (209)

Very good ,the quality is way better than I expected, and it arrived super quickly.
