Gearbox 25mm DC Gear Motor Low Rpm RF-370 High Torque Brushed DC Motor

Gearbox 25mm DC Gear Motor Low Rpm RF-370 High Torque Brushed DC Motor

Brand Name:	Masing Motor
Model Number:	MSGM25A370
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

16949 ,ROHS, CE, ISO 9001

Product Name:

25mm Dc Geared Motor

Gearbox Dimension:

φ25mm Gearbox

Construction:

Permanent Magnet

Rated Speed:

3rpm-1500rpm

Direction Of Rotation:

CW/CCW

Rated Voltage:

DC3V-24V

Gears Material:

Metal ,steel ,copper ,Plastic Gears

Shaft Diameter:

φ4mm

Shaft Type:

D-cut, Round,Flat Ect

Certification:

ISO 9001/IATF16949/ROHS/CE

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

DC Gear Motor Low Rpm

25mm DC Gear Motor

High Torque Brushed DC Motor

Product Description

GM25-370 Micro Metal Gearmotor

25mm diameter gearbox with RF-370 brushed DC motor delivering low RPM with high torque performance.

Product Specifications

Model: GM25-370 micro metal gearmotor
Gearbox: 25mm metal spur gear reducer
Voltage range: DC 3V-24V
Speed: 2RPM-1500RPM (Customized)
Power: 0.1W-10W (Customized)
Gearbox diameter: Ø25mm metal gearbox
Size: Φ25mm × L TBD
Reduction ratio: 1:10-1:1000 (Customized)
Commutation: Carbon brush/Graphite brush/Metal brush
Compatible motors: RF-300, RF-310, RF-370, RS-385, RS-365, RS-390
Output bearing: Ball bearing/Sleeve bearing/Oil bearing
Encoder: Magnetic encoder
Shaft size: Φ4mm D-cut 0.5mm (Customized)
Shaft type: Bare/D-Cut/Double D-Cut/Pin Hole/Keyway shaft (Customized)
Shaft material: Carbon Steel or Stainless Steel
Lifetime: 500-1500 hours

Key Attributes

Speed (RPM)	2RPM-1500RPM
Rated Voltage	DC 3V-24V
Efficiency	90%-58%
Place of Origin	Guangdong, China
Brand Name	Masing Motor
Model Number	MSGM25A370
Gear Ratio	1:15-1:1000
Construction	Permanent Magnet
Direction of Rotation	CW or CCW available
Protect Feature	Totally Enclosed
Certificates	ISO 9001/IATF16949/ROHS/CE
MOQ	1000 Pcs

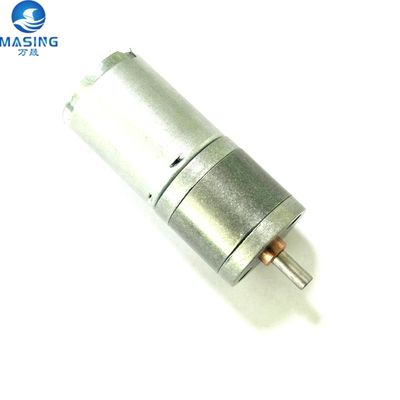

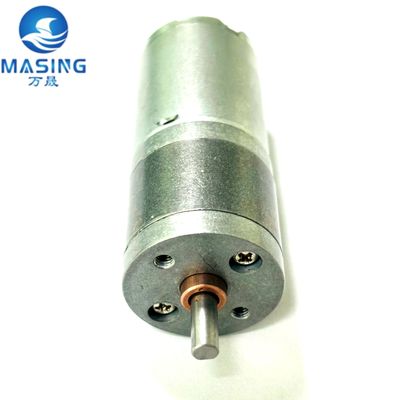

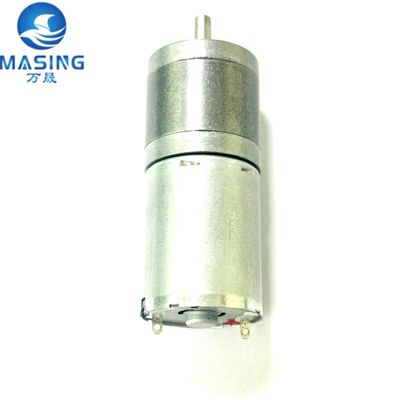

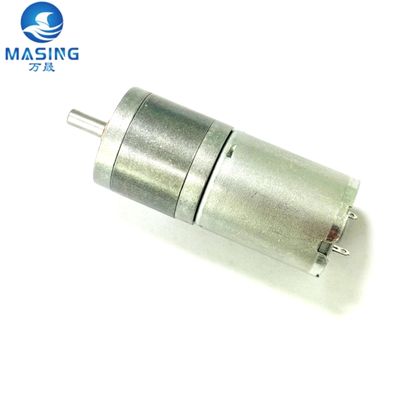

Product Photos

Technical Specifications

DC Spur Plastic Gearbox Motor Typical Applications:

Voltage, rated torque, speed, current, power and shaft size can be customized as required.

Packaging & Delivery

Packaging: Strong Carton 1000pcs/box, or as requested
Port: Shenzhen/Guangzhou/Shanghai
Selling Units: Single item
Package size: 12×10×24mm
Gross weight: 0.08kg

Supply Capacity

100,000 Piece/Pieces per Month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead time (days)	10	15	To be negotiated

Samples

Maximum order quantity: 1 piece
Sample price: $5/piece

Certifications

Applications

Textile machine, Smart garbage clamshell, Smart lock, electric valve, smart car, storage box, advertising equipment, electronic game console, shared charging pile, shredding machine, Home Appliance, robot, vending machine, medical device

Application Category	Examples
Medical Equipment	Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer
Business Machines	Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen
Electric Powered Equipment	Electric toothbrush, Electric tool, Adult erotica products, Electric toy car, Electric curtain
Smart Home	Intelligent window opener, Vacuum cleaner, Smart coffee machine, Hair drier, Fascia gun, Fan, Air cleaner, Hair removal device, Door lock, Intelligent door lock
Food and Beverage	Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers
Robotics	Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Convenying robot, Inspection robot

Frequently Asked Questions

Q1. Are you trading company or manufacturer?

A1: We are manufacturer. We currently produce Brushed DC Motors, Brushed DC Gear Motors, Planetary DC Gear Motors, Brushless DC Motors, Stepper motors etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.

Q2: How do you make sure motor quality?

A2: We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for the production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

Q3: I can't find a suitable motor on your website, can you customize the motor for me?

A3: Yes, we can customize a suitable motor according to our customer's requirements.

Q4: Do you have certificates for the motors?

A4: Yes, we have CE, Rohs, ISO, 16949, etc. If you have the other certificates requirement, we can apply it for you.

Q6: Do you have a customized service for your standard motors?

A6: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
