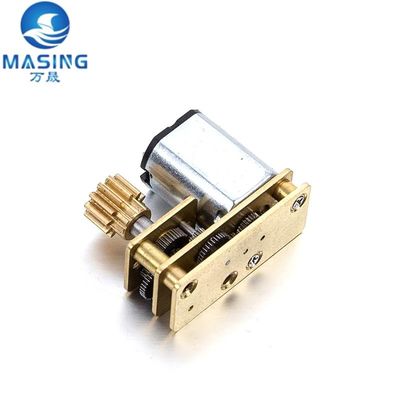

Brushed Miniature DC Gear Motor N20 12V 200 Rpm Micro Metal Gear Motor

Brushed Miniature DC Gear Motor N20 12V 200 Rpm Micro Metal Gear Motor

Brand Name:	Masing Motor
Model Number:	MSGM1224N20
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS CE ISO

Product Name:

12mm Dc Gear Motor

Shaft Type:

With A Hole ,M3,M4,Round,D-cut,Flat,Screw Ect

Support:

OEM & ODM

Gearbox Size:

φ12mm *24mm

Gear Ratio:

1:10-1:1000

Gearbox Materials:

Copper,steel Ect

Certificates:

16949 CE,ROHS,ISO

Usage:

Robotics ,locks ,vacuum Cleaner,New Energy Vehicle Charging Pile,sweeper Radioda

Shaft Diameter:

φ3mm

Motor Type:

FF-N10,FF-N20,FF-N30

Direction Of Motor:

Cw &ccw Available

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

Miniature DC Gear Motor

DC Gear Motor 12V 200 Rpm

N20 12V 200 Rpm Micro Metal Gear Motor

Product Description

Brushed Miniature DC Gear Motor N20 12V 200 RPM Micro Metal Gear Motor

Customized miniature gear motor designed for new energy vehicle charging pile applications and various industrial uses.

Product Specifications

Motor Model: MSGM1224N20
Gearbox Size: φ12×24mm
Compatible Motors: N20, N30, N10 permanent magnet DC motors
Voltage Range: DC 1.2V-12V
Speed Range: 5RPM-3000RPM
Reduction Ratios: 1:10 to 1:1000 or customized
Gearbox Materials: Copper, steel, etc.
Rotation: CW & CCW available
Shaft Diameter: φ3mm or custom
Weight: 10g
Noise Level: ≤55DB
Lifetime: 200-1000 hours

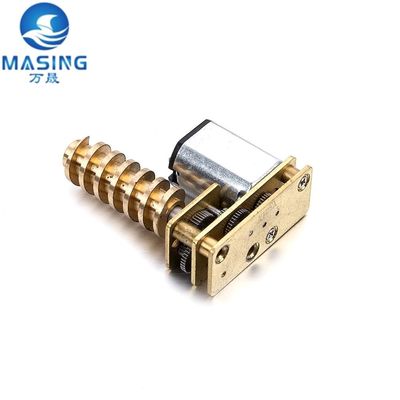

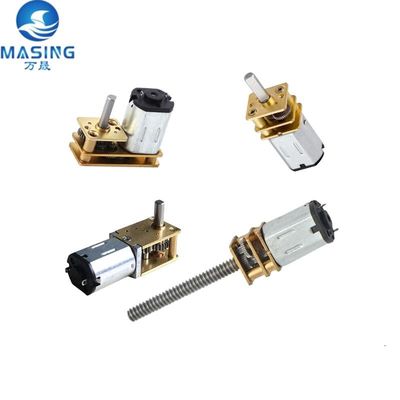

Shaft Types Available

Round Type: DIA 3mm, 4mm, 5mm
D-cut Type: DIA3-D2.5, DIA4-D3, etc.
Screw Type: M3, M4, M5 series
Trape Type, I-cut Type, and shaft with hole options

Applications

Vacuum cleaner, new energy vehicle charging pile, sweeper radio, robot, locks, locker lock, toys car, intelligent door locks, mopper, 3D printer, and various industrial automation applications.

Product Images

Technical Specifications

Typical applications include robotics, electronic locks, toy cars, 3D printers, automotive systems, home appliances, and smart home devices.

MODEL	VOLTAGE (V)	NO-LOAD SPEED (rpm)	NO-LOAD CURRENT (A)	MAX EFFICIENCY SPEED (rpm)	MAX EFFICIENCY CURRENT (A)	TORQUE (mNm)	GEAR RATIO
MS-12FN20-11	5	1854	0.054	1468	0.20	3.0	11
MS-12FN20-37	5	554	0.050	436	0.22	10.0	37
MS-12FN2060	5	410	0.050	323	0.22	13.6	50
MS-12FN20-97	5	211	0.060	166	0.22	26.3	97
MS-12FN20-117	5	175	0.058	138	0.25	31.8	117
MS-12FN20-150	5	137	0.058	108	0.25	40.7	150

Packaging & Delivery

Packaging: Strong carton, 1000pcs/box, or customized
Port: Shenzhen/Guangzhou/Shanghai
Single Package Size: 12×10×24mm
Single Gross Weight: 0.01kg
Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples & Certifications

Maximum Sample Order: 1 piece
Sample Price: $5/piece
Certifications: ISO 16949, CE, RoHS, EU standards

Factory & Applications

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A1: We are a manufacturer with 10 years of experience in producing micro motors.

Q2: How to confirm requirements before mass production?

A2: We provide samples according to your specifications, and mass production begins only after your confirmation.

Q3: Can you provide OEM or ODM service?

A3: Yes, OEM and ODM services are both available.

Q4: How do you guarantee product quality?

A4: We perform quality checks after each process and conduct 100% inspection before shipment.

Q5: What data do I need to provide for ordering?

A5: Please provide rated voltage, no load speed, load speed, load torque, and overall dimensions.

Q6: How are quality problems handled after sales?

A6: Send photos of the issues, and we will provide a satisfactory solution within three days after confirmation.
