RF300 12 Volt DC Gear Motor Rotating Desk Lamp With Permanent Magnet Plastic Gearbox

RF300 12 Volt DC Gear Motor Rotating Desk Lamp With Permanent Magnet Plastic Gearbox

Brand Name:	Masing Motor
Model Number:	MS32B300
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

16949 ROHS CE ISO

Product Name:

32mm Miniature DC Gear Motor

Shaft Diameter:

φ5mm Or Customized

Support Sevice:

OEM & ODM Customized

Motor Size:

φ24.4mm*12.3mm

Gearbox Size:

φ32mm Plastic Gear Box

Certificate:

16949,CE,ROHS,ISO

Usage:

Vacuum Cleaners, Robot Cleaners,Smart Home ,automatic Valve,Automation Equipment

Gears Material:

Steel ,copper ,plastic Ect

Direction Of Motor:

CW &CCW

Shaft Type:

Flat,D-cut ,Round,Double-cut Ect

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

12 Volt DC Gear Motor

RF300 Motor Rotating Desk Lamp

DC Gear Motor 12V

Product Description

RF300 12 Volt DC Gear Motor Rotating Desk Lamp With Permanent Magnet Plastic Gearbox

Product Overview

Compact 32mm DC gear motor designed for rotating desk lamps, featuring a permanent magnet plastic gearbox with customizable specifications for various applications.

Voltage range: DC 1.5V-24V
Speed: 10RPM-500RPM (proportional to voltage)
Rated torque: 0.1kgf.cm-3kgf.cm
Gearbox diameter: φ32mm
Materials: Plastic, Metal, or Customized
Compatible with RF-300CA, RF-310T, or RF-500TB micro DC motors

Technical Specifications

Attribute	Specification
Speed (RPM)	Customized
Continuous Current	10-300mA
Gearbox Shaft Diameter	φ5mm or Customized
Model Number	MS32B300
Gear Ratio	Customized
Direction	CW & CCW Available
Commutation	Brush
Noise Level	≤55DB
Weight	60g
Lifetime	300-1000 hours

Applications

Vacuum cleaners, robot cleaners, fans, smart home devices, automatic valves, automation equipment, robots, rotating desk lamps, automotive supplies, and various home appliances.

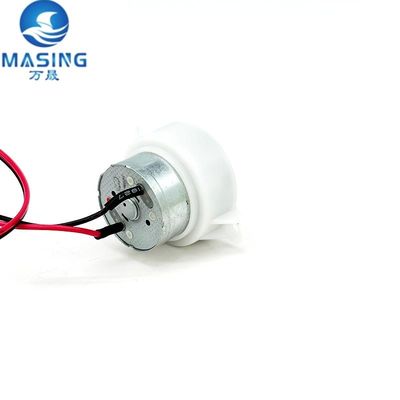

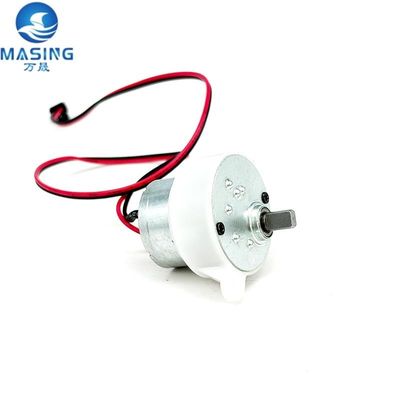

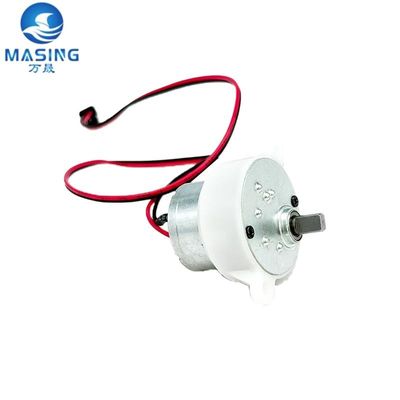

Product Images

Packaging & Delivery

Packaging: Strong Carton (250pcs/box) or customized
Port: Shenzhen/Guangzhou/Shanghai
Single Package Size: 12×10×24mm
Single Gross Weight: 0.060kg
Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples & Certifications

Samples: Maximum order quantity: 1 piece | Sample price: $5/piece

Certifications: 16949 CE RoHS EU ISO

Frequently Asked Questions

Q1. Can you send me your price list?

A1. Since we have hundreds of different products with varying specifications, we provide customized quotes within 24 hours of receiving your inquiry.

Q2. Can we test samples?

A2. Yes, we have R&D and Testing Center. Customized samples and freight are charged.

Q3. Can I visit your company?

A3. Yes, welcome to visit our company. Please notify us at least two weeks in advance to schedule your visit.

Q4. Why should you buy from us instead of other suppliers?

A4. We provide professional one-to-one motor customization and service. We work with world-renowned brands and maintain ISO9001:2008 quality management system with CE, RoHS, and 16949 certifications.

Q5. Can you provide OEM or ODM service?

A5. Yes, both OEM and ODM services are welcomed.

Q6. Do you accept customization?

A6. Yes, we have a strong design team ready to provide technical solutions for any customization requirements.
