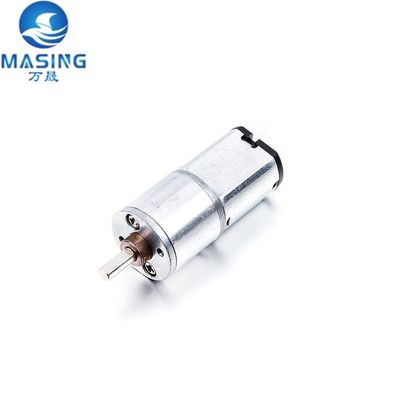

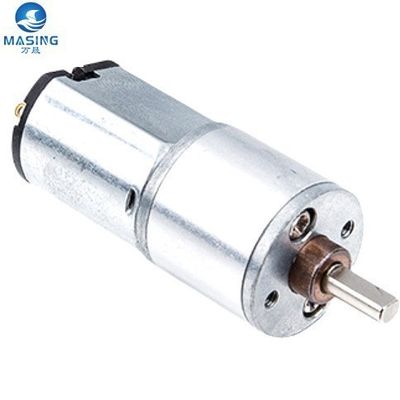

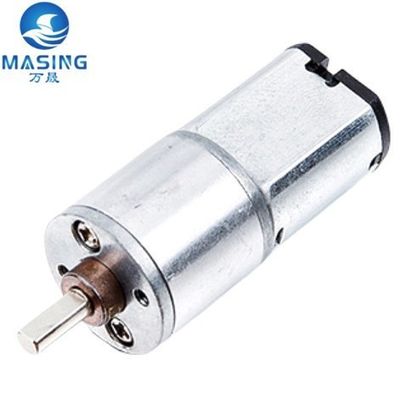

16mm Metal Gear DC Motor 3V 6V Spur Geared DC Motor 16A030 For Cabinet Lock

Name: 16mm Metal Gear DC Motor 3V 6V Spur Geared DC Motor 16A030 For Cabinet Lock
Brand: Masing Motor (Shenzhen) Co., Ltd
SKU: MSGM16A030
Price: Negotiable USD
Availability: InStock

Brand Name:	Masing Motor
Model Number:	MSGM16A030
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS CE ISO

Product Name:

16mm Small Dc Gear Motor

Dimension:

16mm Gearbox

Shaft Tyoe:

Round ,flat ,d-cut Ect

Certification:

ISO,RoHS,CE

Direction Of Rotation:

CW/CCW

Gearbox Material:

Metal ,copper ,steel

Gears:

Precision Metal Gear Motor

Applicationl:

Robot , Door Lock , Toy, Cabinet Lock

Power:

0.2-3.0W

Encoder:

Encoder Available

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

16mm Metal Gear DC Motor

Gear DC Motor 3V 6V

Spur Geared DC Motor

Product Description

16mm Metal Gear DC Motor 3V 6V Spur Geared DC Motor 16A030 For Cabinet Lock

Product Overview

High quality 16mm metal gear DC motor designed for cabinet locks and various industrial applications. Features precision metal gears, customizable specifications, and durable construction.

Technical Specifications

Voltage: DC 1.5V-24V (Customized)
Speed: 2RPM-3000RPM (Customized)
Output Power: 0.2W-5W (Customized)
Gearbox Diameter: Ø16mm
Gearbox Material: Metal
Gear Material: Precision Metal Gear
Reduction Ratio: 1:10-1:1000 (Customized)
Shaft Size: Ø3mm or Customized
Shaft Type: Bare / D-Cut / Double D-Cut / Pin Hole / Keyway (Customizable)
Shaft Material: Carbon Steel or Stainless Steel

Key Features

Special imported steel gears with minimum modulus (0.15 mode)
Ultra-low noise operation with high reliability
High anti-oxidation commutator and brush material
Smooth operation with long life up to 200,000 cycles
Small vibration and high torque output
Drip-proof design and permanent magnet construction
Resistant to water and dust for harsh environments
Meets EU environmental standards: low energy consumption, low noise

Key Attributes

Speed (RPM): 90rpm

Continuous Current: 0.02A

Efficiency: IE 1

Brand Name: Masing Motor

Model Number: MSGM16A030

Gearbox Material: Metal gearbox copper, steel

Gear Ratio: 1:15-1:1000

Construction: Permanent Magnet

Protect Feature: Totally Enclosed

Certificate: CE, Rohs, ISO

Power: approx 0.2W-3.0W

MOQ: 1000Pcs

Product Images

Technical Data

Applications

Electronic Door Lock, Smart Home Appliance, Smart Robot, Electric Toys, Robot, door lock, toy, cabinet lock, Home Appliance, vending machine, medical device

Packaging & Delivery

Packaging: Strong Carton 1000pcs/box, or as requested
Port: Shenzhen/Guangzhou/Shanghai
Single Package Size: 12×10×24mm
Single Gross Weight: 0.08kg

Supply & Lead Time

Supply Ability: 100,000 Piece/Pieces per Month

Quantity (pieces)	1 - 100	101 - 1000	> 1000
Lead Time (days)	10	15	To be negotiated

Samples

Maximum order quantity: 1 piece
Sample price: $5/piece

Certifications

Factory & Products

Detailed Applications

Medical Equipment: sphygmomanometer, massaging mattress, air pump, urine analyzer
Business Machines: intelligent robot, copiers and scanners, 3D printers, tattoo pen
Electric Powered Equipment: electric toothbrush, electric tool, adult erotica products, electric toy car, electric curtain
Smart Home: intelligent window opener, vacuum cleaner, smart coffee machine, hair dryer, fascia gun, fan, air cleaner, hair removal device, door lock, intelligent door lock
Food and Beverage: hand blenders, blenders, mixers, coffee machines, food processors, juicers, fryers, ice makers, soy bean milk makers
Robotics: servicing robotics, food delivery robot, reception robot, medical serving robot, AGV & AMR, conveying robot, inspection robot

Frequently Asked Questions

Q1. Are you factory?

A1: Yes, we are factory. Main products include micro geared motor, brushless DC motor, micro motor and planetary gear box.

Q2: How can you guarantee the quality?

A2: We have 100% finished product inspection before delivery and no defective products returned.

Q3: What's the minimum order quantity?

A3: Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use of motor orders.

Q4: Can I buy samples placing orders?

A4: Yes. Please feel free to contact us.

Q5: Do you have a customized service for your standard motors?

A5: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.

Q6: How do you make our business long-term and good relationship?

A6: a. We keep good quality and competitive price to ensure our customers benefit; b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
