DC 1.5V-24V Small DC Geared Motor 050 Brush Motor For Door Lock / Robot

DC 1.5V-24V Small DC Geared Motor 050 Brush Motor For Door Lock / Robot

Brand Name:	Masing Motor
Model Number:	MSGM13F050
MOQ:	1000
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100000piece/per month

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

ROHS CE ISO

Product Name:

13mm Small Geared Motor

Dimension:

13mm Gearbox

Gear Rate:

1:10 To 1:1000

Certification:

RoHS,CE,ISO.EU

Direction Of Rotation:

CW/CCW

Gear Materail:

Metal ,Steer ,copper ,powder Metallurgy

Gearbox Size:

13mm

Shaft Material:

Carbon Steel Or Stainless Steel

Speed:

3rpm~3000rpm

Motor Type:

13mm Mini Gear Motor

Packaging Details:

Carton box

Supply Ability:

100000piece/per month

Highlight:

24V Small DC Geared Motor

24V DC Geared Motor

24V Small DC Gear Motor

Product Description

DC 1.5V-24V Small DC Geared Motor 050 Brush Motor For Door Lock / Robot

Product Overview

DC Gear Motor 050 Brush Motor with 13mm gear box, designed for door lock systems and robotics applications.

Rated Voltage: DC 1.5V-24V (Customized)
Speed Range: 2rpm-3000rpm (Customized)
Power Output: 0.1W-5W (Customized)
Gearbox: 13×12mm, Copper and stainless steel materials
Compatible Motors: FF-030, FF-050, micro brushed DC motor
Gear Ratio: 1:10 to 1:1000 (Customizable)
Torque Range: 0.01kgf.cm-2kgf.cm
Output Bearing: Ball bearing / Sleeve bearing
Applications: Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME

Technical Specifications

Specification	Details
Speed (RPM)	2rpm-3000rpm
Continuous Current	10mA-300mA
Efficiency	65%
Warranty	3 Months / 1 Year
Place of Origin	Guangdong, China
Brand Name	Masing Motor
Model Number	MS13GM050
Gearbox Material	Steel or Copper Alloy
Gear Ratio	1:10-1:1000 ratio
Construction	Permanent Magnet
Rotation Direction	CW or CCW
Noise Level	≤55DB
Weight	20g
MOQ	1000Pcs
Certifications	CE, Rohs, EU, ISO

Shaft Types

Round Type: DIA 3mm, 4mm, 5mm
D-cut Type: DIA3-D2.5, DIA4-D3, etc.
Screw Type: M3, M4, M5 Serial
Trape/I-cut Type: DIA3-I2, DIA4-I3
Other Types: Shaft with hole, etc.

All shaft types can be customized according to user drawings.

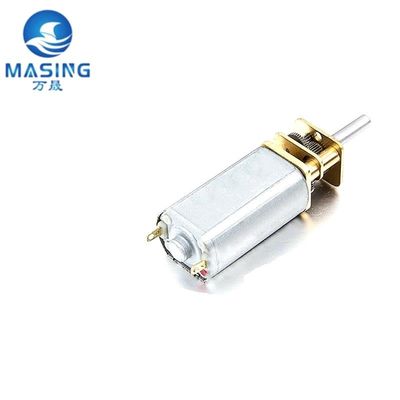

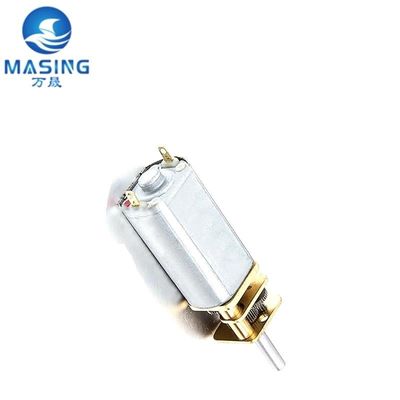

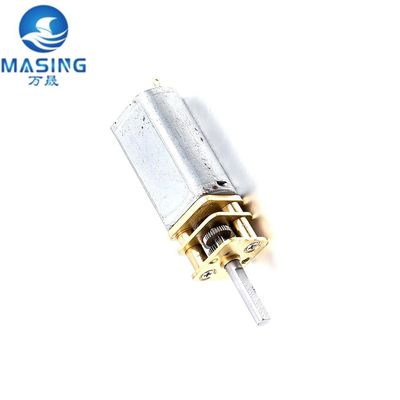

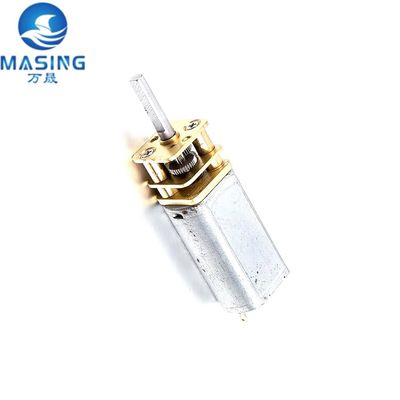

Product Images

Packaging & Delivery

Packaging: Strong Carton 1000pcs/box, or customized
Port: Shenzhen/Guangzhou/Shanghai
Selling Units: Single item
Package Size: 12×10×24mm
Gross Weight: 0.02kg
Supply Ability: 100,000 pieces per month

Lead Time

Quantity (pieces)	Lead Time (days)
1 - 100	10
101 - 1000	15
> 1000	To be negotiated

Samples

Maximum Order Quantity: 1 piece
Sample Price: $5/piece

Applications

Industry	Applications
Medical Equipment	Sphygmomanometer, Massaging mattress, Air pump, Urine Analyzer
Business Machines	Intelligent robot, Copiers and Scanners, 3D Printers, Tattoo pen
Electric Powered Equipment	Electric toothbrush, Electric tool, Adult products, Electric toy car, Electric curtain
Smart Home	Intelligent window opener, Vacuum cleaner, Smart coffee machine, Hair dryer, Fascia gun, Fan, Air cleaner, Hair removal device, Door lock, Intelligent door lock
Food and Beverage	Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers
Robotics	Servicing robotics, Food delivery robot, Reception robot, Medical serving robot, AGV & AMR, Conveying robot, Inspection robot

Factory & Certifications

Frequently Asked Questions

Q1: Are you a factory?

A1: Yes, we are a factory. Our main products include micro geared motors, brushless DC motors, DC motors, and planetary gear boxes.

Q2: Can you provide OEM or ODM service?

A2: Yes, OEM and ODM services are both welcomed.

Q3: Do you offer discounts?

A3: We are a factory and offer competitive pricing. For large quantities, we can negotiate pricing.

Q4: How about the quality of your products?

A4: We maintain high-quality standards and receive positive feedback from clients worldwide. Under guarantee, we provide immediate assistance and maintain product complaint records below 1%.

Q5: What data do I need to provide for ordering?

A5: Please provide your rated voltage, no load speed, load speed, load torque, and overall dimension requirements.

Q6: What certifications do you have?

A6: We currently hold CE, ISO, and RoHS certifications.
