DC Gear Motor Dc Motor With Gear Box 12v 60rpm Dc Gear Motor Low Rpm For Coffee Machine

DC Gear Motor Dc Motor With Gear Box 12v 60rpm Dc Gear Motor Low Rpm For Coffee Machine

Brand Name: Masing Motor
Model Number: MSGM37B5555
MOQ: 1000
Price: Negotiable
Payment Terms: T/T
Supply Ability: 100000piece/per month
Detail Information
Place of Origin:
China
Certification:
ROHS,CE,ISO
Product Name:
Dc Gear Motor 6v
Dimension:
37mm
Voltage:
3v-24v
Power:
Can Be Customized
Speed:
3rpm-3000rpm
Torque:
0.01NM-3NM
Bearing:
Ball Bearing / Sleeve Bearing
Gear Ratio:
1:5-1:1000
Type:
Dc Spur Geared Motor
Material:
RohS Metal
Packaging Details:
Carton box
Supply Ability:
100000piece/per month
Highlight:

60rpm dc gear motor low rpm

,

12v dc gear motor 300 rpm

,

12v dc gear motor low rpm

Product Description
DC Gear Motor 12V 60RPM with Gear Box for Coffee Machine
Product Overview

This DC gear motor features a 12V permanent magnet design with low RPM operation (60RPM), specifically suitable for coffee machines and various industrial applications.

  • Speed: 2RPM to 3000RPM (Customizable)
  • Voltage: DC 3V-24V (Customizable)
  • Shaft Diameter: 6mm with various customization options
  • Shaft Material: Carbon Steel or Stainless Steel
  • High Efficiency: 70% performance rating
  • Low Noise Operation with High Torque (0.1-30kgf.cm)
  • Totally Enclosed Design for Durability
Technical Specifications
  • Model Number: MSGM37B555
  • Type: 12V Permanent Magnet DC Gear Motor
  • Torque: 0.01NM-3NM
  • Construction: Permanent Magnet
  • Gearbox Diameter: 37mm
  • Gearbox Ratio: 1:5 to 1:1000
  • Gearbox Material: RoHS Metal
  • Bearing: Ball Bearing / Sleeve Bearing
  • Rotation: CW & CCW
  • Protection: Totally Enclosed
  • Certifications: CE, RoHS, ISO
Applications

Robot, Car, Electric Bicycle, Home Appliance, Cosmetic Instrument, SMART HOME, Electric Lock, Vending Machine, Medical Devices, Driverless Systems, Artificial Intelligence, Intelligent Transportation, Health Care, Smart City, Automotive Supplies, Security Monitoring, 5G Communication, Smart Home, Automatic Door Operators, and more.

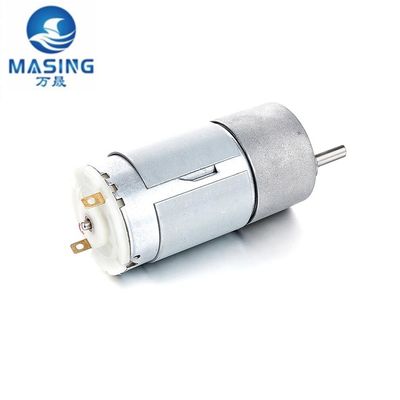

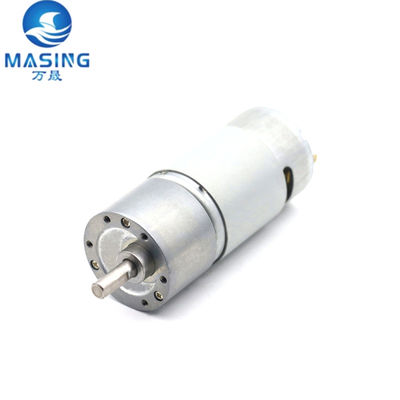

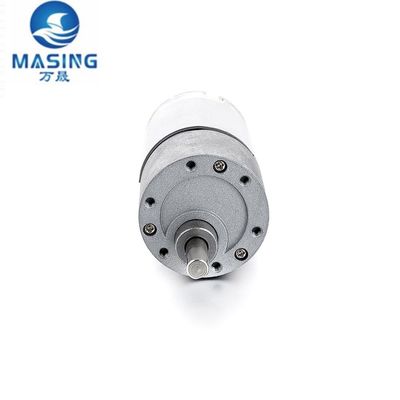

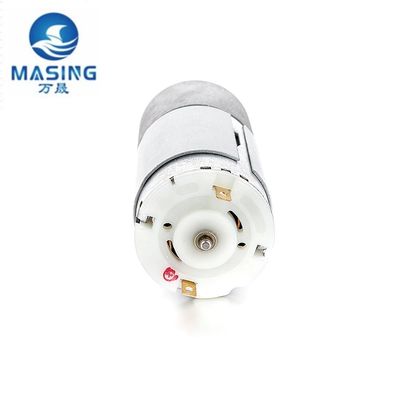

Product Images
DC Gear Motor  Dc Motor With Gear Box 12v 60rpm Dc Gear Motor Low Rpm For Coffee Machine 0 DC Gear Motor  Dc Motor With Gear Box 12v 60rpm Dc Gear Motor Low Rpm For Coffee Machine 1 DC Gear Motor  Dc Motor With Gear Box 12v 60rpm Dc Gear Motor Low Rpm For Coffee Machine 2 DC Gear Motor  Dc Motor With Gear Box 12v 60rpm Dc Gear Motor Low Rpm For Coffee Machine 3
Packaging & Delivery
  • Packaging: Strong Carton (80pcs/box) or Customized
  • Port: Shenzhen/Guangzhou/Shanghai
  • Unit: Single Item
  • Package Size: 37×27×24cm
  • Gross Weight: Approximately 300g
Supply & Lead Time

Supply Ability: 100,000 Pieces per Month

Quantity (pieces) 1 - 100 101 - 1000 > 1000
Lead Time (days) 10 15 To be negotiated
Samples & Certifications

Sample Price: $10/piece (Maximum order quantity: 1 piece)

DC Gear Motor  Dc Motor With Gear Box 12v 60rpm Dc Gear Motor Low Rpm For Coffee Machine 4 DC Gear Motor  Dc Motor With Gear Box 12v 60rpm Dc Gear Motor Low Rpm For Coffee Machine 5 DC Gear Motor  Dc Motor With Gear Box 12v 60rpm Dc Gear Motor Low Rpm For Coffee Machine 6 DC Gear Motor  Dc Motor With Gear Box 12v 60rpm Dc Gear Motor Low Rpm For Coffee Machine 7
Frequently Asked Questions
Q1: Can I have samples for testing first?
A1: Yes, definitely you can. After confirming the needed motor specifications, we will provide a proforma invoice for samples. Once payment is received, we will proceed with sample production.
Q2: What's the minimum order quantity?
A2: Our minimum order quantity depends on different motor models. We typically do not accept personal use motor orders.
Q3: Do you have a customized service for your standard motors?
A3: Yes, we can customize voltage, speed, torque, shaft size/shape, and add accessories like wires, connectors, capacitors, or EMC components.
Q4: Can you send me your price list?
A4: Due to hundreds of different products and varying specifications, we provide quotes within 24 hours upon receiving your inquiry.
Q5: How to confirm the payment?
A5: We accept T/T, PayPal, and other payment methods. A 30-50% deposit is required, with balance payment before shipping.
Q6: Can I visit your company?
A6: Yes, welcome to visit our company. Please notify us at least two weeks in advance to schedule your visit.
